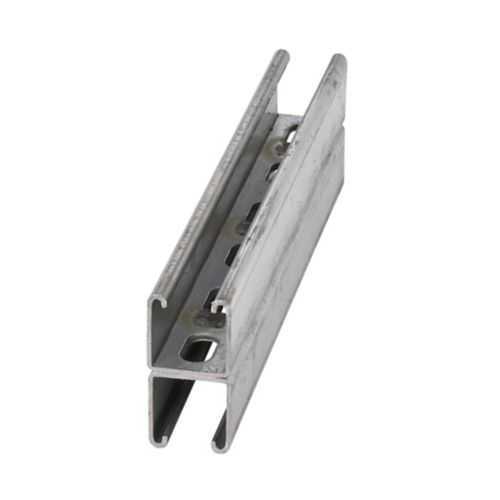

Eaton B22SHA-240SS6 Strut Channel - Stainless 316
Part Number: B22SHA-240SS6
Quick Summary
B22SHA-240SS6 is a stainless steel back-to-back welded strut channel for robust support and mounting. Facilities struggle with corrosion, weight, and alignment on long runs, which this channel helps mitigate. There are no listed certifications such as SIL, CE, or IP in the data, so confirm your project requirements with Eaton. Designed to pair with the B-Line system, it enables faster installations, standardized hardware, and predictable load performance for electrical, data, and mechanical installs. The combination of 316 stainless finish and a 240-inch length provides long service life in demanding environments, delivering measurable cost savings and lower maintenance.
Product Information
Extended Description
B22SHA-240SS6 Eaton: Eaton B-Line series strut back-to-back welded channel, 1.62" H x 240" L x 1.62" W, Steel, Stainless steel type 316, SHA, 12 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B22SHA-240SS6
UPC
782051300383
Product Length/Depth
240 in
Product Height
1.62 in
Product Width
1.62 in
Product Weight
72.8 lb
Certifications
Not Applicable
Channel type
B22
Hole pattern
SHA
Finish
Stainless steel type 316
Material
Steel
Material gauge
12 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B22SHA-240SS6
Dura-Green finish overview
Feature: 316 stainless steel finish offers superior corrosion resistance. Business Impact: extends service life and reduces maintenance costs in wash-down, humid, and outdoor environments. Application: outdoor equipment supports, chemical processing lines, and data-center enclosures where reliability matters. Feature: 240 inch length minimizes joints along long runs. Business Impact: fewer connection points cut installation time, reduce misalignment risk, and lower hardware needs. Application: long-span electrical and mechanical support in data centers, manufacturing floors, and service corridors. Feature: 12 gauge steel provides high stiffness and load-bearing capacity. Business Impact: supports heavy equipment and maintains a stable, uniform profile across spans. Application: mounting UPS, transformers, server racks, and large cable tray assemblies. Feature: SHA hole pattern enables flexible mounting positions. Business Impact: precise fastener placement and compatibility with common strut fittings simplify accessory selection. Application: adjustable brackets, clamps, and accessories in Eaton’s B-Line family. Feature: Back-to-back welded channel increases joint strength and alignment accuracy. Business Impact: improved torsional stiffness reduces wobble and simplifies multi-span installations. Application: long-span supports in industrial automation, manufacturing facilities, and data infrastructure. Feature: Compatibility with Eaton B-Line accessories and system components. Business Impact: streamlines procurement, minimizes part variety, and supports scalable installations. Application: end-to-end mechanical and electrical support in facilities with standardized mounting ecosystems.
Get a Quick Quote for a Eaton B22SHA-240SS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B22SHA-240SS6?
Enquire Now
FAQs
B22SHA-240SS6 is designed to work with Eaton's B-Line strut channel accessories. The SHA hole pattern supports standard fasteners and channel nuts, clamps, and brackets within the B-Line ecosystem, enabling a complete mounting solution without custom adapters. When planning, verify accessory compatibility with Eaton's catalog and ensure the accessory's load rating matches your installation requirements.
The 316 stainless finish provides superior corrosion resistance suitable for outdoor, wash-down, and chemical environments, reducing maintenance and replacement cycles. Exact load ratings depend on support conditions and mounting configurations; for precise structural calculations, refer to Eaton's specification sheet and perform site-specific engineering checks.
Yes. The 316 stainless steel construction offers excellent corrosion resistance, making it well-suited for outdoor installations, humid facilities, and wash-down areas common in manufacturing, data centers, and healthcare environments where durability is essential.
The provided data lists no certifications such as SIL, CE, or IP. If your project requires specific regulatory conformity, confirm with Eaton or your local compliance team to determine applicable standards and any additional testing or documentation needed for your installation.
The combination of 316 stainless steel, long 240 inch length, and a robust back-to-back welded design reduces the frequency of replacements and joint failures. While upfront material costs may be higher, the extended service life and lower maintenance downtime can deliver a favorable total cost of ownership, especially in corrosion-prone or high-demand industrial environments.
