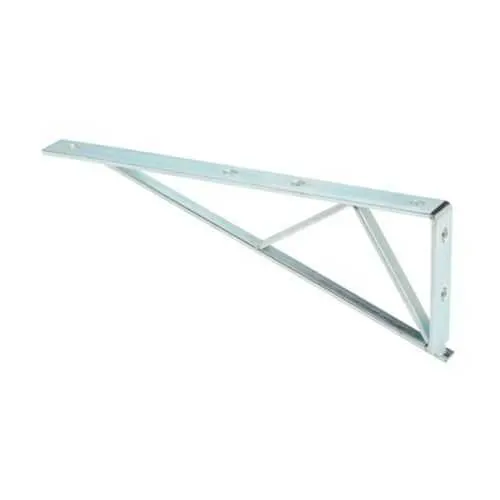

Eaton B291ZN Bracket - Electro-plated steel finish
Part Number: B291ZN
Quick Summary
The Eaton B-Line series bracket B291ZN provides a sturdy mounting component for commercial and industrial strut systems. It helps streamline installation and reduces misalignment that can slow field assembly. Certifications for this model are Not Applicable, so verify CE, SIL, or IP requirements against your project standards where applicable. The electro-plated steel finish offers durable corrosion resistance in electrical rooms and harsh environments, while the precise 18.5 in length, 6 in height, and 1.62 in width ensure predictable compatibility with standard channel hardware. With these attributes, you gain reliable support for mechanical and electrical assemblies, reducing downtime and maintenance costs, and enabling consistent performance across multiple projects.
Product Information
Extended Description
B291ZN Eaton: Eaton B-Line series bracket, 6" H x 18.5" L x 1.62" W, Steel, Electro-plated
Product Name
Eaton B-Line series bracket
Catalog Number
B291ZN
UPC
781011528232
Product Length/Depth
18.5 in
Product Height
6 in
Product Width
1.62 in
Product Weight
4.68 lb
Certifications
Not Applicable
Special features
4 holes 9/16 in diameter,(2) 9/16 In diameter
Type
Bracket
Finish
Electro-plated
Material
Steel
Feature: Robust steel construction with an electro-plated finish delivers excellent durability and corrosion resistance. Business Impact: Extends service life in demanding environments and lowers maintenance costs. Application: Ideal for electrical rooms and industrial installations using strut systems. Feature: Exact dimensions—18.5 in long, 6 in high, 1.62 in wide—with a weight of 4.68 lb. Business Impact: Predictable fit and stable load distribution across standard channels, reducing rework and installation time. Application: Mounting brackets for equipment racks and panels in data centers and factories. Feature: Four 9/16 in diameter holes plus two additional 9/16 in diameter holes offer mounting versatility. Business Impact: Flexible mounting patterns support multiple configurations and accessory integration, boosting installation speed. Application: Compatible with a wide range of strut fittings and hardware. Feature: Compatibility with Eaton B-Line strut systems provides seamless integration. Business Impact: Simplifies procurement and minimizes compatibility risk, enabling quicker project ramp-up. Application: Electrical and mechanical installations relying on standardized Eaton components. Feature: Electro-plated finish and steel construction address long-term maintenance concerns. Business Impact: Reduces corrosion-related downtime and extends service life in harsh environments. Application: High-reliability installations in industrial facilities and service rooms.
Get a Quick Quote for a Eaton B291ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B291ZN?
Enquire Now
FAQs
To install the B291ZN bracket, align the 9/16 inch mounting holes with the corresponding strut channel nuts or bolts, then secure using the appropriate fasteners for your system. Ensure the bracket is level and square to avoid misalignment, and tighten while maintaining load balance across the mounting points. This approach minimizes rework and supports reliable performance.
The B291ZN bracket measures 18.5 inches in length, 6 inches in height, and 1.62 inches in width, with a weight of 4.68 pounds. It is constructed from steel and features an electro-plated finish for corrosion resistance, making it suitable for demanding environments.
The B291ZN is designed for Eaton B-Line strut systems and standard channel hardware. While it aligns well with common strut patterns, always verify compatibility with specific channel dimensions and nuts from your supplier to ensure a proper fit and load performance.
This model is listed as Not Applicable for certifications in the provided data. Engineers should verify applicable CE, SIL, or IP requirements for their project standards and ensure that the bracket meets those specific regulatory needs through the project specification.
Using the B291ZN bracket offers faster installation, predictable fit, and robust corrosion resistance thanks to its electro-plated steel construction. These factors reduce field modifications, lower maintenance costs, and improve overall reliability across multiple projects, delivering a strong return on investment in industrial environments.
