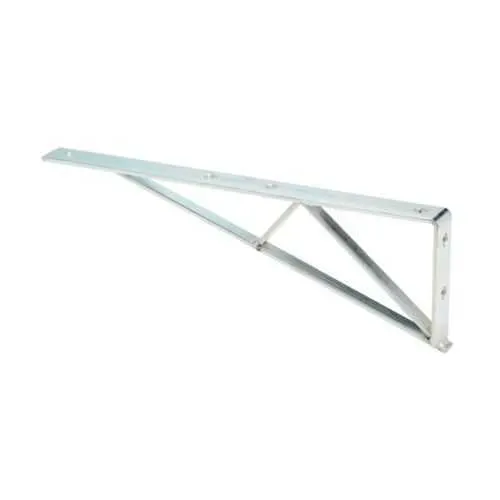

Eaton B292ZN Bracket - Electro-Plated Finish for B-Line
Part Number: B292ZN
Quick Summary
Eaton B292ZN Bracket is a steel mounting accessory designed to support channel and strut installations in electrical and data-center enclosures. When project timelines demand quick, error-free component selection, choosing compatible hardware reduces sourcing delays and field rework. Certification status shows Not Applicable for this model, but buyers should confirm UL, CE, or local regulatory requirements for their installations. Built for the B-Line system, it delivers reliable mounting with a corrosion-resistant electro-plated finish, helping you streamline procurement while maintaining service reliability. The combination of standard channel compatibility and durable steel makes it a practical, cost-efficient solution for industrial automation and electrical infrastructure.
Product Information
Extended Description
B292ZN Eaton: Eaton B-Line series bracket, 6" H x 20.5" L x 1.62" W, Steel, Electro-plated
Product Name
Eaton B-Line series bracket
Catalog Number
B292ZN
UPC
781011528331
Product Length/Depth
20.5 in
Product Height
6 in
Product Width
1.62 in
Product Weight
4.9 lb
Certifications
Not Applicable
Special features
4 holes 9/16 in diameter,(2) 9/16 In diameter
Type
Bracket
Finish
Electro-plated
Material
Steel
Channel Nuts and Hardware Catalog Section
Channel Nuts and Hardware Catalog Section
Eaton Specification Sheet - B292ZN
Feature: The bracket measures 6 in height, 20.5 in length, and 1.62 in width, constructed from steel with an electro-plated finish. Business Impact: This standardized footprint fits common strut channel systems and resists rust, reducing rework and maintenance. Application: Ideal for mounting enclosures, panels, and accessories along B-Line channel runs in industrial facilities. Feature: Four 9/16 in diameter holes. Business Impact: Provides flexible fastener options and balanced load distribution across the bracket. Application: Used to attach accessories or cross-members in electrical racks and cable-tray assemblies. Feature: Weight 4.9 lb. Business Impact: Lightweight enough for easy handling during installation yet sturdy for long-term support. Application: Field installs in data centers and manufacturing plants. Feature: Finish Electro-plated; Material Steel. Business Impact: Corrosion protection enhances life in hostile environments, lowering lifecycle costs. Application: Outdoor or humid plant environments where contact with metalwork is common. Feature: Compatibility with B-Line series. Business Impact: Streamlines procurement and reduces compatibility risks with other Eaton components. Application: Systems integration with Eaton channel nuts, strut fittings, and accessories.
Get a Quick Quote for a Eaton B292ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B292ZN?
Enquire Now
FAQs
For proper installation, align the four 9/16 in diameter holes with existing channel nuts and fasteners, ensuring the bracket sits squarely along the run. Verify overall length and height (20.5 in × 6 in) fit within your rack or enclosure footprint, then secure with standard hardware compatible with steel strut channels. Use level checks to prevent misalignment and ensure cable tray or accessory mounting points remain accessible.
The four 9/16 in holes provide multiple fastening points, allowing even load distribution across the bracket and reducing concentrated stress at a single anchor. This design supports balanced mounting of components along B-Line channels, enhancing stability for panels, enclosures, and attached hardware while accommodating slight variances in channel alignment.
Industries leveraging B-Line channel systems in electrical, data-center, and industrial automation environments gain from the B292ZN. It suits mounting cable trays, panel assemblies, and accessory channels in environments requiring corrosion resistance and dependable mechanical support, including manufacturing floors, facility electrical rooms, and greenfield data-center builds where modular channel infrastructure is standard.
The product data lists certifications as Not Applicable. For regulated projects, verify with your compliance team whether UL, CE, or region-specific standards apply. While the bracket itself follows standard steel and electro-plated construction practices, project-specific approvals may require additional documentation or testing aligned to your facility regulations.
The electro-plated steel construction offers enhanced corrosion resistance, reducing maintenance needs in humid or harsh environments. Its durable build minimizes replacement frequency, while compatibility with the B-Line ecosystem simplifies parts stocking. Over time, this can lower lifecycle costs, shorten installation cycles, and improve overall system reliability in industrial and data-center applications.
