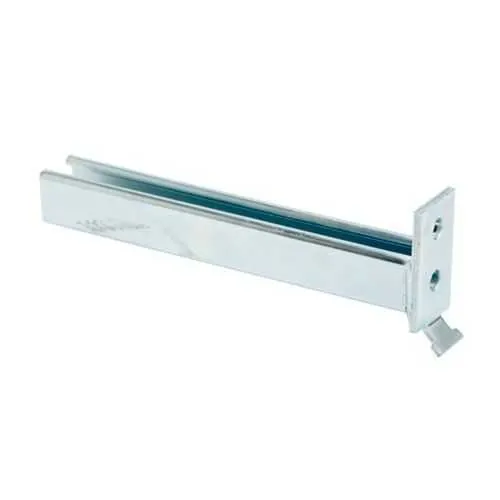

Eaton B293-12GRN Bracket - 3.5 in H
Part Number: B293-12GRN
Quick Summary
The Eaton B293-12GRN Bracket provides robust steel mounting for B-Line strut channel systems in electrical installations. This bracket helps prevent misalignment during assembly, reducing installation time and retrofit costs for existing support structures. Note: Certifications are Not Applicable for this part, so refer to the Eaton specifications for your compliance needs. Designed with a DURA GREEN finish, it delivers corrosion resistance in typical industrial environments while maintaining compatibility with standard B-Line channel fittings. For engineers and procurement specialists, the combination of material strength and familiar form factor translates to lower part variety and streamlined sourcing, supporting faster project turnarounds and consistent performance across installations.
Product Information
Extended Description
B293-12GRN Eaton: Eaton B-Line series bracket, 3.5" H x 12" L x 1.62" W, Steel, DURA GREEN, Bracket, channel opening upward
Product Name
Eaton B-Line series bracket
Catalog Number
B293-12GRN
UPC
781011528621
Product Length/Depth
12 in
Product Height
3.5 in
Product Width
1.62 in
Product Weight
2.52 lb
Certifications
Not Applicable
Special features
Number of mounting holes (1) 9/16 in diameter
Type
Bracket, channel opening upward
Finish
DURA GREEN
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B293-12GRN
Feature The bracket is made from steel with a DURA GREEN finish. Business Impact This combination provides enhanced durability and corrosion resistance, reducing maintenance cycles in steel-framed installations and outdoor environments. Application The bracket is well suited for long-term support in electrical and mechanical assemblies using Eaton B-Line strut systems. Feature The product dimensions are 3.5 in height, 12 in length, and 1.62 in width. Business Impact The defined footprint ensures predictable load paths and compatibility with standard strut channels, minimizing custom fabrication and enabling rapid installs. Application Ideal for tight spaces and modular rack or enclosure mounting scenarios. Feature Channel opening upward. Business Impact Upward-opening design simplifies mounting alignment and load orientation, speeding assembly and improving mounting accuracy. Application Useful in ceiling or overhead support where gravity assists component placement. Feature Number of mounting holes: 1 at 9/16 in diameter. Business Impact Provides a secure attachment point while preserving channel access for nuts and bolts, lowering rework risk. Application Suitable for single-point supports in compact installations. Feature Finish and material: steel with DURA GREEN. Business Impact Delivers a durable, corrosion-resistant surface that extends service life in demanding environments, lowering replacement costs. Application Compatible with standard steel strut channels and connector hardware in B-Line systems. Feature Compatibility: Eaton B-Line series. Business Impact Ensures seamless integration with existing Eaton strut components, reducing compatibility issues and spare-part complexity. Application Ideal for multi-brand facilities consolidating under the Eaton B-Line framework.
Get a Quick Quote for a Eaton B293-12GRN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B293-12GRN?
Enquire Now
FAQs
The B293-12GRN is designed for standard B-Line channels and uses a single 9/16 in mounting hole. Align the bracket with the channel, insert the appropriate fastener into the hole, and secure to the channel nut or attached hardware per Eaton’s Strut Fittings guidelines. The upward channel opening assists with initial placement, reducing misalignment during assembly.
Key specs are 3.5 in height, 12 in length, 1.62 in width, and a 2.52 lb weight, made from steel with a DURA GREEN finish. These dimensions provide a predictable mounting footprint for mid-span support, while the steel construction ensures adequate load-bearing capacity within typical strut channel assemblies used in electrical and mechanical installations.
The bracket uses a DURA GREEN finish on steel, delivering corrosion resistance suitable for many industrial environments. However, there are no explicit IP or weather-sealing ratings documented for this part, so for outdoor or highly corrosive applications, verify with Eaton specifications and consider additional enclosure protection or environmental controls as needed.
According to the available data, certifications are Not Applicable for this part. For project-specific regulatory needs, consult the Eaton specification sheets and your facility’s compliance requirements, as some applications may require additional third-party approvals or client-specific qualifications.
Using the B293-12GRN promotes standardization with Eaton’s B-Line system, reducing part variety and simplifying procurement. Its steel construction with DURA GREEN finish lowers maintenance costs by resisting corrosion, while the compatible design minimizes installation time, resulting in shorter project durations and improved system reliability.
