Eaton B293-12HDG Bracket - Hot-Dipped Galvanized
Part Number: B293-12HDG
Quick Summary
The Eaton B293-12HDG bracket is a steel support accessory for B-Line channel systems used in electrical installations. Installers often wrestle with misaligned mounts, corrosion risk, and slow on-site assembly in crowded equipment rooms. While certifications like SIL, CE, or IP are not applicable for this bracket, the hot-dipped galvanized finish delivers durable corrosion resistance in harsh environments. Used in commercial and industrial plants, it supports reliable mounting of strut runs and equipment like panels, cable trays, and branch circuits, helping teams reduce rework and downtime while maintaining a clean, compliant installation. Its compatibility with Eaton B-Line systems also supports scalable, repeatable mounting across multi-building facilities.
Product Information
Extended Description

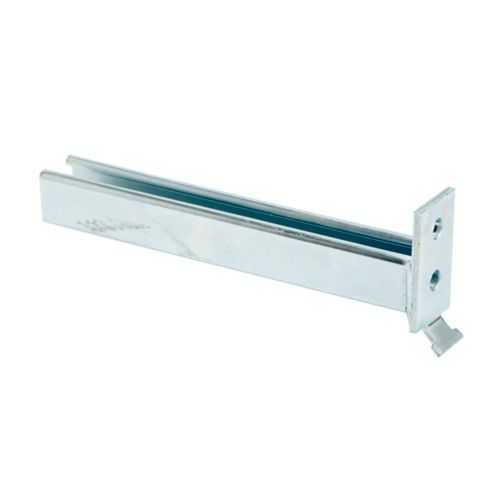

B293-12HDG Eaton: Eaton B-Line series bracket, 3.5" H x 12" L x 1.62" W, Steel, Hot-dipped galvanized, Bracket, channel opening upward
Product Name
Eaton B-Line series bracket
Catalog Number
B293-12HDG
UPC
781011528645
Product Length/Depth
12 in
Product Height
3.5 in
Product Width
1.62 in
Product Weight
2.52 lb
Certifications
Not Applicable
Special features
Number of mounting holes (1) 9/16 in diameter
Type
Bracket, channel opening upward
Finish
Hot-dipped galvanized
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B293-12HDG
Feature: Steel construction with a hot-dipped galvanized finish. Business Impact: Provides durable corrosion resistance and long service life in harsh environments, reducing maintenance costs and downtime. Application: Ideal for industrial and outdoor installations where moisture and contaminants are present, such as manufacturing floors and outdoor equipment enclosures. Feature: Dimensions 3.5 in height x 12 in length x 1.62 in width with a 2.52 lb weight. Business Impact: Delivers strong load support while remaining lightweight for quick handling and installation. Application: Suitable for mid-span supports in B-Line strut channels and cable tray assemblies. Feature: Channel opening upward orientation. Business Impact: Improves load alignment and simplifies mounting of components like panels and electrical gear. Application: Used for vertical mounting runs and upward-facing channel connections in compact retrofit projects. Feature: Mounting hole 9/16 in diameter (one hole). Business Impact: Reduces hardware count and speeds setup, enabling faster commissioning and fewer errors. Application: Beneficial for single-point anchoring in tight installations where precise alignment is essential. Feature: Material/finish steel with hot-dipped galvanization. Business Impact: Combines mechanical strength with corrosion protection, ensuring reliability in damp or industrial environments. Application: Compatible with a wide range of Eaton B-Line strut system components, offering scalable, repeatable installations. Feature: Catalog and dimensions aligned with Strut Fittings Catalog Section and Specification Sheet. Business Impact: Streamlines procurement and engineering workflows with consistent data and easy access to supporting documentation. Application: Helps engineers verify fitment and compliance during system design and field deployment.
Get a Quick Quote for a Eaton B293-12HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B293-12HDG?
Enquire Now
FAQs
The B293-12HDG is designed for use with Eaton B-Line strut channel systems. Its channel opening upward and standard 9/16 inch mounting hole alignment ensure reliable fits with typical B-Line components like brackets, channel nuts, and hardware. This compatibility supports quick setup, consistent load paths, and scalable mounting across multiple panels or racks.
This bracket measures 12 inches in length, 3.5 inches in height, and 1.62 inches in width, with a weight of 2.52 pounds. It features a single 9/16 inch mounting hole. These specs help with accurate clearance calculations, load assessments, and budgeting for hardware and space in ceilings, racks, or wall-mounted enclosures.
Yes, the B293-12HDG uses hot-dipped galvanized steel, which provides enhanced corrosion resistance suitable for damp or outdoor environments. While there are no additional weatherproof ratings listed, the galvanization helps extend service life in challenging facilities, reducing maintenance intervals and replacement costs in exposed locations.
According to the data, Certifications are Not Applicable for this specific bracket. Nonetheless, its galvanic coating and steel construction align with common industry best practices for durable electrical support hardware, and it integrates smoothly with standard Eaton B-Line components to support compliant, repeatable installations.
Plan to use the upward-facing channel orientation for easy alignment with adjacent components. Start with the mounting hole first to establish a reference line, then secure the bracket with compatible hardware. Verify that the bracket sits flush against the channel and that loads are evenly distributed. Using pre-assembled Eaton fittings or quick-connect hardware can further cut install time.
