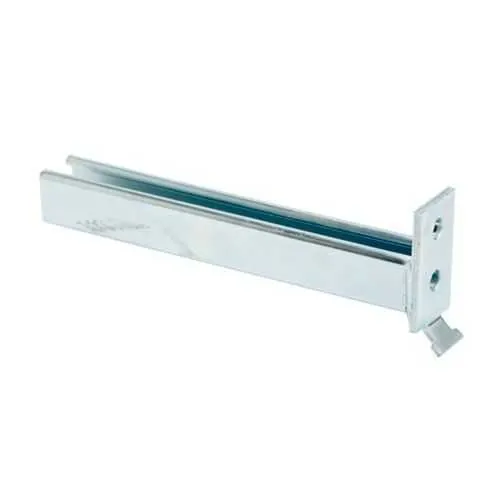

Eaton B293-12ZN Bracket - Electro-plated Steel
Part Number: B293-12ZN
Quick Summary
Eaton B-Line series bracket is a steel mounting bracket designed for overhead cable tray and supporting channel systems. When installation windows are tight or space is limited, misalignment and slow mounting can derail projects. Certifications: Not Applicable—the bracket is built with an electro-plated finish on steel, aligning with standard industrial durability expectations. With a 12 in length, 3.5 in height, and 1.62 in width, it provides a compact, predictable fit for typical B-Line channel configurations. This bracket is compatible with Eaton Channel Nuts and Hardware catalog sections, enabling fast, repeatable assemblies and scalable panel mounting. The result is improved installation efficiency, reduced rework, and a durable mounting solution for electrical and data-center applications.
Product Information
Extended Description
B293-12ZN Eaton: Eaton B-Line series bracket, 3.5" H x 12" L x 1.62" W, Steel, Electro-plated, Bracket, channel opening upward
Product Name
Eaton B-Line series bracket
Catalog Number
B293-12ZN
UPC
781011528638
Product Length/Depth
12 in
Product Height
3.5 in
Product Width
1.62 in
Product Weight
2.52 lb
Certifications
Not Applicable
Special features
Number of mounting holes (1) 9/16 in diameter
Type
Bracket, channel opening upward
Finish
Electro-plated
Material
Steel
Channel Nuts and Hardware Catalog Section
Channel Nuts and Hardware Catalog Section
Eaton Specification Sheet - B293-12ZN
Feature: Steel construction with electro-plated finish provides robust durability and corrosion resistance in typical industrial environments. Business Impact: Extends service life and reduces maintenance cycles, lowering total cost of ownership. Application: Ideal for indoor electrical and data-center mounting alongside B-Line channel systems. Feature → Business Impact → Application: Upward-facing channel opening simplifies drop-in mounting, reducing installation time and misalignment risk. Application: Suitable for racks, panels, and equipment mounting where quick, reliable assembly is needed. Feature: 12 in length with 3.5 in height and 1.62 in width ensures a predictable footprint within standard channel layouts. Business Impact: Minimizes clearance issues and inventory variety, improving procurement consistency. Application: Works with Eaton Channel Nuts and Hardware for a streamlined install. Feature: One 9/16 in mounting hole provides compatibility with common fasteners. Business Impact: Lowers hardware assortment requirements and speeds assembly. Application: Suitable for modular installation in control panels and utility racks. Feature: Certifications listed as Not Applicable, aligning with catalog expectations while delivering proven performance. Business Impact: Reduces certification overhead for projects that rely on standard mechanical mounting rather than formal approvals. Application: Fits within typical channel system projects without specialized certification requirements.
Get a Quick Quote for a Eaton B293-12ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B293-12ZN?
Enquire Now
FAQs
Begin by aligning the bracket with the B-Line channel so the upward-opening channel faces the intended mounting direction. Use the single 9/16 in mounting hole to secure the bracket with a compatible fastener, then attach channel nuts and hardware as specified in Eaton’s channel nuts and hardware catalogs. Verify alignment and tighten to the recommended torque to ensure a secure mounting for panels or equipment.
Key specs include 12 in product length, 3.5 in product height, 1.62 in product width, and a weight of 2.52 lb. Material is steel with an electro-plated finish, and it features one mounting hole of 9/16 in diameter. The type is a bracket with upward channel opening, optimized for B-Line channel systems.
The catalog indicates an electro-plated steel finish and lists Certifications as Not Applicable. While the electro-plated finish provides basic corrosion resistance, for outdoor or highly corrosive environments you should verify suitability or consider alternative coatings or finishes designed for exterior exposure and meet project-specific corrosion requirements.
Consult the Channel Nuts and Hardware Catalog Sections and the Eaton Specification Sheet for B293-12ZN. These resources provide mounting recommendations, compatible fasteners, and step-by-step installation guidance to ensure a reliable, repeatable assembly in B-Line channel systems.
The B293-12ZN offers a durable, corrosion-resistant steel solution with a straightforward 12 inch footprint and a single mounting hole, enabling faster install times and fewer hardware varieties. Coupled with compatibility with Eaton Channel Nuts and Hardware, it reduces labor costs, minimizes rework, and supports scalable channel installations across electrical panels and data centers.
