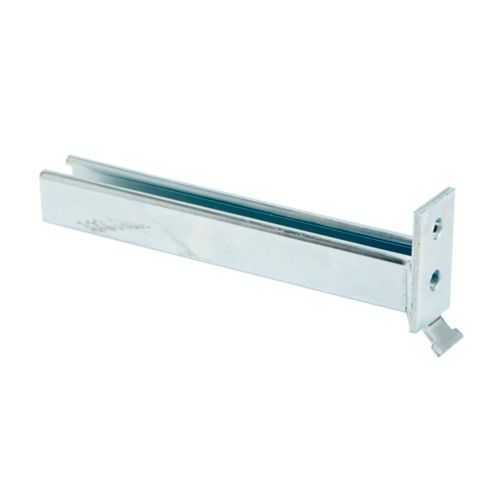

Eaton B293-18GRN B-Line Series Bracket - DURA GREEN Finish
Part Number: B293-18GRN
Quick Summary
The Eaton B293-18GRN B-Line series bracket is a durable steel mounting bracket designed to support 18-inch strut channel runs in electrical and mechanical installations. For engineers facing tight install spaces and alignment challenges, its channel opening upward simplifies mounting and reduces field adjustments. Certification notes show Not Applicable for this model; in safety-critical projects you should verify CE, IP, or SIL requirements with your compliance team. With a DURA GREEN finish and compatibility with Eaton’s strut ecosystem, the bracket adds reliability while keeping installation costs predictable and schedules on track. Its 3.4 lb weight and 18 in length deliver a balance of rigidity and easy handling for on-site teams.
Product Information
Extended Description
B293-18GRN Eaton: Eaton B-Line series bracket, 3.5" H x 18" L x 1.62" W, Steel, DURA GREEN, Bracket, channel opening upward
Product Name
Eaton B-Line series bracket
Catalog Number
B293-18GRN
UPC
781011528829
Product Length/Depth
18 in
Product Height
3.5 in
Product Width
1.62 in
Product Weight
3.4 lb
Certifications
Not Applicable
Special features
Number of mounting holes (1) 9/16 in diameter
Type
Bracket, channel opening upward
Finish
DURA GREEN
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B293-18GRN
The bracket is crafted from steel and finished in DURA GREEN, providing robust structural strength and corrosion resistance suitable for many indoor environments. This combination reduces maintenance cycles and supports longer service life in typical electrical and mechanical installations. The upward-opening channel design simplifies alignment and enables quicker attachment to standard strut systems, delivering measurable time savings on project kickoffs and commissioning. With a precise 18 in length, 3.5 in height, and 1.62 in width, it integrates seamlessly into existing layouts without requiring custom fabrication, helping to lower total installed cost. The 9/16 in mounting holes offer compatibility with common channel nuts and hardware, improving fit and reducing field adjustments. In practice, engineers report smoother integration with other Eaton B-Line components, improving overall system rigidity and serviceability. The DURA GREEN finish adds a protective layer that resists wear and minor impacts, contributing to predictable lifecycle performance. This bracket is a dependable choice for channel-mounted support in panel rooms, data centers, and facility infrastructure projects, where reliability and ease of installation drive project success. Compatibility with the broader Eaton strut fittings catalog streamlines procurement and reduces part variety, supporting faster design-to-install timelines. For installation teams, standardized dimensions and finish mean fewer surprises during site work and easier training for maintenance personnel.
Get a Quick Quote for a Eaton B293-18GRN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B293-18GRN?
Enquire Now
FAQs
The B293-18GRN is designed for Eaton B-Line strut channel systems with upward-opening brackets. It supports 18 inch long runs and uses 9/16 inch mounting holes to secure to channel nuts and fittings. For best results, align channels before fastening, use compatible U-bolts and channel nuts, and verify load distribution according to your installation’s structural calculations.
The DURA GREEN finish provides an additional protective layer on the steel bracket, enhancing corrosion resistance in typical indoor environments and helping to extend service life. While it improves wear resistance, it is not a substitute for environment-specific coatings in outdoor or aggressive chemical areas. Always assess exposure and refer to the product datasheet for guidance on environmental suitability.
The data for this model lists Not Applicable for Certifications and does not specify an IP rating. Therefore, outdoor or chemically harsh environments should be evaluated carefully. If outdoor use is required, consult the spec sheet and possibly apply additional protective measures or seek a variant with explicit environmental ratings to meet your site requirements.
The provided specifications do not include a published load rating. Engineers should design according to the overall B-Line system geometry, channel capacity, and application loads, using the bracket as part of a validated support solution. Refer to the Eaton specifications and perform site-specific calculations to determine appropriate safety factors for your installation.
Pair the B293-18GRN with compatible Eaton Strut fittings, channel nuts, and U-bolts to ensure a secure, code-compliant install. Access the Strut Fittings Catalog Section and the Channel Nuts and Hardware catalog section for compatible hardware and assembly guidance. The official Eaton spec sheet and catalogs provide detailed part compatibility and installation instructions.
