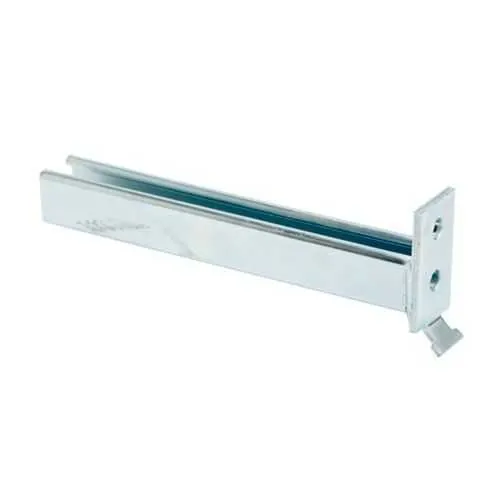

Eaton B293-24HDG Bracket - Hot-Dipped Galvanized
Part Number: B293-24HDG
Quick Summary
The Eaton B293-24HDG Bracket is a versatile support for channel systems in electrical installations. It helps engineers secure strut and fixture assemblies with a robust, corrosion-resistant base. While many brackets struggle with moisture and maintenance in harsh environments, this hot-dipped galvanized steel solution delivers lasting protection. Certifications for this part are Not Applicable, yet its finish and geometry align with standard B-Line system needs. By combining durable construction with Eaton compatibility, it enables faster installs, lower maintenance, and scalable configurations for data centers, control rooms, and industrial facilities.
Product Information
Extended Description
B293-24HDG Eaton: Eaton B-Line series bracket, 3.5" H x 24" L x 1.62" W, Steel, Hot-dipped galvanized
Product Name
Eaton B-Line series bracket
Catalog Number
B293-24HDG
UPC
781011529048
Product Length/Depth
24 in
Product Height
3.5 in
Product Width
1.62 in
Product Weight
4.12 lb
Certifications
Not Applicable
Special features
Number of mounting holes (1) 9/16 in diameter
Type
Bracket, channel opening upward
Finish
Hot-dipped galvanized
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B293-24HDG
Durable hot-dipped galvanized steel provides excellent corrosion resistance, reducing maintenance costs and extending service life in indoor and outdoor environments. This translates to fewer replacements and lower total cost of ownership for long-term data center and factory applications. The bracket’s 24 inch length with a 3.5 inch height and 1.62 inch width offers ample mounting surface for cable trays, panels, and accessories, improving routing efficiency and reducing installation time for electricians and integrators. A single 9/16 inch mounting hole adds flexible attachment options, enabling quick field adjustments and compatibility with standard hardware commonly used in Eaton B-Line strut systems. The upward channel opening design enhances secure attachment of channels and components, minimizing movement and vibration in dynamic industrial settings. Together, these features support faster project delivery, improved system rigidity, and streamlined maintenance for commercial and industrial electrical installations.
Get a Quick Quote for a Eaton B293-24HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B293-24HDG?
Enquire Now
FAQs
The B293-24HDG is designed for Eaton B-Line channel systems, ensuring precise fit and reliable mounting. Its upward channel opening and 9/16 in mounting hole align with common B-Line hardware, enabling straightforward integration with existing strut components and reducing field modification time.
Key specs include a 24 in length, 3.5 in height, 1.62 in width, and a weight of 4.12 lb. These dimensions provide ample mounting surface for trays and fixtures while maintaining manageable handling and installation in tight spaces.
Yes. The bracket is made from steel with a hot-dipped galvanized finish, delivering superior corrosion resistance suitable for both indoor and outdoor environments where moisture exposure is a concern.
Ensure compatible fasteners and channel hardware are used for a secure fit. With a single 9/16 in hole, plan for precise alignment with existing support structures and verify the load path to prevent misalignment during service.
Hot-dipped galvanizing significantly enhances corrosion resistance, reducing maintenance frequency and extending service life in challenging environments. This translates to lower replacement costs and improved reliability for critical electrical and data center installations.
