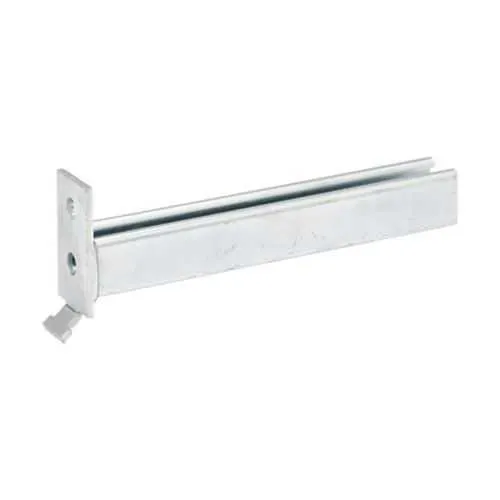

Eaton B293A-12HDG Bracket - Hot-Dipped Galvanized
Part Number: B293A-12HDG
Quick Summary
Eaton B293A-12HDG Bracket helps secure strut channel supports in equipment racks and electrical enclosures. For engineers facing tight installation schedules, locating a durable, corrosion-resistant mounting solution that fits standard channel profiles can be a bottleneck. Certifications for this bracket are listed as Not Applicable, with its hot-dipped galvanized steel construction delivering robust corrosion resistance; always verify project-specific regulatory needs with Eaton datasheets. Designed to integrate with the Eaton B-Line series, this bracket enables straightforward mounting and predictable performance, helping teams reduce installation time and lifecycle costs while delivering reliable support for cables, devices, and mounting hardware. In practice, it supports cost-efficient, scalable installations across commercial and industrial facilities.
Product Information
Extended Description
B293A-12HDG Eaton: Eaton B-Line series bracket, 3.5" H x 12" L x 1.62" W, Steel, Hot-dipped galvanized, Bracket, channel opening downward
Product Name
Eaton B-Line series bracket
Catalog Number
B293A-12HDG
UPC
781011528744
Product Length/Depth
12 in
Product Height
3.5 in
Product Width
1.62 in
Product Weight
2.52 lb
Certifications
Not Applicable
Special features
Number of mounting holes (1) 9/16 in diameter
Type
Bracket, channel opening downward
Finish
Hot-dipped galvanized
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B293A-12HDG
Feature: Hot-dipped galvanized steel construction → Business impact: Delivers superior corrosion resistance and extended service life in typical indoor and semi-exposed environments, reducing maintenance and replacement costs. Application: Ideal for strut channel installations in electrical rooms and chemical plants where moisture exposure is possible. Feature: Downward-opening channel design → Business impact: Simplifies cable routing and equipment mounting, minimizes clearance issues, and improves load stability. Application: Used on standard strut channels to maintain clean pathways for cables and conduits. Feature: Precise dimensions (12 in L x 3.5 in H x 1.62 in W) and weight (2.52 lb) → Business impact: Predictable fit for planning and layout, enabling faster project timelines and fewer field adjustments. Application: Fits common Eaton B-Line channel configurations. Feature: Single mounting hole (9/16 in diameter) → Business impact: Quick, accurate alignment reduces installation time and error margins. Application: Enables rapid securing to standard channel hardware. Feature: Compatibility with Eaton B-Line system → Business impact: Ensures seamless integration with existing brackets, nuts, and channels, lowering procurement complexity. Application: Ideal for modular data centers, control rooms, and utility rooms seeking scalable support solutions. Feature: Certifications listed as Not Applicable → Business impact: Clear expectations for project teams; verify regulatory requirements directly against Eaton datasheets to determine applicability. Application: Use where standard metal brackets meet corrosion resistance needs without specialized certifications.
Get a Quick Quote for a Eaton B293A-12HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B293A-12HDG?
Enquire Now
FAQs
The B293A-12HDG is designed for compatibility with standard Eaton B-Line strut channels. It features a downward-opening design and a 9/16 in mounting hole, enabling straightforward alignment and secure installation within common channel profiles used in electrical rooms and equipment cabinets.
When installing a downward-opening bracket, ensure the channel is clean and aligned, verify hole alignment with the channel nuts or bolts, and support any attached loads to prevent twisting. The 12 in L and 3.5 in H dimensions offer predictable fitment for typical 1-1/4 to 1-5/8 in wide channels used in B-Line systems.
The B293A-12HDG uses hot-dipped galvanized steel for corrosion resistance, making it suitable for indoor and semi-exposed environments. There are no listed SIL, CE, or IP certifications for this part, so verify project-specific regulatory requirements with Eaton datasheets before outdoor use or in highly corrosive environments.
Key dimensions are 12 inches in length, 3.5 inches in height, and 1.62 inches in width, with a weight of 2.52 pounds. The single 9/16 inch mounting hole supports fast attachment, facilitating accurate spacing and layout planning within standard strut channel systems.
Official resources include the Strut Fittings Catalog Section PDFs and the Eaton Specification Sheet for B293A-12HDG. These documents provide detailed installation guidance, material specifications, and compatibility notes to support project planning and procurement decisions.
