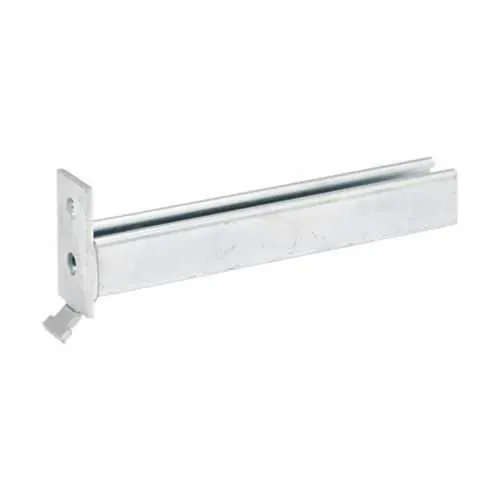

Eaton B293A-12ZN Bracket - Electro-plated Steel
Part Number: B293A-12ZN
Quick Summary
Eaton B293A-12ZN is a steel bracket used to support downward-opening channel openings on B-Line strut systems in electrical installations. Installers often face misalignment and loose fittings in crowded panels, which increases assembly time and raises safety risks. Note: Certifications such as CE, SIL, and IP are not applicable for this model; it still delivers reliable performance through its electro-plated steel construction and Eaton's stringent internal standards. This bracket streamlines installation and provides durable channel support, reducing downtime and aligning with common strut channel configurations for reliable, scalable electrical infrastructure.
Product Information
Extended Description
B293A-12ZN Eaton: Eaton B-Line series bracket, 3.5" H x 12" L x 1.62" W, Steel, Electro-plated, Bracket, channel opening downward
Product Name
Eaton B-Line series bracket
Catalog Number
B293A-12ZN
UPC
781011528737
Product Length/Depth
12 in
Product Height
3.5 in
Product Width
1.62 in
Product Weight
2.52 lb
Certifications
Not Applicable
Special features
Number of mounting holes (1) 9/16 in diameter
Type
Bracket, channel opening downward
Finish
Electro-plated
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B293A-12ZN
Feature: Electro-plated steel construction delivers corrosion resistance and robust durability. This reduces maintenance costs and extends bracket life in harsh manufacturing environments. Application: suitable for B-Line strut systems in electrical rooms, machine frames, and outdoor yards where moisture exposure is common. Feature: Precise 12 in length, 3.5 in height, and 1.62 in width provide a predictable mounting footprint. This enables faster installation, minimizes alignment errors, and reduces rework. Application: aligns with standard strut channels and panel assemblies in control cabinets and data centers. Feature: Bracket with channel opening downward stabilizes mounted components and guides cables. This improves cable management and reduces inadvertent disconnections. Application: ideal for applications requiring downward load orientation in vertical channels. Feature: Single 9/16 in diameter mounting hole simplifies hardware selection and alignment. This lowers installation time and increases repeatability across assemblies. Application: suitable for single-point mounting in limited-space layouts within equipment racks. Feature: Weighing about 2.52 lb, the bracket balances stiffness with ease of handling during field installs. This reduces fatigue on technicians and speeds on-site assembly. Application: cross-functional use in medium-duty support frames and channel mounting across industrial facilities.
Get a Quick Quote for a Eaton B293A-12ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B293A-12ZN?
Enquire Now
FAQs
The B293A-12ZN is designed for standard B-Line strut systems, with precise 12 in length and downward-opening channel fit that align with common channel profiles, simplifying mounting and reducing alignment errors during installation.
This bracket features a single 9/16 in diameter mounting hole, enabling straightforward hardware selection and quick, repeatable installs in confined spaces within electrical panels or equipment racks.
The bracket uses an electro-plated steel finish which provides corrosion resistance suitable for typical industrial indoor environments; it does not list certifications like IP ratings, CE, or SIL for this model.
Best suited for electrical panels, server racks, and industrial control enclosures where secure downward channel support and clean cable routing are needed within B-Line strut systems.
The standardized dimensions and durable finish reduce installation time, minimize rework from misalignment, and extend service life, leading to lower maintenance costs and reduced downtime in routine panel and rack assemblies.
