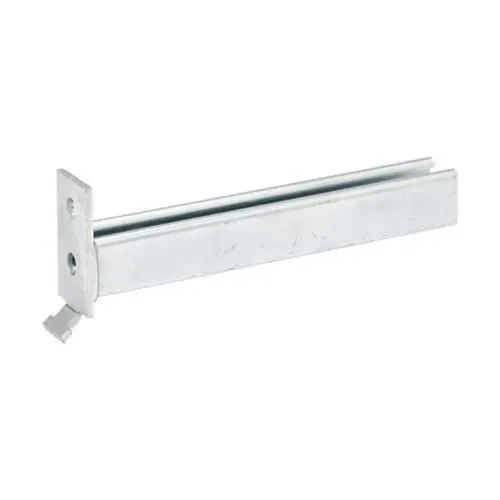

Eaton B293A-18HDG Bracket - Channel opening downward
Part Number: B293A-18HDG
Quick Summary
The Eaton B293A-18HDG Bracket is a durable steel support component designed for B-Line channel systems and electrical enclosures. Project teams often struggle with misfit hardware, uneven assemblies, and corrosion-prone finishes in demanding environments. Certifications for this model are listed as Not Applicable; for projects requiring CE, SIL, or IP ratings, always verify with Eaton specifications or procurement guidelines. With hot-dipped galvanized steel and precise dimensions, the bracket delivers reliable fit and long-term performance, reducing maintenance cycles. By aligning with standard B-Line channel hardware, this bracket accelerates installation and supports scalable rack layouts, delivering tangible time and cost savings across builds.
Product Information
Extended Description
B293A-18HDG Eaton: Eaton B-Line series bracket, 3.5" H x 18" L x 1.62" W, Steel, Hot-dipped galvanized, Bracket, channel opening downward
Product Name
Eaton B-Line series bracket
Catalog Number
B293A-18HDG
UPC
781011528942
Product Length/Depth
18 in
Product Height
3.5 in
Product Width
1.62 in
Product Weight
3.4 lb
Certifications
Not Applicable
Special features
Number of mounting holes (1) 9/16 in diameter
Type
Bracket, channel opening downward
Finish
Hot-dipped galvanized
Material
Steel
Channel Nuts and Hardware Catalog Section
Channel Nuts and Hardware Catalog Section
Eaton Specification Sheet - B293A-18HDG
Heavy-gauge steel with a hot-dipped galvanized finish delivers robust corrosion resistance. This translates to longer service life in damp or outdoor environments, lower replacement costs, and reduced maintenance. In practice, installers can mount gear along B-Line channels with confidence, knowing the bracket will resist weathering and mechanical wear. The compact dimensions keep a tidy profile within standard channel runs, enabling efficient cable management and minimizing obstruction in crowded racks. The downward-opening channel design resists upward movement, improving load stability and simplifying top-side mounting in crowded installations. A single mounting hole with a 9/16 inch diameter streamlines hardware selection and aligns with standard Eaton channel nuts and bolts for quick, repeatable assemblies. At 3.4 pounds, the bracket provides a strong rigidity-to-weight ratio, enabling fast field installation without sacrificing structural integrity. Certifications are not listed for this model; verify project requirements and substitute alternatives if necessary to meet specific compliance goals.
Get a Quick Quote for a Eaton B293A-18HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B293A-18HDG?
Enquire Now
FAQs
It is designed for Eaton B-Line channel systems, featuring a downward-opening channel and a single 9/16 in mounting hole. For secure mounting, pair with Eaton channel nuts and hardware from the Channel Nuts and Hardware Catalog Section.
Dimensions are 18 in in length, 3.5 in in height, and 1.62 in in width; the bracket weighs 3.4 lb. It is constructed from steel with a hot-dipped galvanized finish.
Yes. The hot-dipped galvanized finish provides corrosion resistance appropriate for outdoor or damp installations commonly found in industrial and data-center applications.
Per Eaton data, certifications are listed as Not Applicable for this model. If your project requires CE, SIL, IP, or other certifications, confirm with procurement or Eaton specifications.
Standardized, compatible hardware reduces installation time and maintenance costs, supports scalable rack layouts, and improves reliability in rugged industrial automation environments.
