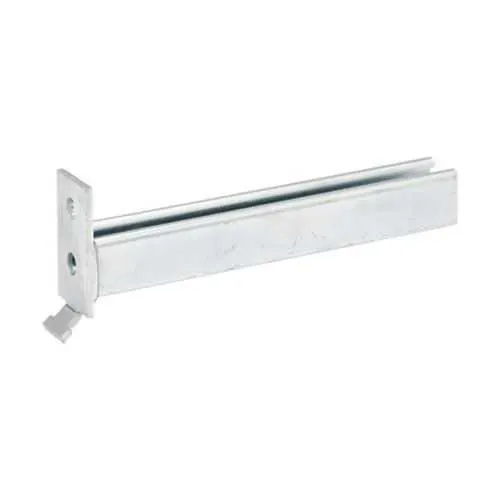

Eaton B293A-18ZN Bracket - Channel Opening Downward
Part Number: B293A-18ZN
Quick Summary
The Eaton B-Line bracket B293A-18ZN provides secure mounting for 18 inch strut channels used in electrical installations. Its downward-opening channel design helps maintain clean layouts by reducing misalignment, wobble, and the risk of cable strain in busy panels. Certifications are not listed for this part, but its steel construction with an electro-plated finish delivers durable, corrosion-resistant performance. Compatible with standard Eaton strut fittings and channel nuts, it enables straightforward installation, predictable mounting hardware, and consistent panel alignment. For procurement teams, the 3.4 lb weight and 18 in length translate to manageable field handling, faster project timelines, and lower total cost.
Product Information
Extended Description
B293A-18ZN Eaton: Eaton B-Line series bracket, 3.5" H x 18" L x 1.62" W, Steel, Electro-plated, Bracket, channel opening downward
Product Name
Eaton B-Line series bracket
Catalog Number
B293A-18ZN
UPC
781011528935
Product Length/Depth
18 in
Product Height
3.5 in
Product Width
1.62 in
Product Weight
3.4 lb
Certifications
Not Applicable
Special features
Number of mounting holes (1) 9/16 in diameter
Type
Bracket, channel opening downward
Finish
Electro-plated
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B293A-18ZN
Feature: 3.5 in height by 18 in length by 1.62 in width in electro-plated steel. Business Impact: Provides predictable footprint in panel layouts and supports moderate loads without compromising space. Application: Ideal for mounting electrical or mechanical components to standard strut channels in control panels and equipment racks. Feature: Downward-opening channel design. Business Impact: Improves cable management and keeps hardware accessible while maintaining orientation for easy routing. Application: Suitable for vertical channel runs in crowded electrical installations where downward access is required. Feature: One mounting hole at 9/16 in diameter. Business Impact: Delivers a secure anchor point with compatible fasteners, reducing hardware diversity and procurement complexity. Application: Works with common strut nuts and bolts used in Eaton B-Line installations. Feature: Finish and material. Business Impact: Electro-plated steel provides corrosion resistance and long-term durability in indoor environments, lowering maintenance costs. Application: Suitable for typical data/industrial panel environments where protection against oxidation is desired. Feature: Size and weight. Business Impact: 18 in length and 3.4 lb weight enable easy handling by field technicians, reducing installation time and worker fatigue. Application: Supports rapid, repeatable mounting across multiple panels or racks. Feature: Compatibility with Eaton Strut Fittings Catalog. Business Impact: Streamlines procurement and reduces part variation, improving project planning and inventory management. Application: Integrates with standard strut channel systems and compatible accessories for quick builds.
Get a Quick Quote for a Eaton B293A-18ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B293A-18ZN?
Enquire Now
FAQs
The B293A-18ZN is designed for standard strut channel systems and features a downward-opening channel arrangement with a 9/16 in mounting hole for secure attachment. It works with Eaton B-Line compatible channel nuts and hardware, enabling fast, repeatable installations across electrical panels and equipment racks.
Key specs include 18 in length, 3.5 in height, and 1.62 in width, with a steel, electro-plated finish. The weight is 3.4 lb, and the part uses one mounting hole of 9/16 in diameter. The catalog number is B293A-18ZN and it fits standard strut channel configurations.
The product uses electro-plated steel, which provides corrosion resistance suitable for indoor applications. It does not specify outdoor IP ratings or corrosion certifications. For outdoor or harsh environments, consider protective enclosures or alternative finishes specified by Eaton for extended exposure conditions.
The downward-opening channel directs mounting toward the underside, which aids in cable routing and access to hardware from the front or top of panels. This orientation helps maintain tidy layouts, reduces cable strain, and simplifies future accessory additions within Eaton B-Line strut systems.
Because the B293A-18ZN uses a single 9/16 in mounting hole and is compatible with standard strut fittings, installers can reduce hardware variety and assembly steps. In practice, projects benefit from faster mounting, reduced rework due to misalignment, and lower labor costs—contributing to shorter project timelines and a favorable return on investment.
