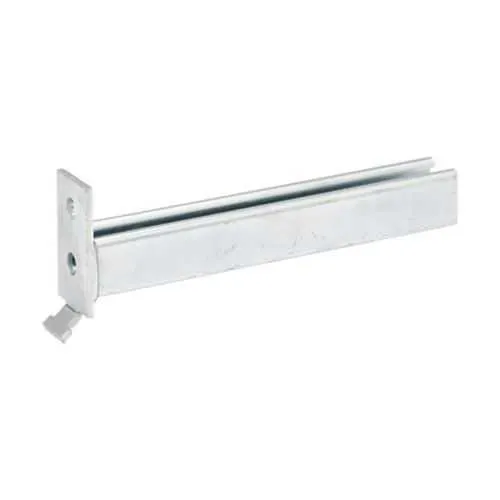

Eaton B293A-24ZN Bracket - Downward Channel Opening
Part Number: B293A-24ZN
Quick Summary
Eaton B293A-24ZN Bracket is a steel support for 24 in strut channels used in electrical enclosures. Maintenance teams often struggle with mounting stability and fit when retrofitting existing frames. Certifications: Not Applicable; in typical panel builds, pair with CE-marked components and standard hardware to meet site-specific regulatory requirements. Designed for Eaton B-Line systems, it enhances installation efficiency and provides reliable channel support for ongoing maintenance and serviceability.
Product Information
Extended Description
B293A-24ZN Eaton: Eaton B-Line series bracket, 3.5" H x 24" L x 1.62" W, Steel, Electro-plated, Bracket, channel opening downward
Product Name
Eaton B-Line series bracket
Catalog Number
B293A-24ZN
UPC
781011529130
Product Length/Depth
24 in
Product Height
3.5 in
Product Width
1.62 in
Product Weight
4.12 lb
Certifications
Not Applicable
Special features
Number of mounting holes (1) 9/16 in diameter
Type
Bracket, channel opening downward
Finish
Electro-plated
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B293A-24ZN
The B293A-24ZN is a downward-opening bracket built from steel with an electro-plated finish, delivering robust load handling and corrosion resistance in busy industrial environments. Feature → Business Impact → Application: The 3.5 in height, 24 in length, and 1.62 in width create a compact yet durable mounting platform that aligns with standard strut channels, reducing misalignment and the need for custom hardware in electrical panels. This translates to faster installations, fewer call-backs, and improved field reliability in electrical and mechanical assemblies. Feature → Application compatibility and ease of installation → This bracket complements Eaton Strut fittings catalogs and channel nuts, enabling quick mounting with one 9/16 in diameter hole, streamlining installation in control rooms and manufacturing floors. Addressing common objections, the electro-plated steel finish minimizes corrosion risk in harsh environments, while the downward channel opening simplifies cable management and device mounting. Industry context: In automation projects, this bracket pairs with other B-Line components for standardized assemblies, reducing BOM complexity and keeping maintenance crews productive.
Get a Quick Quote for a Eaton B293A-24ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B293A-24ZN?
Enquire Now
FAQs
The B293A-24ZN is designed for Eaton B-Line strut channel systems and electrical panel installations. It features a downward-opening channel design and a single 9/16 in mounting hole, making it straightforward to integrate with standard strut fittings and hardware used in control cabinets and machine frames.
Key specifications include a length/depth of 24 inches, a height of 3.5 inches, and a width of 1.62 inches. The bracket weighs approximately 4.12 pounds and is made from steel with an electro-plated finish for corrosion resistance.
Certifications listed for this bracket are Not Applicable. For regulatory compliance, ensure matching components and site-specific approvals are in place and consider panel-level certifications when integrating with other equipment.
Downward-opening brackets support top-mounted or side-mounted components while aiding cable management and load distribution. The design reduces misalignment during installation, simplifies assembly with standard hardware, and improves serviceability by keeping connections accessible in dense control panels.
Official Eaton references include the Strut Fittings Catalog Sections and the Eaton Specification Sheet for B293A-24ZN. These resources detail compatible channel sizes, mounting hardware, and installation guidance to ensure correct integration with other B-Line components.
