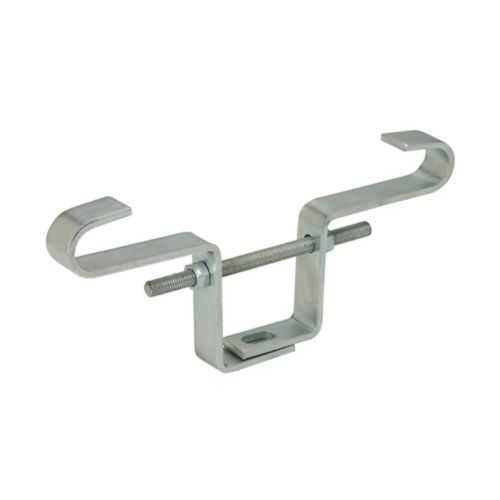

Eaton B3055-5/8X5PLN Beam Clamps - cULus Listed
Part Number: B3055-5/8X5PLN
Quick Summary
Eaton B3055-5/8X5PLN beam clamps securely mount electrical conduits to steel beams, providing adjustable, precise support in commercial and industrial enclosures. Engineers often face misalignment and time-consuming adjustments in crowded electrical rooms; this clamp’s vertical adjustment helps fix that challenge. It carries the cULus Listed safety certification with a 5/8-11 thread and steel construction to guide robust performance in demanding environments. Built for Eaton B-Line strut systems, these clamps deliver reliable compatibility and scalable configuration, helping projects stay on schedule while maintaining safety and compliance as primary business imperatives.
Product Information
Extended Description
B3055-5/8X5PLN Eaton: Eaton B-Line series beam clamps, 4.5" H x 5" L x 5" W, Steel, 5/8"-11 thread size
Product Name
Eaton B-Line series beam clamps
Catalog Number
B3055-5/8X5PLN
UPC
781011026585
Product Length/Depth
5 in
Product Height
4.5 in
Product Width
5 in
Product Weight
4.58 lb
Certifications
cULus Listed
Application
Vertical adjustment provided in clamp
Thread/rod size
5/8"-11
Type
Steel beam clamp
Material
Steel
Feature: 5/8-11 thread size ensures compatibility with standard beam hardware. Business Impact: eliminates custom hardware and speeds up procurement, reducing on-site downtime. Application: ideal for Eaton B-Line strut systems in electrical rooms and data centers, supporting quick, repeatable installations. Long-tail keywords: beam clamps for strut systems, 5/8-11 beam clamp, standard thread clamps.Feature: 4.5 in height, 5 in length, 5 in width with 4.58 lb weight. Business Impact: manageable weight and compact footprint enable one-person installation in tight spaces, lowering labor costs. Application: suitable for mounted runs along beams without excessive bulk. Long-tail keywords: compact steel beam clamp, lightweight beam clamp, space-efficient clamp.Feature: vertical adjustment built into the clamp. Business Impact: precise alignment without extra adapters speeds commissioning and reduces rework. Application: critical for multi-level or offset mounting on B-Line struts. Long-tail keywords: adjustable beam clamp, vertical adjustment clamp, precise alignment.
Get a Quick Quote for a Eaton B3055-5/8X5PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B3055-5/8X5PLN?
Enquire Now
FAQs
To install, align the clamp with the beam or strut channel, insert the 5/8-11 threaded fastener, then tighten to specification while supporting the intended conduit run. Use the clamp's vertical adjustment feature to dial in exact alignment, ensuring a secure grip without over-tightening. Verify load path and confirm all connections meet the cULus Listed safety requirements for North American installations.
The clamp measures 4.5 inches in height, 5 inches in length, and 5 inches in width, and it weighs 4.58 pounds. It uses a 5/8 inch-11 thread size and is constructed from steel. Overall, these specifications combine to provide a sturdy, field-installable clamp suitable for standard Eaton B-Line strut systems.
Yes. The B3055-5/8X5PLN is designed as part of the Eaton B-Line series, providing reliable compatibility with B-Line strut channels and beam systems. Its 5/8-11 thread size and vertical-adjustment capability make it a robust choice for precise beam mounting in commercial and industrial electrical installations.
The clamp is cULus Listed, confirming safety compliance for North American electrical installations. This certification supports regulatory adherence for electrical assemblies and helps facilitate safer, certified mounting of conduits and equipment on steel beams within Eaton B-Line systems.
The clamp reduces installation time through standard 5/8-11 compatibility, enables precise vertical adjustment for proper conduit alignment, and offers durable steel construction with a UL-listed safety profile. Together, these features lower commissioning risk, improve ongoing maintenance efficiency, and help meet project schedules and safety requirements in data centers and manufacturing facilities.
