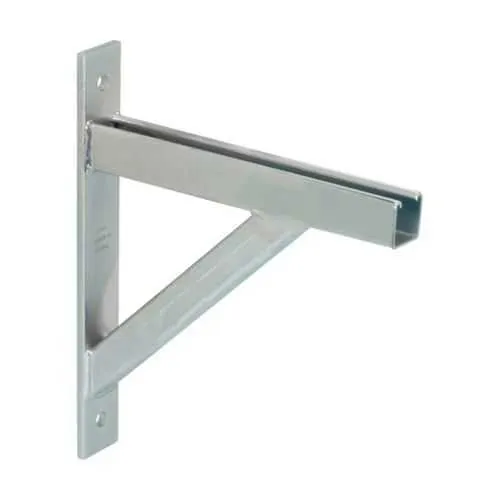

Eaton B3064-1PLN B-Line bracket - 1200 lb load
Part Number: B3064-1PLN
Quick Summary
The Eaton B3064-1PLN B-Line bracket is a steel wall-mount support for pipes and conduits. Many installations struggle with alignment, vibration, and insufficient load capacity—this bracket delivers consistent positioning and robust performance. Certifications field shows Not Applicable, and the unit uses plain steel with a 6.6 lb weight and 1200 lb capacity. Its adjustable design simplifies installation with standard wall mounting and compatibility with common B-Line channel systems. This combination provides a reliable, cost-effective solution for mechanical and electrical piping runs in commercial and industrial spaces.
Product Information
Extended Description
B3064-1PLN Eaton: Eaton B-Line series bracket, 15" H x 12" L x 2" W, Steel, 1200 Lbs load cap, Plain
Product Name
Eaton B-Line series bracket
Catalog Number
B3064-1PLN
UPC
781011032005
Product Length/Depth
12 in
Product Height
15 in
Product Width
2 in
Product Weight
6.6 lb
Certifications
Not Applicable
Application
Designed for supporting pipe from walls
Type
Adjustable strut bracket
Load capacity
1200 lbs
Finish
Plain
Material
Steel
Channel Nuts and Hardware Catalog Section
Channel Nuts and Hardware Catalog Section
Eaton Specification Sheet - B3064-1PLN
Feature: Adjustable, robust steel construction. Benefit: Offers precise alignment and durable support to reduce sag and vibration. Application: Ideal for wall-mounted pipe and conduit runs in electrical rooms and data centers. Feature: 12 inch depth and 15 inch height with a 2 inch width. Benefit: Maximizes usable space while maintaining strong load-bearing capacity for 1200 lbs. Application: Suitable for vertical and horizontal piping layouts along walls in industrial facilities. Feature: Plain finish and 6.6 lb weight. Benefit: Cost-effective, simple integration with existing finishes and lightweight handling during installation. Application: Indoor dry environments and standard mechanical rooms. Feature: Steel material compatible with B-Line series channels. Benefit: Streamlines procurement and reduces installation time with familiar components. Application: Projects leveraging Eaton channel systems and common mounting hardware. Objection handling: In environments requiring corrosion resistance, plan for protective coatings or a different finish. Industry context: Widely adopted in facility upgrades and new builds to improve pipe support reliability.
Get a Quick Quote for a Eaton B3064-1PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B3064-1PLN?
Enquire Now
FAQs
To install the B3064-1PLN, verify a solid wall surface, select appropriate anchors for the substrate, and align the bracket with the mounting studs or channels. Use compatible fasteners and ensure the bracket sits plumb before applying load. Tighten mounting hardware to spec, then test the 1200 lb rating under a controlled load to confirm stability.
Yes, the B3064-1PLN is designed to support pipes and conduits mounted from walls. It has a robust load rating of 1200 lbs, suitable for most standard piping runs in electrical or mechanical installations. Always verify dynamic loads and use appropriate safety factors for your specific application.
The bracket comes with a plain steel finish suitable for indoor dry environments. For wet or corrosive conditions, consider applying a protective coating or selecting a different finish designed for higher corrosion resistance. Always evaluate environmental exposure and maintenance plans when selecting hardware.
The product data indicates Certifications as Not Applicable for this bracket. While this means no specific third party certifications are listed, ensure your installation complies with local codes and project standards for wall-mounted pipe supports and consult structural guidelines as needed.
With a 1200 lb load capacity and durable steel construction, the B3064-1PLN reduces the need for frequent replacements and supports longer service life. Its plain finish lowers upfront costs and minimizes maintenance in clean environments. Routine inspection of fasteners and joints is recommended to maintain performance and prevent loosening over time.
