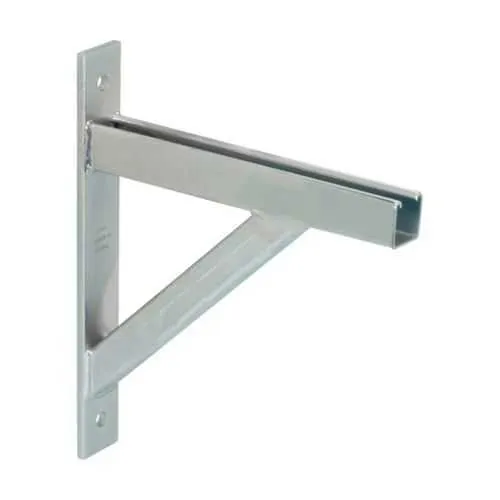

Eaton B3064-2PLN B-Line bracket - 800 lbs Load-capacity
Part Number: B3064-2PLN
Quick Summary
The Eaton B3064-2PLN is a B-Line series bracket that provides reliable wall-mounted pipe support for industrial environments. Projects often suffer when mounting hardware doesn’t align with standard strut channels or cannot sustain peak loads, causing delays and field retries. Certifications: Not Applicable; however, the steel construction with a plain finish delivers an 800 lbs load rating suitable for demanding pipe runs. For OEMs and maintenance teams, the adjustable mounting and compatibility with strut fittings simplify installation, reduce field labor, and improve safety by ensuring consistent support along walls.
Product Information
Extended Description
B3064-2PLN Eaton: Eaton B-Line series bracket, 21" H x 18" L x 2" W, Steel, 800 Lbs load cap, Plain
Product Name
Eaton B-Line series bracket
Catalog Number
B3064-2PLN
UPC
781011032050
Product Length/Depth
18 in
Product Height
21 in
Product Width
2 in
Product Weight
10.04 lb
Certifications
Not Applicable
Application
Designed for supporting pipe from walls
Type
Adjustable strut bracket
Load capacity
800 lbs
Finish
Plain
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B3064-2PLN
Engineered for high-load pipe support, the Eaton B3064-2PLN uses steel construction with a plain finish to deliver solid, long-life performance. The bracket stands 21 inches tall and 18 inches long with a 2-inch width, yielding a broad contact footprint to distribute weight and reduce point loading. Its nominal 10.04 lb weight makes it easy to handle during installation, while the 800 lbs load rating provides a dependable anchor point for piping runs along walls in manufacturing lines and utility corridors.Designed for compatibility with Eaton B-Line strut systems, B3064-2PLN integrates with standard channel nuts and hardware, reducing on-site fabrication and misalignment risks. The adjustable nature simplifies retrofit projects and allows precise positioning for diverse pipe sizes and configurations. In practice, procurement teams benefit from using the same strut fittings catalog across multiple builds, while field technicians save time aligning brackets to existing wall anchors. The result is faster install cycles, fewer call-backs, and improved safety margins on critical piping runs.From the installation perspective, the B3064-2PLN offers straightforward mounting with clear dimensions and load capacity, helping installers verify fit before drilling. Some projects worry about corrosion; plain finish does not imply corrosion protection, but steel construction delivers durability in many environments and can be coated if needed. The bracket's footprint helps maintain consistent spacing along walls, enabling predictable clearance for insulation, valves, and service loops. Standardizing on this adjustable bracket within an existing component line also optimizes inventory and reduces stock-keeping costs.Certifications and support: Certification status is Not Applicable for this bracket; however, Eaton provides detailed technical documents, including catalog sections and the B3064-2PLN spec sheet, to support compliance checks and installation planning. Customers can reference the Strut Fittings Catalog Section for compatible hardware. These resources reduce risk during audits and accelerate project approvals by providing validated installation guidance and part recommendations.
Get a Quick Quote for a Eaton B3064-2PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B3064-2PLN?
Enquire Now
FAQs
The B3064-2PLN is designed as an adjustable strut bracket for Eaton B-Line systems and integrates with standard strut channels and channel nuts without needing special adapters. For best results, use the Eaton Strut fittings catalog section to confirm compatible hardware and mounting tolerances. This compatibility reduces field improvisation and ensures consistent alignment across multiple installations.
The bracket provides an 800 lbs load capacity, which supports typical pipe runs and distributes weight when properly anchored. Always distribute weight along the 21 in height and 18 in length to avoid concentrated stress. Pair this with appropriate channel nuts and hardware per the Strut Fittings Catalog Section for reliable performance.
Yes. The B3064-2PLN is specifically designed for supporting pipe from walls in industrial environments. Its adjustable design accommodates various pipe sizes and spacing; combined with standard Eaton strut components, it provides a scalable solution for plant piping runs, utility corridors, and equipment tie-ins.
As listed, certifications are Not Applicable. However, engineering standards for steel brackets and general mechanical design practices apply. For specific regulatory checks, consult the Eaton spec sheets and the Strut Fittings Catalog Section to verify requirements for your facility’s safety and reliability audits.
Install with standard Eaton strut hardware, including channel nuts and compatible bolts. The bracket’s dimensions—21 in height, 18 in length, 2 in width—guide mounting layout andHandling. Refer to the B3064-2PLN specification sheet for torque values, hole patterns, and recommended power-tools, ensuring secure wall attachment.
