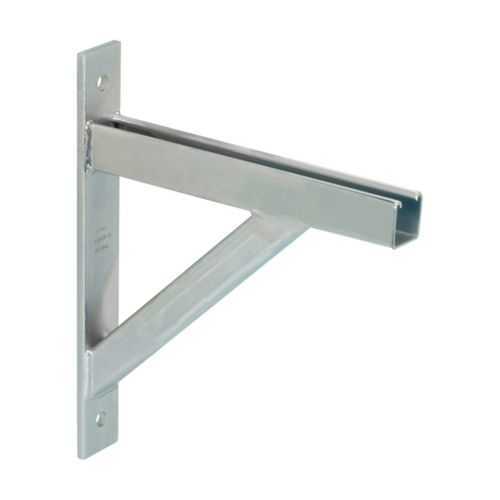

Eaton B3064-3PLN Bracket - 600 lb Load Capacity
Part Number: B3064-3PLN
Quick Summary
The Eaton B3064-3PLN Bracket is a wall-mounted adjustable support that secures piping and conduit in industrial electrical installations. When space is tight or loads vary, adjustable mounting from walls minimizes rework and speeds up commissioning. Certifications for this model are listed as Not Applicable, so verify project-specific approvals and regulatory requirements before installation. Designed for seamless compatibility with Eaton B-Line strut systems and standard hardware, it delivers predictable fit and dependable performance in steel environments. With a 600 lb load rating and plain steel finish, this bracket provides a cost-efficient, durable solution for pipe-support applications across multiple facilities.
Product Information
Extended Description
B3064-3PLN Eaton: Eaton B-Line series bracket, 27" H x 24" L x 2" W, Steel, 600 Lbs load cap, Plain
Product Name
Eaton B-Line series bracket
Catalog Number
B3064-3PLN
UPC
781011032104
Product Length/Depth
24 in
Product Height
27 in
Product Width
2 in
Product Weight
13.46 lb
Certifications
Not Applicable
Application
Designed for supporting pipe from walls
Type
Adjustable strut bracket
Load capacity
600 lbs
Finish
Plain
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B3064-3PLN
Feature: 27 in H x 24 in L x 2 in W steel construction with a 600 lb load rating. Business Impact: enables safe, single-bracket support for mid-size pipe runs, reducing hardware and labor. Application: wall-mounted pipe support for electrical and mechanical installations. Feature: Adjustable bracketing design in the B3064-3PLN. Impact: accommodates varied installation heights and alignment without specialized hardware. Application: reliable for retrofits and new builds in data centers, manufacturing floors, and service bays. Feature: Plain finish (uncoated steel). Impact: cost-effective option with straightforward integration into existing enclosures, while offering guidance on coating requirements for corrosive environments. Application: suitable for indoor, non-corrosive settings or where painting is planned during installation. Feature: Compatibility with Strut Fittings Catalog Section and Strut channel hardware. Impact: speeds procurement and reduces mismatch risk by aligning with Eaton's channel nuts, U-bolts, and hardware. Application: simplifies installation in Eaton-supported strut systems. Feature: Certification status Not Applicable (check project requirements). Impact: keeps expectations aligned with customer standards; ensures procurement documents are checked early. Application: use in controlled environments with standard building codes.
Get a Quick Quote for a Eaton B3064-3PLN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B3064-3PLN?
Enquire Now
FAQs
Plan for a solid substrate and appropriate fasteners for steel brackets, ensuring alignment with piping runs using compatible Eaton strut channels. Verify the 600 lb load rating across the support points and maintain clearances for conduit bends. Follow standard safety practices and use the recommended channel nuts and hardware to optimize installation time and reliability.
Yes. The B3064-3PLN is designed for use with Eaton’s B-Line strut system, aligning with standard strut channels and fittings such as channel nuts and U-bolts. This compatibility reduces part mismatch and streamlines procurement, enabling faster installation and consistent performance across projects that use Eaton strut components.
This adjustable bracket excels in wall-mounted pipe and conduit support within industrial facilities, data centers, manufacturing floors, and service bays where space is constrained. Its 27 in x 24 in x 2 in footprint supports a range of piping assemblies, and the 600 lb rating provides a robust, scalable solution for medium-duty installations.
The product catalog lists certifications as Not Applicable. For regulated environments, always request project-specific approvals and reference Eaton's technical datasheets and catalog sections to confirm any site-specific compliance requirements before deployment.
With a 600 lb load rating and steel construction, the B3064-3PLN reduces the number of supports needed for heavier pipe runs, lowering material and labor costs over time. Its compatibility with standard strut systems minimizes downtime during retrofits and ongoing maintenance, delivering predictable performance and improved lifecycle ROI in industrial installations.
