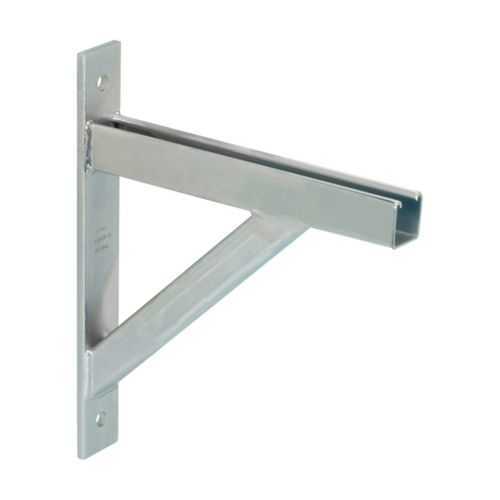

Eaton B3064-3ZN B-Line Bracket - 600 lbs Load Cap
Part Number: B3064-3ZN
Quick Summary
Eaton B3064-3ZN bracket supports wall-mounted pipe runs in industrial facilities. This solution addresses the common challenge of securing reliable pipe support in tight or crowded spaces where vibration and load demands impact longevity. Certifications are not specified for this model, with Not Applicable noted in the data; the design relies on durable steel construction and a welded assembly for predictable performance. Built to handle up to 600 lbs, this bracket delivers a robust foundation for mechanical and electrical piping runs, while aligning with the Eaton B-Line system and compatible strut components. By selecting this bracket, engineers gain a dependable, scalable mounting option that simplifies installation and reduces maintenance over the lifecycle of piping installations.
Product Information
Extended Description
B3064-3ZN Eaton: Eaton B-Line series bracket, 27" H x 24" L x 2" W, Steel, 600 Lbs load cap
Product Name
Eaton B-Line series bracket
Catalog Number
B3064-3ZN
UPC
781011032111
Product Length/Depth
24 in
Product Height
27 in
Product Width
2 in
Product Weight
13.46 lb
Certifications
Not Applicable
Application
Designed for supporting pipe from walls
Type
Light duty welded bracket
Load capacity
600 lbs
Material
Steel
Feature → Business Impact → Application: The B3064-3ZN uses heavy-duty steel construction to support a 600 lb load, providing a stable platform for wall-mounted pipe runs in industrial environments; this translates to fewer mid-project structural adjustments and lower risk of pipe movement during operation. It integrates with Eaton B-Line and Strut systems, enabling seamless compatibility with existing channel nuts and hardware to reduce installation time on site. Application: Ideal for pipe routing from walls in electrical rooms and mechanical spaces, supporting clean, organized installations with long-term integrity. Feature → Business Impact → Application: The 27 in height, 24 in length, and 2 in width deliver a versatile footprint for common pipe configurations, while the 13.46 lb weight offers manageable handling during mounting, reducing labor costs and installation fatigue. Application: Useful in retrofit projects where space constraints demand a compact, welded bracket solution that minimizes field fabrication. Feature → Business Impact → Application: Welded construction eliminates loose parts and bolt-on components, improving reliability, safety, and inspection outcomes; Installation: Faster on-site assembly and fewer call-backs for loose connections. Feature → Business Impact → Application: Designed specifically for supporting pipe from walls, enabling organized, code-compliant routing in data centers, manufacturing floors, and utility rooms.
Get a Quick Quote for a Eaton B3064-3ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B3064-3ZN?
Enquire Now
FAQs
The B3064-3ZN is designed for wall-mounted pipe support and can be mounted to a compatible Strut channel or wall anchor system. Begin by locating studs or securing a solid wall anchor, align the bracket with the desired pipe path, and fasten using appropriate hardware per your Strut system. Verify vertical clearance and pipe alignment before tightening to full specification.
Key specifications include a 27 in height, 24 in length, 2 in width, steel construction, 13.46 lb weight, and a 600 lb load capacity. The catalog number is B3064-3ZN, and the UPC is 781011032111. These metrics determine compatibility with your pipe size, spacing, and mounting surface.
Yes. Designed for wall-mounted pipe support, the B3064-3ZN is suitable for electrical and mechanical installations where reliable vertical support is needed. It is a light-duty welded bracket in the Eaton B-Line line, offering a robust solution for common building piping runs.
According to the available data, Certifications are Not Applicable for the B3064-3ZN. There is no specified SIL, CE, or IP rating in the provided spec. Users should verify any project-specific compliance requirements with their procurement team or Eaton technical support.
The welded steel construction provides durable, long-term performance with minimal field rework, reducing maintenance cycles. Its compatibility with Eaton Strut systems streamlines installation, lowers labor costs, and supports scalable pipe routing, contributing to faster project timelines and a lower total cost of ownership.
