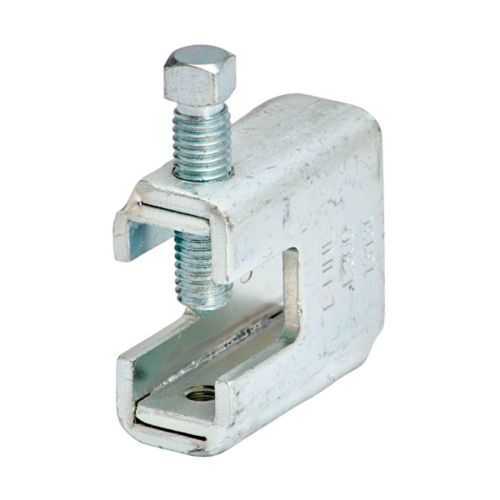

Eaton B306HDG Beam Clamp - cULus Listed, 600 lb Capacity
Part Number: B306HDG
Quick Summary
Eaton B306HDG beam clamps securely mount runs in strut systems for electrical installations. Without reliable clamps, vibration, misalignment, or drift can cause downtime and costly rework. This clamp is cULus Listed, offers a 600 lb load capacity, and employs a safety factor of 5. Partnering with B-Line clamps improves installation efficiency and compliance in industrial electrical projects.
Product Information
Extended Description
B306HDG Eaton: Eaton B-Line series beam clamps, 2.4375"Hx2.5"Lx0.4670"W, Steel, 600 load cap, 3/8”-16 rod size, 1/2”-13 screw size, 0.875"beam/flange width
Product Name
Eaton B-Line series beam clamps
Catalog Number
B306HDG
UPC
781011530051
Product Length/Depth
2.5 in
Product Height
2.4375 in
Product Width
0.467 in
Product Weight
0.97 lb
Certifications
cULus Listed
Beam/flange width
0.875 in
Set screw size
1/2”-13
Special features
Safety factor of 5, setscrew included
Thread/rod size
3/8”-16
Type
Beam clamp
Load capacity
600 lb
Material
Steel
Strut Systems Full Catalog
Strut Systems Full Catalog
B-Line engineering services line card
Eaton Specification Sheet - B306HDG
Steel construction ensures durability and resistance to impacts in busy facilities. This reduces maintenance and replacement costs, improving uptime during commissioning of B-Line beam clamps in strut systems. The 600 lb load rating, along with 3/8-16 rod size and 1/2-13 screw, provides secure engagement even with heavier conduits, cables, and small equipment, reducing rework and ensuring reliable performance in cable management and support applications across strut systems. Its 0.875 in beam width compatibility and 2.5 in length allow precise positioning within standard layouts, simplifying stocking and installation when integrating with existing B-Line components. cULus Listed certification supports electrical-safety compliance in project sign-offs, while the safety factor of 5 adds design margin against overload in dynamic environments. The included setscrew design minimizes installation time and prevents tool loss, ensuring consistent torque during tightening in busy installations.
Get a Quick Quote for a Eaton B306HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B306HDG?
Enquire Now
FAQs
To install the B306HDG with Eaton B-Line strut systems, align the clamp on a compatible 0.875 in flange, insert the 3/8-16 threaded rod into the clamp, and tighten the 1/2-13 setscrew until it contacts the beam. Use the included setscrew for secure, vibration-resistant mounting and verify clearance with a quick torque check.
Key specifications include a 600 lb load rating, steel construction, 2.4375 in height, 2.5 in length, and 0.467 in width, supporting a 0.875 in beam width. Threads are 3/8-16 for rods and 1/2-13 for screws, ensuring robust engagement. The unit is designed for Strut Systems and B-Line accessories. cULus Listed for electrical safety and a safety factor of 5 provide design margin.
Yes. The B306HDG clamps securely on standard 0.875 in beams used in many electrical mounting schemes, and its 600 lb rating supports typical conduit, cable trays, and small equipment. Its 2.5 in length and 2.4375 in height allow precise positioning, while the 3/8-16 rod and 1/2-13 screw ensure solid engagement in busy installations.
The B306HDG is cULus Listed, indicating compliance with safety standards for electrical components. This certification supports electrical contractor acceptance and helps meet project compliance. While other certifications aren’t listed for this model, the robust steel construction and compliance for Strut Systems provide reliable performance in industrial settings. It aligns with typical UL expectations and manufacturer guidelines.
Maintenance is minimal due to steel construction and simple, mechanical engagement. Regular visual checks for torque and cleanliness are sufficient. The robust load capacity reduces rework and replacement frequency, delivering lower total cost of ownership. Compatibility with existing B-Line components streamlines stocking and reduces downtime during upgrades. No extra lubrication or special tools required, speeding future servicing.
