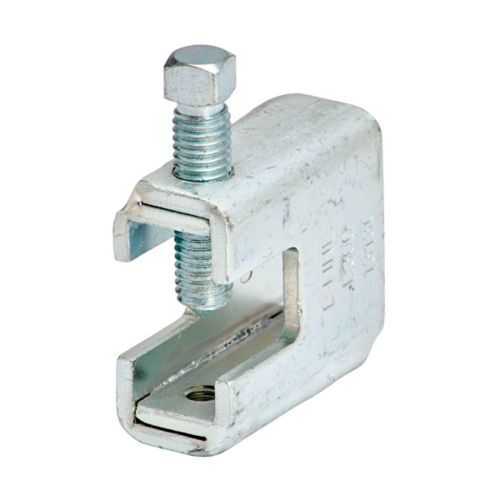

Eaton B307HDG Beam Clamp - cULus Listed, 1100 lb
Part Number: B307HDG
Quick Summary
The Eaton B307HDG Beam Clamp secures rods and accessories to strut beams in electrical installations. Engineers often wrestle with mismatched thread sizes and unclear load ratings that drive rework and project delays. This model carries a cULus Listed certification for safety compliance and is designed with a built-in safety factor of 5 to handle dynamic loads while maintaining a compact footprint. By using standard 1/2-13 hardware and a 0.875 in beam flange, it integrates smoothly with existing B-Line components, reducing procurement complexity and downtime.
Product Information
Extended Description
B307HDG Eaton: Eaton B-Line series beam clamps, 2.4375"Hx2.5"Lx0.4670"W, Steel, 1100 load cap, 1/2"-13 rod size, 1/2”-13 screw size, 0.875"beam width
Product Name
Eaton B-Line series beam clamps
Catalog Number
B307HDG
UPC
781011530143
Product Length/Depth
2.5 in
Product Height
2.4375 in
Product Width
0.467 in
Product Weight
0.97 lb
Certifications
cULus Listed
Beam/flange width
0.875 in
Set screw size
1/2”-13
Special features
Safety factor of 5, setscrew included
Thread/rod size
1/2"-13
Type
Beam clamp
Load capacity
1100 lb
Material
Steel
Feature: 1100 lb load capacity with a safety factor of 5. Business impact: provides robust headroom for heavy fixtures and reduces the risk of underestimating loads. Application: supports industrial electrical and mechanical installations with confidence. Feature: steel construction. Business impact: delivers durability and long service life, lowering replacement and maintenance costs. Application: mounts in production lines, warehouses, and utility spaces where vibration and harsh environments are common. Feature: 1/2-13 thread/rod and 1/2-13 screw size. Business impact: ensures compatibility with standard strut hardware, simplifying procurement and field adjustments. Application: quick retrofits and on-site reconfigurations. Feature: compact dimensions (2.5 in L, 2.4375 in H, 0.467 in W). Business impact: fits tight spaces and dense installations, minimizing interference. Application: retrofit projects and new builds with limited clearance. Feature: beam width compatibility of 0.875 in and setscrew included. Business impact: streamlined installation with secure clamping and reduced need for separate hardware. Application: B-Line strut systems across fit-for-purpose enclosures and panels. Certifications: cULus Listed ensures safety compliance across regulated environments. Business impact: supports industrial compliance programs and reduces audit risk. Application: critical sector deployments where regulatory adherence matters.
Get a Quick Quote for a Eaton B307HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B307HDG?
Enquire Now
FAQs
The B307HDG is designed for 1/2-13 rods and screws and fits 0.875 in beam flange sections used in common B-Line strut systems. Its 2.5 in length and compact profile enable mounting in tight spaces, while the included setscrew ensures a secure, vibration-resistant connection. This makes retrofits straightforward and compatible with existing hardware inventories.
Key specs include a 1100 lb load capacity, 2.5 in product length, 2.4375 in product height, and 0.467 in product width. Rod and screw sizes are both 1/2-13, with the safety factor of 5 incorporated in the design. The clamp is made from steel and is cULus Listed, delivering both strength and safety compliance.
This beam clamp is ideal for securing support rods to strut beams in electrical and mechanical installations. Use cases include mounting lighting, enclosures, and equipment to B-Line strut systems in commercial, industrial, and utility environments where reliable load handling and quick installation are priorities.
The B307HDG carries cULus Listed certification, demonstrating compliance with recognized safety standards for electrical and mechanical components. This certification supports regulatory adherence, risk reduction during audits, and confidence in long term performance in regulated facilities, contributing to smoother commissioning and ongoing compliance.
The steel construction and proven load rating reduce replacement cycles and maintenance cost by delivering durable performance under typical industrial loads. A 1/2-13 thread system and included setscrew streamline installation, cutting downtime during upgrades or relocations and supporting a faster return on investment through lower labor and material handling costs.
