Eaton B307SS6 Beam Clamps - 1100 lb cULus Listed
Part Number: B307SS6
Quick Summary

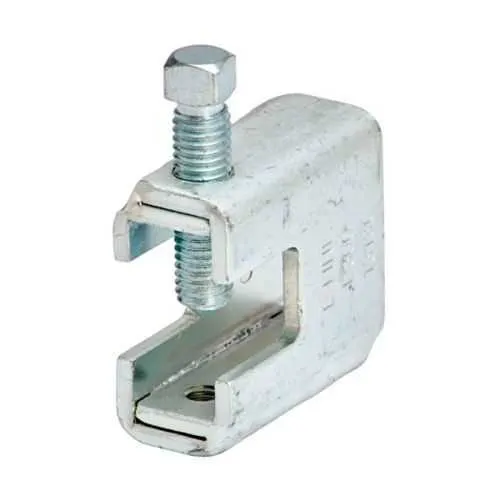

Eaton B-Line beam clamps securely anchor electrical runs, delivering reliable support for strut systems in commercial and industrial installations. Installers often grapple with tight tolerances, vibration, and mounting speed under load. With cULus Listed certification and a safety factor of 5, these clamps combine robust performance with regulatory compliance, helping ensure safer, longer-lasting installations. The B307SS6 model accommodates 1/2”-13 thread/rod and screw sizes and a 0.875 in flange width, making it a natural fit for standard B-Line strut assemblies. By choosing this beam clamp, you gain consistent installation quality, reduced maintenance, and predictable load handling in lighting and emergency system applications.
Product Information
Extended Description
B307SS6 Eaton: Eaton B-Line series beam clamps, 1100 lb, Steel, Safety factor of 5, setscrew included, Beam clamp, 1/2"-13 thread/rod size, 1/2”-13 screw size, 7/8” flange width, Stainless steel type 316
Product Name
Eaton B-Line series beam clamps
Catalog Number
B307SS6
UPC
782051512199
Product Length/Depth
2.5 in
Product Height
2.4375 in
Product Width
0.467 in
Product Weight
0.97 lb
Certifications
cULus Listed
Beam/flange width
0.875 in
Set screw size
1/2”-13
Special features
Safety factor of 5, setscrew included
Thread/rod size
1/2"-13
Type
Beam clamp
Load capacity
1100 lb
Material
Steel
Beam clamps and accessories section from strut catalog
Beam clamps and accessories section from strut catalog
B-Line engineering services line card
Feature: 1100 lb load capacity provides substantial margin for heavy conduit and equipment, reducing sag and rework. Business Impact: Improves installation reliability and minimizes costly service calls due to under-spec support. Application: Ideal for lighting and emergency system supports in busy facilities.Feature: Safety factor of 5 enhances margin against dynamic loads and misalignment, supporting long-term performance. Business Impact: Higher confidence in system integrity over life cycle, enabling lower risk commissioning. Application: Suitable for vibration-prone mezzanines and equipment rails.Feature: 1/2-13 thread/rod size and 1/2-13 screw size deliver compatibility with standard hardware and fasteners. Business Impact: Simplifies sourcing and reduces hardware diversity in the field. Application: Fits common B-Line strut assemblies without adapters.Feature: Compact dimensions (2.5 in length, 2.4375 in height, 0.467 in width) and a 0.875 in flange width offer a compact, unobtrusive mounting footprint. Business Impact: Frees space in crowded electrical rooms and supports cleaner installations. Application: Works where beam spacing and clearance are limited.Feature: Setscrew included streamlines installation and ensures secure clamping from the first torque. Business Impact: Accelerates commissioning timelines and improves consistency across teams. Application: Quicker site upgrades and retrofit projects.Feature: cULus Listed certification confirms compliance with US and Canadian safety standards. Business Impact: Reduces risk of nonconformance during audits and accelerates procurement workflows. Application: Suitable for regulated electrical installations in commercial facilities.
Get a Quick Quote for a Eaton B307SS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B307SS6?
Enquire Now
FAQs
Yes. The B307SS6 is specified with a 1/2-13 thread/rod size and a 1/2-13 screw size, enabling direct compatibility with standard hardware used in B-Line strut systems. The included setscrew further simplifies secure mounting during installation.
The B307SS6 beam clamp has a load capacity of 1100 lb and a safety factor of 5. This combination provides a conservative margin for dynamic loads, vibrations, and misalignment, supporting long-term reliability in critical lighting and emergency installations.
Key dimensions include a length of 2.5 in, a height of 2.4375 in, and a width of 0.467 in, with a flange width of 0.875 in. The product weighs 0.97 lb, making it compact yet sturdy for space-constrained electrical installations.
The B307SS6 is cULus Listed, indicating compatibility with UL and CSA safety standards for US and Canadian markets. This certification helps ensure regulatory compliance, reduces audit risk, and supports procurement decisions for regulated electrical installations.
This beam clamp excels in lighting and emergency system installs within commercial facilities, where reliable beam-to-rod connections and tight mounting tolerances are essential. Its compatibility with standard 1/2-13 hardware, robust load rating, and quick-set features translate to faster commissioning and lower maintenance overhead over the system life cycle.
