Eaton B309HDG Beam Clamps - cULus Listed
Part Number: B309HDG
Quick Summary
Eaton B309HDG beam clamps securely anchor electrical fixtures to B-Line strut systems. Installers often face clamps that loosen under vibration or misalign during mounting, slowing projects. This model is cULus Listed, supports up to 1500 lb, and uses a 1/2”-13 setscrew with a 0.875 in beam width. Constructed from steel for durability, it speeds up alignment and reduces rework, delivering predictable performance in lighting and emergency-system applications. By pairing precise specs with Eaton’s B-Line ecosystem, you gain compatibility, safer installations, and a clear path to code-compliant infrastructure. Ideal for retrofits and new builds alike, it simplifies stocking with compatible components.
Product Information
Extended Description

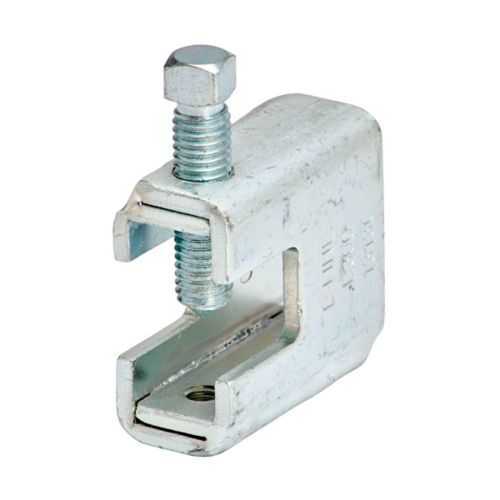

B309HDG Eaton: Eaton B-Line series beam clamps, 2.5625" H x 2.5" L x 0.4670" W, Steel, 1500 Lbs load, 1/2”-13 screw size, 0.875" beam/flange width
Product Name
Eaton B-Line series beam clamps
Catalog Number
B309HDG
UPC
781011862046
Product Length/Depth
2.5 in
Product Height
2.5625 in
Product Width
0.467 in
Product Weight
1.33 lb
Certifications
cULus Listed
Beam/flange width
0.875 in
Set screw size
1/2”-13
Special features
Safety factor of 5, setscrew included
Type
Beam clamp
Load capacity
1500 lb
Material
Steel
Feature: Steel clamp body with precise geometry provides a rigid, repeatable grip. Business Impact: This yields predictable installation tolerances and reduces rework on critical runs. Application: Ideal for securing lighting fixtures and emergency components to Eaton B-Line strut channels in warehouses and production floors. Feature: Includes a 1/2”-13 setscrew and a safety factor of 5. Business Impact: Delivers a conservative load margin, minimizing loosening under vibration and dynamic loads. Application: Fit for motors, conveyors, and high‑vibration equipment installations where long-term retention matters. Feature: 0.875 in beam width compatibility. Business Impact: Ensures fast, error‑free seating on common strut beams, speeding install times and reducing misalignment. Application: Great for retrofit projects and new builds that use standard B-Line beams. Feature: 1500 lb load rating. Business Impact: Supports substantial luminaires and emergency fixtures without additional clamps, lowering total hardware cost. Application: Suitable for high‑duty lighting runs and critical life safety systems along beams. Feature: cULus Listed certification. Business Impact: Confirms compliance with established electrical safety standards, easing inspections and approvals. Application: Industrial facilities and commercial installations requiring UL family certifications. Feature: Steel construction with a proven Eaton B-Line fit. Business Impact: Enhances durability, longevity, and compatibility with the broader strut system, reducing maintenance cycles. Application: Long-term installations in harsh environments where reliability matters.
Get a Quick Quote for a Eaton B309HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B309HDG?
Enquire Now
FAQs
For proper installation, confirm the beam width is 0.875 in and the screw size is 1/2-13. Aligning the clamp with the beam flange before tightening ensures a secure grip. Use a compatible driver, finger‑tighten, then snug the setscrew to the manufacturer's torque guidelines, monitoring for any movement under vibration. This approach minimizes repositioning and reduces installation cycle time.
The B309HDG beam clamp provides a 1500 lb load rating and uses a 1/2-13 setscrew. This combination delivers a robust, margin-rich connection suitable for mid to heavy lighting loads and emergency fixtures. Always verify cumulative loads in your installation and distribute weight to avoid exceeded ratings on single clamps.
Yes. The B309HDG is designed for Eaton B-Line strut channels with a 0.875 in beam width. Its 2.5625 in height and 2.5 in length are optimized for secure seating on standard B-Line beams, simplifying procurement and ensuring consistent performance across installations.
The B309HDG is cULus Listed, providing UL safety compliance for electrical installations. This certification supports code adherence and reduces inspection time. Note that data does not indicate CE or IP ratings; plan accordingly if those certifications are required for your project.
Common applications include mounting luminaires, emergency lighting fixtures, and other electrical hardware to B-Line strut systems in commercial and industrial environments. The clamp’s 1500 lb capacity, 0.875 in beam width compatibility, and included setscrew streamline installations in warehouses, manufacturing floors, and retrofit projects, delivering reliable support with minimal rework.
