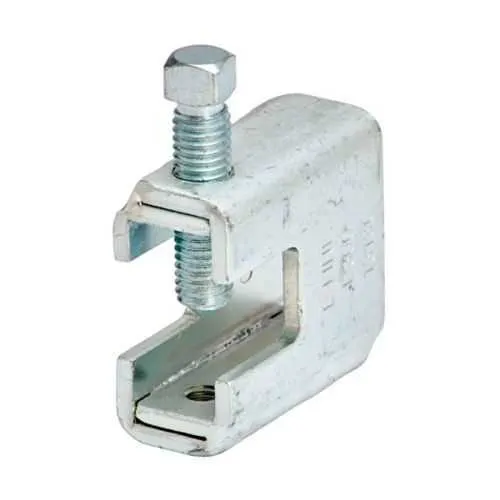

Eaton B309ZN Beam Clamps - 1500 lb Load, cULus Listed
Part Number: B309ZN
Quick Summary
Eaton B309ZN beam clamps securely attach to 0.875 in beams for reliable mounting of cable trays, lighting fixtures, and strut systems. Engineers often struggle with fasteners that slip, misalign, or fail under load in crowded installations; these clamps provide a robust, clamp-style solution that maintains alignment and reduces rework. This product carries a cULus Listed certification and is designed with a safety factor of 5 to enhance reliability in demanding electrical and mechanical environments. By leveraging Eaton’s B-Line series hardware, you gain procurement consistency and faster installation, while protecting long-term performance with proven steel construction and standard 1/2-13 screws.
Product Information
Extended Description
B309ZN Eaton: Eaton B-Line series beam clamps, 2.5625" H x 2.5" L x 0.4670" W, Steel, 1500 Lbs load cap, 1/2”-13 screw size, 0.875" beam/flange width
Product Name
Eaton B-Line series beam clamps
Catalog Number
B309ZN
UPC
781011530334
Product Length/Depth
2.5 in
Product Height
2.5625 in
Product Width
0.467 in
Product Weight
1.33 lb
Certifications
cULus Listed
Beam/flange width
0.875 in
Set screw size
1/2”-13
Special features
Safety factor of 5, setscrew included
Type
Beam clamp
Load capacity
1500 lb
Material
Steel
Feature: 1500 lb load capacity → Business Impact: Supports heavy cables, fixtures, and equipment without deformation or slippage, reducing rework and downtime. Application: Ideal for electrical rooms, data centers, and industrial facilities where high-load support is essential. Long-tail keywords integrated: 1500 lb clamp, heavy-duty beam clamp, high-load support clamps. Feature: 0.875 in beam width compatibility → Business Impact: Fits standard beam flanges used in strut systems, enabling quick retrofits and modular upgrades. Application: Mounting cable trays and lighting to standard beams in retrofit projects. Feature: 1/2-13 set screw → Business Impact: Provides secure grip with repeatable torque, minimizing loosening from vibration. Application: Seismic and equipment-mount installations where reliability matters. Feature: Steel construction → Business Impact: Delivers durable, long-life performance with resistance to wear and impact. Application: Harsh industrial environments requiring dependable hardware. Feature: Safety factor of 5 → Business Impact: Enhances safety margins beyond nominal load, supporting compliance with design standards. Application: Critical electrical installations and heavy-use facilities. Feature: cULus Listed certification → Business Impact: Simplifies regulatory compliance and customer acceptance in North American markets. Application: Retail, commercial, and industrial installations leveraging B-Line components. Feature: Part of Eaton B-Line series → Business Impact: Ensures compatibility with a broad ecosystem of beams, accessories, and fasteners. Application: Streamlined procurement and integration with existing strut systems.
Get a Quick Quote for a Eaton B309ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B309ZN?
Enquire Now
FAQs
For secure installation, align the clamp with the beam flange and use the 1/2-13 setscrew to achieve a tight grip without over-torquing. Ensure the clamp sits flush to prevent cable or tray interference, and verify load distribution remains within the 1500 lb rating. Use compatible Eaton B-Line components for best fit and ease of maintenance.
The B309ZN beam clamp has a load capacity of 1500 lb and uses a 1/2-13 setscrew. This combination provides strong clamping force while accommodating standard strut and beam assemblies. In practice, verify combined load paths and confirm that the clamp remains within the safety factor requirements for the application.
Yes. The B309ZN is designed as part of the Eaton B-Line series, ensuring compatibility with standard B-Line strut channels, beams, and accessories. This compatibility facilitates modular assemblies, easier future upgrades, and streamlined procurement across projects that already utilize Eaton’s strut system.
The B309ZN carries a cULus Listed certification, confirming compliance with safety standards for electrical installations in North America. This certification helps support regulatory approvals, reduces risk during inspections, and improves customer confidence in performance under typical service conditions alongside the product’s safety factor of 5.
ROI comes from faster installation, reduced rework due to secure grip, and lower maintenance costs from reliable vibration resistance. The clamp’s compatibility with existing B-Line components simplifies replacements, while its robust load rating and safety factor minimize the need for frequent hardware changes in busy electrical rooms and data centers.
