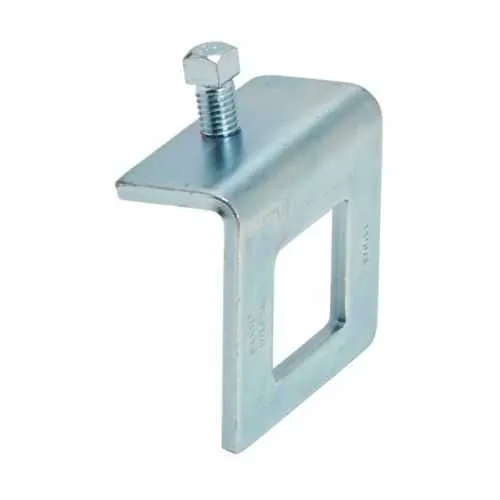

Eaton B314GRN Beam Clamp - 0.625 in Beam Width
Part Number: B314GRN
Quick Summary
Eaton B-Line beam clamps securely fasten 0.625 in beams in rack and support installations. In real-world projects, misalignment and under-rated clamps drive field adjustments and compromise safety. The B314GRN is cULus Listed and designed with a safety factor of 5, delivering reliable performance on dynamic industrial loads and long service life. It is engineered to work with 1-5/8 in channel, providing straightforward, predictable installation in crowded mechanical spaces. This clamp leverages steel construction for durability while staying compatible with Eaton’s strut systems, reducing part variety and simplifying procurement. For project teams, this translates to faster commissioning, lower lifecycle cost, and compliant, safer electrical infrastructure.
Product Information
Extended Description
B314GRN Eaton: Eaton B-Line series beam clamps, 3.4380" H x 0.25" L x 1.75" W, Steel, 900Lbs load cap, 0.625" beam/flange width
Product Name
Eaton B-Line series beam clamps
Catalog Number
B314GRN
UPC
781011530747
Product Length/Depth
0.25 in
Product Height
3.438 in
Product Width
1.75 in
Product Weight
1.05 lb
Certifications
cULus Listed
Beam/flange width
0.625 in
Special features
Safety factor of 5, used with 1-5/8" channel
Type
Beam clamp
Load capacity
900lb
Material
Steel
Beam clamps and accessories section from strut catalog
Beam clamps and accessories section from strut catalog
B-Line engineering services line card
Eaton Specification Sheet - B314GRN
High-load capability and built-in safety margin translate to reduced maintenance. 900 lb load capacity with a safety factor of 5 gives engineers confidence in support for lighting and emergency fixtures, even under vibration and occasional shock in industrial environments. This capability is especially valuable in data centers and factory floors where fixture security is critical. Paragraph continues: The 0.625 in beam width compatibility aligns with standard 1-5/8 in channel, simplifying retrofit and new installations by eliminating adapters and minimizing installation time. Paragraph continues: Steel construction delivers durable, long service life under industrial conditions, lowering replacement costs and maintenance intervals. Paragraph continues: cULus Listed certification supports regulatory compliance for electrical installations, reducing inspection risk in electrical rooms, warehouses, and data centers. Paragraph continues: Compact geometry (3.438 in height, 1.75 in width) enables installation in tight spaces, enabling cleaner routing in crowded mechanical rooms. Paragraph continues: Designed for Eaton B-Line strut systems, with broad compatibility to 1-5/8 in channel, improves procurement efficiency and standardization across projects.
Get a Quick Quote for a Eaton B314GRN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B314GRN?
Enquire Now
FAQs
The B314GRN is designed for 0.625 inch beam width and is compatible with Eaton B-Line strut channels, including the common 1-5/8 inch channel. It clamps securely to the channel and works with a 3.438 inch height profile, facilitating straightforward installation in restricted spaces. Ensure proper alignment and torque to prevent slippage.
The B314GRN provides a 900 lb load capacity and a safety factor of 5, delivering a robust margin for dynamic loads, vibrations, and occasional overload scenarios. This performance supports reliable mounting of lighting fixtures and electrical hardware in industrial facilities, warehouses, and data centers, reducing risk of fixture movement and rework.
Yes. The clamp is intended for lighting and emergency-system mounts within B-Line strut systems. Its 0.625 in beam width compatibility and 900 lb rating support heavy fixtures, while its cULus Listing ensures electrical safety compliance. For best results, verify channel compatibility and follow Eaton's installation guidelines.
The B314GRN is cULus Listed, meeting recognized electrical safety standards. This certification helps streamline regulatory approvals in many regions and reduces inspection risk for electrical installations. Always cross-check your project requirements for additional regional certifications such as CE or IP ratings if applicable.
Using B-Line clamps standardizes hardware across the facility, reducing procurement complexity and inventory, while speeding installation with compatible 1-5/8 in channel. The robust 900 lb capacity and safety factor support longer service life, lowering maintenance and retrofit costs. This translates to faster project completion and lower total cost of ownership over the system lifecycle.
