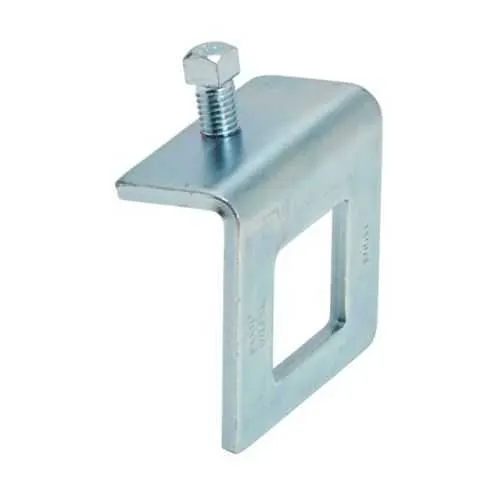

Eaton B314SS4 Beam Clamp for B-Line - cULus Listed
Part Number: B314SS4
Quick Summary
The Eaton B314SS4 beam clamp provides secure attachment of lighting and support systems to 0.625 in beams in industrial framing. Many projects stall when clamps don’t fit standard channels, causing rework and costly delays. The B314SS4 is cULus Listed, reflecting UL safety compliance essential for electrical and mechanical installations. With a 0.625 in beam width capacity and a 900 lb load rating, it improves installation efficiency and design flexibility for lighting and support systems. Engineers will appreciate its compact 3.438 in height and 1.75 in width, enabling tight layouts in cable tray and beam-grid configurations. This combination supports fast field installation and predictable performance in retrofit upgrades.
Product Information
Extended Description
B314SS4 Eaton: Eaton B-Line series beam clamps, 3.4380" H x 0.25" L x 1.75" W, Steel, 900Lbs load, 0.625" beam/flange width
Product Name
Eaton B-Line series beam clamps
Catalog Number
B314SS4
UPC
781011530778
Product Length/Depth
0.25 in
Product Height
3.438 in
Product Width
1.75 in
Product Weight
1.05 lb
Certifications
cULus Listed
Beam/flange width
0.625 in
Special features
Safety factor of 5, used with 1-5/8" channel
Type
Beam clamp
Load capacity
900lb
Material
Steel
Feature: 0.625 in beam width compatibility. Business Impact: Direct fit with standard channel profiles reduces misalignment and rework, shortening project timelines. Application: Ideal for mounting luminaires and equipment to B-Line strut systems in commercial spaces. Feature: 900 lb load capacity. Business Impact: Provides a robust safety margin for heavy fixtures and dynamic loads, ensuring reliable operation over the life of the installation. Application: Suitable for lighting fixtures, sensors, and conduit runs in industrial environments. Feature: Steel construction. Business Impact: Delivers durability and resilience against wear, corrosion, and vibration, lowering maintenance costs. Application: Long-term service in busy plant floors and switchgear rooms. Feature: Safety factor of 5 with 1-5/8" channel. Business Impact: Enhances design safety margins and reduces risk of overload during commissioning and operation. Application: Critical in electrical installations and equipment supports. Feature: Lightweight dimensions (3.438 in x 1.75 in) and weight (1.05 lb). Business Impact: Facilitates fast handling, precise alignment, and easier retrofits in confined spaces. Application: Streamlines installation in ceiling runs and overhead trusses. Feature: cULus Listed certification. Business Impact: Ensures code-compliant, safer installations across facilities, reducing audit findings. Application: Widely used in mechanical and electrical assemblies for building automation and lighting networks.
Get a Quick Quote for a Eaton B314SS4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B314SS4?
Enquire Now
FAQs
The B314SS4 is designed to work with 1-5/8 inch channel, which is the standard for Eaton's B-Line strut systems. This compatibility ensures straightforward mounting without custom adapters and minimizes installation complexity in lighting and equipment runs.
The clamp has a 900 lb load rating and a safety factor of 5 when used with 1-5/8 inch channel. This combination provides a substantial margin for dynamic loads, vibrations, and routine servicing, helping prevent overloading during operation.
Best suited for securing lighting fixtures, sensors, and conduit runs to B-Line strut systems in plant floors, electrical rooms, and support corridors. Its compact profile and lightweight design aid in tight installations and retrofit projects while maintaining alignment and stability.
Yes. The B314SS4 is cULus Listed, indicating compliance with UL safety standards for electrical installations, which helps simplify regulatory approvals and audit readiness on site.
Expect faster installations due to direct-channel fit, reduced rework from misalignment, and fewer field adjustments. The 900 lb rating and safety factor of 5 also reduce maintenance and replacement costs over time, delivering solid long-term value for lighting and equipment support projects.
