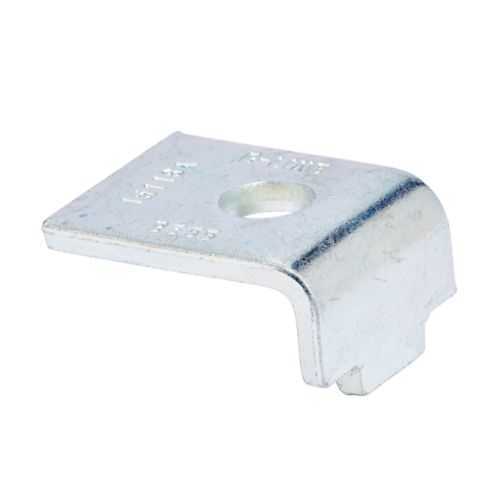

Eaton B355HDG Beam Clamp - cULus Listed, 1200 lb Capacity
Part Number: B355HDG
Quick Summary
Eaton B355HDG beam clamps provide secure support for electrical and mechanical installations in strut systems, from data centers to retrofit projects. Installing clamps that reliably grip a 0.625 in beam without deforming the profile can slow projects and jeopardize safety. The design carries cULus Listed certification, a safety factor of 5, and sturdy steel construction to withstand daily field conditions. Compatible with Eaton B-Line strut channels, these clamps offer fast installation, predictable performance, and reduced maintenance costs for mechanical and electrical installations. They also support safe load distribution and minimize equipment vibration in crowded panels.
Product Information
Extended Description
B355HDG Eaton: Eaton B-Line series beam clamps, 1.84" H x 1.8438" L x 1.6250" W, Steel material, 1200 Lbs load cap, 0.625" beam thickness
Product Name
Eaton B-Line series beam clamps
Catalog Number
B355HDG
UPC
781011534042
Product Length/Depth
1.84375 in
Product Height
1.84 in
Product Width
1.625 in
Product Weight
0.3 lb
Certifications
cULus Listed
Beam thickness
0.625 in
Special features
Safety factor of 5
Type
Beam clamp
Load capacity
1200 lb
Material
Steel
Feature: Precise clamping for 0.625 in thick beams → Business Impact: Maintains structural integrity with minimal beam deformation, reducing rework and field adjustments → Application: Data centers, panel assemblies, and industrial racks. Feature: 1200 lb load capacity with safety factor of 5 → Business Impact: Provides robust margin for dynamic loads and future expansion, lowering retrofit risk → Application: Heavy equipment support in electrical distribution and mechanical support frames. Feature: Steel construction and durable finish → Business Impact: Long-term reliability in indoor environments with consistent performance → Application: Indoor installations in manufacturing and warehousing facilities. Feature: cULus Listed certification → Business Impact: Streamlines code-compliant procurement and inspection processes → Application: North American electrical installations requiring compliance. Feature: Compatibility with Eaton B-Line strut channels → Business Impact: Reduces part variety and accelerates installation timelines → Application: Standardized mounting in strut systems and modular builds.
Get a Quick Quote for a Eaton B355HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B355HDG?
Enquire Now
FAQs
The B355HDG is designed to clip onto beams with a 0.625 inch thickness and works with standard Eaton B-Line strut channels. Ensure the beam thickness matches 0.625 in, align the clamp with the channel grooves, and use compatible fasteners specified for B-Line assemblies. Plan for proper load paths and verify that the applied load stays within the 1200 lb rating and the configured 5 safety factor under expected operating conditions.
The clamp supports up to 1200 lb of load with a safety factor of 5, providing a generous margin for dynamic equipment, vibration, and future expansions. This performance is coupled with cULus Listing to help meet North American electrical installation standards.
The data specifies steel construction without an IP rating or explicit corrosion protection. For outdoor or corrosive environments, evaluate ambient conditions and protective finishes. If required, consider environmental coatings or enclosure strategies and verify post-installation protection aligns with project specifications.
The B355HDG is cULus Listed, which supports compliance with North American electrical codes and inspection requirements. The 5 safety factor offers design margin for reliability in field conditions, aiding procurement decisions and reducing compliance risk during audits.
Eaton B-Line clamps are engineered for tight integration with B-Line strut channels, delivering predictable fit, defined load ratings, and quick installation. The combination of 0.625 in beam compatibility, 1200 lb capacity, and cULus Listed certification helps standardize components, reduce lead times, and improve overall project reliability and maintenance predictability.
