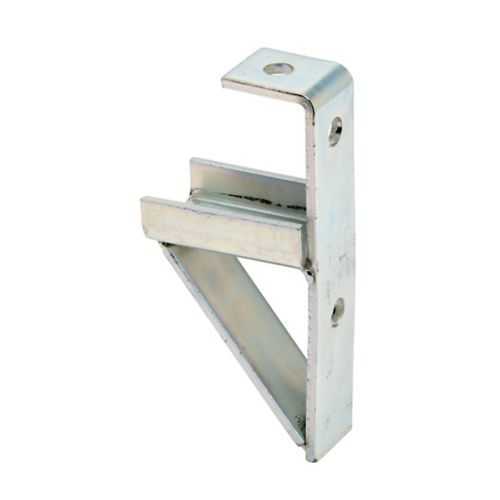

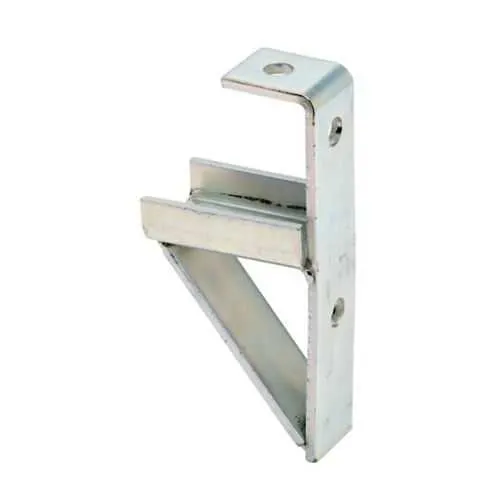

Eaton B370HDG Bracket - Hot-Dipped Galvanized, Fits B22A/B11
Part Number: B370HDG
Quick Summary
The Eaton B370HDG Bracket provides rugged support for B-Line channel systems in electrical enclosures and racking assemblies. Manufacturers often struggle with corrosion on exposed hardware and improper fit when retrofitting aging racks. Note: Certifications such as CE, SIL, or IP ratings are not listed for this product. Featuring hot-dipped galvanized steel, the B370HDG bracket provides superior corrosion resistance while maintaining compatibility with B22A and B11 channels, supporting robust and scalable installations. This combination reduces maintenance costs over the life of the rack and accelerates site commissioning for electrical contractors. Engineers appreciate the straightforward installation and predictable performance under demanding industrial conditions, making it a reliable choice for commercial and heavy industrial environments.
Product Information
Extended Description
B370HDG Eaton: Eaton B-Line series bracket, 8" H x 3.75" L x 1.62" W, Steel, Hot-dipped galvanized, Fits channel B22A&B11
Product Name
Eaton B-Line series bracket
Catalog Number
B370HDG
UPC
781011535100
Product Length/Depth
3.75 in
Product Height
8 in
Product Width
1.62 in
Product Weight
2.66 lb
Certifications
Not Applicable
For channel type
Fits channel B22A & B11
Type
Bracket
Finish
Hot-dipped galvanized
Material
Steel
The B370HDG Bracket is constructed from steel and finished with hot-dipped galvanizing, delivering exceptional corrosion resistance in harsh environments. This feature translates to longer service life and lower replacement costs, which is critical for facilities exposed to moisture, chemicals, or varying temperatures. In practice, the 8 in height, 3.75 in depth, and 1.62 in width provide a stable, vibration-resistant mounting option for B-Line channel runs, reducing rework and misalignment during retrofits. By supporting B22A and B11 channels, the bracket enables scalable installations across multiple rack configurations, from small control panels to large electrical closets. The simple, standardized footprint accelerates assembly in both field and shop environments, cutting installation time and labor costs. Because the bracket is a drop-in compatible accessory, it minimizes compatibility concerns during design reviews and purchasing.
Get a Quick Quote for a Eaton B370HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B370HDG?
Enquire Now
FAQs
The Eaton B370HDG Bracket is designed to work with B-Line channel systems, specifically fitting channels B22A and B11. Its 8 in height, 3.75 in depth, and 1.62 in width provide a stable mounting profile for electrical enclosures, racking, and support assemblies. This compatibility supports scalable layouts from compact panels to larger industrial installations, reducing design complexity and procurement risk.
The hot-dipped galvanized finish delivers superior corrosion resistance in challenging environments, including moisture-prone and chemical-adjacent facilities. This protective coating minimizes rust and degradation over time, extending the bracket’s service life, reducing maintenance intervals, and lowering total cost of ownership for electrical racks and channel installations.
Certifications such as CE, SIL, or IP ratings are not listed for this product. Despite the absence of those certifications, the bracket’s hot-dip galvanizing and steel construction provide reliable performance in standard industry conditions, while its compatibility with B22A and B11 channels supports compliant, safe installations within typical electrical and industrial environments.
The B370HDG bracket measures 8 inches in height, 3.75 inches in depth, and 1.62 inches in width, with an approximate weight of 2.66 lb. Understanding these dimensions ensures proper clearance for adjacent components, enables precise fit within existing channel layouts, and helps prevent mounting interference in dense electrical racks.
The standardized footprint and channel compatibility minimize design changes and part sourcing complexities. By delivering a drop-in solution that fits B22A/B11 channels, field technicians can complete installs faster, reduce trial-and-error adjustments, and lower labor costs. The corrosion-resistant finish also reduces maintenance cycles, yielding long-term cost savings for conveyor, panel, and enclosure applications.
