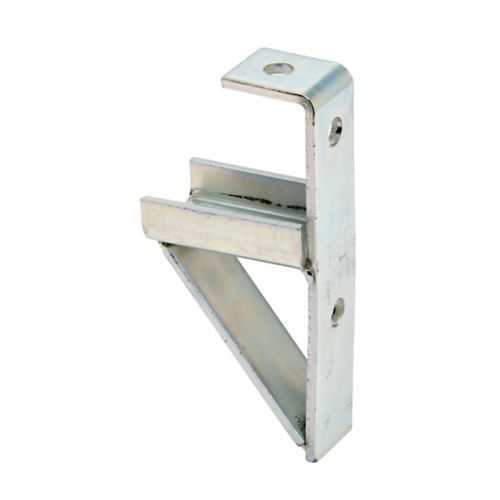

Eaton B370ZN Bracket - Fits channel B22A & B11
Part Number: B370ZN
Quick Summary
Eaton B370ZN Bracket is a B-Line series mounting accessory used to secure components to channel framing in electrical and data-center installations. In practice, installers often confront tight spaces and misaligned channels, leading to instability and rework. Certifications for this part are listed as Not Applicable, but the bracket uses rugged electro-plated steel to withstand typical industrial environments; while no SIL, CE, or IP ratings are specified, it aligns with common channel-system standards. This combination delivers faster, more reliable installs and reduces maintenance cycles, supporting faster project completion and lower total cost of ownership. Used in control panels, electrical enclosures, and rack systems, it enhances layout consistency and simplifies future upgrades.
Product Information
Extended Description
B370ZN Eaton: Eaton B-Line series bracket, 8" H x 3.75" L x 1.62" W, Steel, Electro-plated, Fits channel B22A&B11
Product Name
Eaton B-Line series bracket
Catalog Number
B370ZN
UPC
781011535131
Product Length/Depth
3.75 in
Product Height
8 in
Product Width
1.62 in
Product Weight
2.66 lb
Certifications
Not Applicable
For channel type
Fits channel B22A & B11
Type
Bracket
Finish
Electro-plated
Material
Steel
Channel Nuts and Hardware Catalog Section
Channel Nuts and Hardware Catalog Section
Eaton Specification Sheet - B370ZN
Feature: Steel construction with an electro-plated finish. Business Impact: Delivers durable corrosion resistance and long service life in typical manufacturing environments. Application: Ideal for mounting to B-Line channel systems in electrical panels and automation racks. Feature: Precise dimensions and weight (8 in height, 3.75 in depth, 1.62 in width; 2.66 lb). Business Impact: Provides predictable mounting stability and reduces sag or misalignment during component installation. Application: Supports mid-size components in rugged industrial environments. Feature: Fits channel types B22A & B11. Business Impact: Eliminates the need for adapters and speeds on-site installation, improving installation predictability. Application: Channel mounting across Eaton B-Line systems in control rooms and factory floors. Feature: Documentation availability (catalogs and specification sheets). Business Impact: Improves procurement accuracy and facilitates engineering approvals, reducing design-cycle time. Application: Used in BOMs and maintenance manuals for consistent field installations. Feature: Certifications listed as Not Applicable. Business Impact: Indicates standard-category hardware with no additional regulatory constraints, enabling straightforward inclusion in generic channel assemblies. Application: Suitable for typical indoor industrial applications; verify with project specs for customer-specific compliance.
Get a Quick Quote for a Eaton B370ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B370ZN?
Enquire Now
FAQs
To install the B370ZN Bracket, align the bracket with the B22A or B11 channel, secure using appropriate channel nuts and fasteners per Eaton’s channel system guidelines, and tighten to achieve a flush, stable mounting. Verify the bracket sits square to the channel and recheck fastener torque after initial operation. Refer to the provided catalogs for recommended hardware and torque specs.
The bracket measures 8.0 inches in height, 3.75 inches in length (deep), and 1.62 inches in width, with a weight of 2.66 pounds. This combination supports mid-size components in standard B-Line channel installations while maintaining manageable handling during installation.
The data specifies an electro-plated steel construction with no explicit outdoor or IP rating. Therefore, it is intended for indoor industrial environments and typical factory installations. For outdoor or harsh-wEnvironment applications, verify project-specific requirements and consider additional protective housings or finishes.
Certification field indicates Not Applicable for this part. There are no listed SIL, CE, or IP ratings. If your project requires specific certifications, consult the catalog and datasheets or contact Eaton support to confirm suitability or identify an alternative part with the necessary approvals.
The B370ZN delivers durable, vibration-resistant mounting with corrosion resistance from the electro-plated steel, reducing maintenance and rework. Its compatibility with B22A and B11 channels speeds installation, improves layout consistency in control panels and racks, and supports faster project completion with clearer documentation through Eaton catalogs and datasheets.
