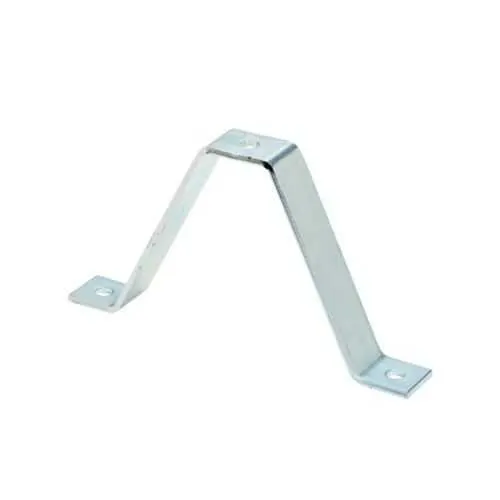

Eaton B383ZN Wall Ladder Bracket - Electro-plated Steel
Part Number: B383ZN
Quick Summary
The Eaton B383ZN is a wall-mounted ladder bracket that supports B-Line channel framing in electrical installations. Engineers often face cramped mounting spaces and corrosion exposure in service panels, which can slow projects and increase maintenance costs. Certifications are Not Applicable for this model, but the steel construction and electro-plated finish deliver reliable durability in demanding environments. By standardizing on Eaton B-Line brackets, you gain proven compatibility with existing channel systems and predictable procurement, reducing lead times and inventory complexity. This approach translates to safer, neater installations and improved long-term performance for industrial control and power distribution applications. It's a practical fit for panel builders and maintenance teams seeking consistent hardware.
Product Information
Extended Description
B383ZN Eaton: Eaton B-Line series bracket, 6.37" H x 11.62" L x 1.62" W, Steel, Electro-plated
Product Name
Eaton B-Line series bracket
Catalog Number
B383ZN
UPC
781011537630
Product Length/Depth
11.62 in
Product Height
6.37 in
Product Width
1.62 in
Product Weight
2 lb
Certifications
Not Applicable
Type
Wall ladder bracket
Finish
Electro-plated
Material
Steel
Channel Nuts and Hardware Catalog Section
Channel Nuts and Hardware Catalog Section
Eaton Specification Sheet - B383ZN
Feature: Steel construction with electro-plated finish. Benefit: Delivers corrosion resistance and long service life in harsh environments. Application: Ideal for wall-mounted channel framing in electrical enclosures. Feature: Precisely sized dimensions and moderate weight. Benefit: 6.37 in height, 11.62 in length, 1.62 in width and 2 lb weight enable easier handling and minimal enclosure fill. Application: Facilitates quick alignment with B-Line channel systems. Feature: Cataloged design and compatibility with B-Line series. Benefit: Streamlines procurement and on-site installation with standard Eaton hardware. Application: Works with Eaton channel nuts and strut fittings for reliable mounting. Feature: Electro-plated finish. Benefit: Enhances durability and corrosion resistance for long-term performance in industrial environments. Application: Suited for electrical panels and wall-mount installations. Feature: Brand-aligned, standardized hardware. Benefit: Reduces procurement variability across sites and accelerates project timelines. Application: Ideal for multi-site electrical installations using Eaton strut systems and B-Line accessories.
Get a Quick Quote for a Eaton B383ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B383ZN?
Enquire Now
FAQs
Mount the bracket on a suitable wall or support surface compatible with the B-Line channel system. Ensure a level installation, use appropriate fasteners for the wall material, and align with the channel framing before securing. The 6.37 in height and 11.62 in length provide a stable support footprint, while the electro-plated steel resists corrosion in typical industrial environments.
Yes. The B383ZN is part of Eaton’s B-Line family and is designed to work with Eaton strut channels and standard channel nuts used in B-Line mounting systems, enabling straightforward integration into existing channel framing and hardware inventories.
The bracket measures 6.37 inches in height, 11.62 inches in length, and 1.62 inches in width, with a weight of 2 pounds. It is made from steel and finished with an electro-plated coating to enhance durability in industrial settings.
The B383ZN is constructed from steel and finished with an electro-plated coating. This combination delivers robust durability and corrosion resistance suitable for wall-mounted ladder bracket applications in electrical panels and related environments.
Official specifications and catalogs are available from Eaton. Downloads include the Channel Nuts and Hardware Catalog Sections and the Eaton Specification Sheet for B383ZN, which provide detailed installation data, compatibility notes, and mounting guidance.
