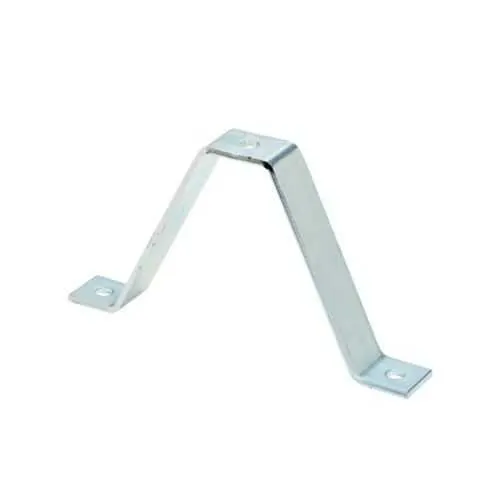

Eaton B384ZN B-Line bracket - Wall ladder bracket (Electro-plated)
Part Number: B384ZN
Quick Summary
Eaton B384ZN B-Line bracket is a wall-mount support for organizing electrical channels in industrial spaces. Engineers often face crowded panels and incompatible accessories that slow install times and raise retrofit costs. Certifications are Not Applicable for this unit, but its electro-plated steel finish provides durable, corrosion-resistant performance. Part of the Eaton B-Line series, this bracket delivers reliable mounting for strut systems in demanding environments while streamlined compatibility supports efficient procurement and installation in industrial enclosures.
Product Information
Extended Description
B384ZN Eaton: Eaton B-Line series bracket, 8.37" H x 13.62" L x 1.62" W, Steel, Electro-plated
Product Name
Eaton B-Line series bracket
Catalog Number
B384ZN
UPC
781011537739
Product Length/Depth
13.62 in
Product Height
8.37 in
Product Width
1.62 in
Product Weight
2.53 lb
Certifications
Not Applicable
Type
Wall ladder bracket
Finish
Electro-plated
Material
Steel
Feature: Electro-plated steel finish delivers corrosion resistance and long-term durability in harsh industrial environments. Benefit: Reduces maintenance costs and extends service life, enabling reliable wall mounting for electrical channel runs in manufacturing facilities. Application: Suitable for steel wall installations in data centers and processing plants where exposure to dust and moisture is common. Feature: Precise dimensions—13.62 in length, 8.37 in height, 1.62 in width—allow predictable spacing and fit within standard B-Line configurations. Benefit: Improves layout accuracy, simplifies planning, and speeds onsite mounting for panel infrastructure projects. Application: Ideal for bulkhead-mounted rack systems and channel ladder assemblies. Feature: Moderate weight of 2.53 lb enables easy handling and secure mounting without overloading support structures. Benefit: Simplifies installation and reduces labor time while maintaining robust support. Application: Quick retrofits in existing enclosures and new builds with standard mounting hardware. Feature: Brand-wide compatibility with Eaton B-Line strut systems ensures seamless integration with existing components. Benefit: Streamlines procurement, minimizes compatibility issues, and lowers total cost of ownership. Application: Use with channel nuts, U-bolts, and related hardware from Eaton catalogs. Feature: Availability of official catalogs and datasheets facilitates compliance and traceability. Benefit: Helps engineers verify fit and performance, supporting audit-ready installations. Application: Refer to Strut Fittings Catalog Section and B384ZN datasheet for installation guidance.
Get a Quick Quote for a Eaton B384ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B384ZN?
Enquire Now
FAQs
To install the B384ZN, prepare a clean mounting surface, align with your wall studs or mounting rails, and use compatible channel nuts or fasteners from Eaton’s catalog. Ensure the bracket sits plumb and secure with proper torque on all fasteners. Consult the official datasheet for exact hole spacing and hardware recommendations.
The B384ZN measures 13.62 inches in length, 8.37 inches in height, and 1.62 inches in width, with a product weight of 2.53 pounds. This size supports standard B-Line channel configurations while maintaining a manageable installation profile.
Yes. The B384ZN is designed as a wall-mount ladder bracket within Eaton’s B-Line system, suitable for organizing and supporting channel runs in industrial electrical enclosures. Its electro-plated steel finish provides durability in typical panel environments.
Certifications for this model are Not Applicable. The product relies on standard industrial construction and the electro-plated steel finish to meet typical robustness requirements rather than specific SIL, CE, or IP listings.
The B384ZN is designed for seamless compatibility with Eaton B-Line strut systems, channel nuts, U-bolts, and related hardware. This ensures quick integration into existing layouts and reduces the risk of misfit components during installation.
