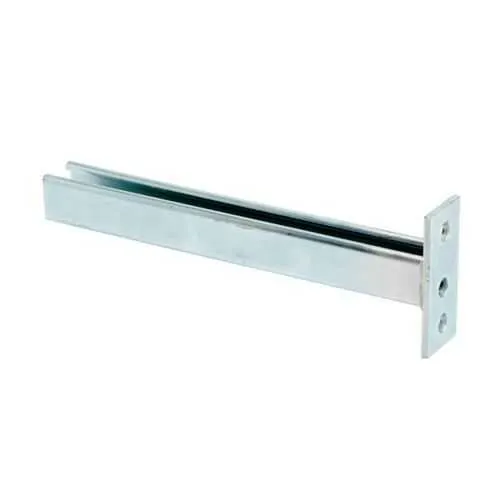

Eaton B409-14ZN B-Line Bracket - Single Channel
Part Number: B409-16GRN
Quick Summary
The Eaton B409-14ZN B-Line bracket is designed to support channel framing in electrical enclosures and support systems. Installers often face alignment challenges and time-consuming mounting in cramped spaces, which this bracket helps to streamline with a compact 14 inch length. Certifications: Not Applicable. Engineered from steel with an electro-plated finish, this single-channel bracket combines durability and corrosion resistance for long service in harsh environments. By standardizing mounting points, it reduces field variance and simplifies sourcing, while aligning with common strut system layouts. This makes it a reliable choice for industrial electrical installations, offering predictable performance in rack, channel, and support assemblies.
Product Information
Extended Description
B409-16GRN Eaton: Eaton B-Line series bracket, 4.62" H x 16" L x 1.62" W, Steel, DURA GREEN
Product Name
Eaton B-Line series bracket
Catalog Number
B409-16GRN
UPC
782051250930
Product Length/Depth
16 in
Product Height
4.62 in
Product Width
1.62 in
Product Weight
3.14 lb
Certifications
Not Applicable
Type
Single channel bracket
Finish
DURA GREEN
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B409-16GRN
Feature: Corrosion-resistant steel with an electro-plated finish provides durable surface protection and long life in demanding environments. Business Impact: Lower maintenance costs and reduced risk of corrosion-related downtime. Application: Ideal for industrial enclosures, production floors, and outdoor-rated configurations where channel mounting is required. Feature: Exact geometry—14 in length, 4.62 in height, 1.62 in width—ensures predictable fit along standard channel runs. Business Impact: Accelerates installation, minimizes field trimming, and improves dimensional accuracy across assemblies. Application: Works with Eaton B-Line strut systems and compatible channel fittings for rapid rack assembly. Feature: Single-channel bracket design supports modular, scalable mounting strategies. Business Impact: Enables fast reconfiguration of panels and rework without swapping hardware. Application: Suitable for automation panels, data centers, and process control rooms that rely on configurable support structures. Feature: Clear documentation and compatibility with Strut catalog sections and accessories. Business Impact: Streamlines procurement, reduces part mismatches, and lowers project risk. Application: Integrates with channel nuts, U-bolts, and hardware from Eaton catalogs for compliant installations. Feature: Moderate weight (2.74 lb) with steel construction balances handling ease with load capacity. Business Impact: Improves on-site ergonomics and reduces crew fatigue during installation. Application: Ideal for mid-scale assemblies in industrial facilities and retrofit projects.
Get a Quick Quote for a Eaton B409-16GRN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B409-16GRN?
Enquire Now
FAQs
The B409-14ZN is ideal for mounting in channel-framed electrical enclosures, support systems, and automation panels. It provides a stable, standardized mounting point along Eaton B-Line strut frames, helping to align components such as racks, panels, and accessories. Its single-channel design simplifies future reconfigurations and reduces field customization, which translates into faster project turnarounds and repeatable installations.
Yes. The B409-14ZN is designed for use with Eaton B-Line strut systems and standard channel hardware like nuts and U-bolts. This compatibility ensures consistent mounting geometry across assemblies, streamlines procurement, and reduces the risk of mismatched parts during retrofit or new-build projects.
Key specifications include a 14 inch length, 4.62 inch height, 1.62 inch width, and a weight of 2.74 pounds, with an electro-plated finish on steel. These dimensions provide predictable alignment within standard channel runs, enabling efficient layout planning, minimized cutting or adjustments, and reliable load distribution in rack-and-channel installations.
According to the product data, certifications are Not Applicable for this bracket. For regulated environments, verify with your compliance team whether your project requires SIL, CE, or IP-rated components, and consider Eaton’s broader catalog for certified alternatives if needed.
Plan a modular layout using the single-channel design to enable quick reconfigurations as requirements evolve. Leverage the electro-plated steel for corrosion resistance in harsh environments, and pair the bracket with compatible Eaton channel nuts and accessories to reduce field time, minimize waste, and cut total cost of ownership over the project life cycle.
