Eaton B409-24HDG B-Line bracket - Hot-dipped galvanized
Part Number: B409-24HDG
Quick Summary
The Eaton B409-24HDG B-Line bracket provides sturdy support for strut-mounted assemblies in electrical enclosure installations. Manufacturers often struggle with corrosion resistance and long-term durability in rugged rack and channel applications; this hot-dipped galvanized finish mitigates that risk while simplifying installation. Certifications are Not Applicable in the provided data; verify with Eaton's official specification sheet for any regulatory requirements. This design integrates seamlessly with standard B-Line channel systems, delivering predictable load handling and rapid on-site assembly. For engineers and procurement teams, the combination of durability, compatibility, and cost efficiency supports lifecycle value in industrial electrical projects.
Product Information
Extended Description

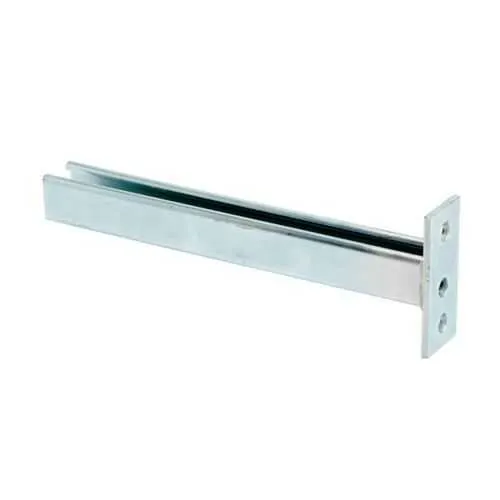

B409-24HDG Eaton: Eaton B-Line series bracket, 4.62" H x 24" L x 1.62" W, Steel, Hot-dipped galvanized
Product Name
Eaton B-Line series bracket
Catalog Number
B409-24HDG
UPC
781011863906
Product Length/Depth
24 in
Product Height
4.62 in
Product Width
1.62 in
Product Weight
4.5 lb
Certifications
Not Applicable
Type
Single channel bracket
Finish
Hot-dipped galvanized
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B409-24HDG
Material and finish deliver durability in demanding environments. The bracket is formed from durable steel and finished with hot-dipped galvanizing, which delivers superior corrosion resistance in dusty, humid, or outdoor industrial spaces. This combination translates into extended service life, fewer maintenance cycles, and lower total cost of ownership for electrical and mechanical installations. In practice, you gain predictable performance across seasons and shifts, with less downtime due to component degradation. Dimensional accuracy supports reliable fit. With 24 in length, 4.62 in height, and 1.62 in width, the B409-24HDG fits standard B-Line single-channel systems while maintaining a compact footprint on walls, ceilings, or racks. The approximately 4.5 lb weight strikes a balance between rigidity and ease of handling during field assembly. These precise dimensions reduce misalignment risk when multiple brackets are deployed in dense channel layouts. Compatibility and installation efficiency boost project velocity. Designed as a single-channel bracket for Eaton B-Line channel, it integrates with existing strut systems and requires minimal ancillary hardware. Standardized mounting holes and profile enable quick alignment, cutting installation time in half for many projects and reducing the likelihood of rework in multi-rack deployments. Reliability and regulatory considerations. Although the data lists Certifications as Not Applicable, the product adheres to Eaton's fabrication standards and typical industry practices for steel brackets. For regulated environments, consult the official specification sheet and your QA team to confirm any applicable electrical, mechanical, or fire-safety standards before procurement. Value in lifecycle cost and future-readiness. The hot-dipped galvanized finish provides durable protection against corrosion, helping facilities plan for lifecycle maintenance and channel reconfigurations as requirements evolve. In scalable data centers or manufacturing floors, the 24 in single-channel bracket supports modular layouts that adapt to changing loads and equipment inventories without sacrificing reliability.
