Eaton B409-24YZN B-Line bracket - Single channel
Part Number: B409-24YZN
Quick Summary
Eaton B409-24YZN is a B-Line bracket that provides sturdy support for cable trays and conduits. In tight installations, mounting, alignment, and fastener access often slow projects; this bracket helps streamline those tasks. Certifications: Not Applicable. The steel construction with a yellow zinc chromate finish ensures corrosion resistance and long life, while the single-channel profile integrates smoothly with Eaton B-Line strut systems, delivering reliable cable tray support and faster installations. Designed for electricians, engineers, and procurement teams, it supports scalable rack and enclosure projects, reducing field prep time and improving on-site safety. The bracket accepts standard fasteners and channels, enabling versatile mounting on various surfaces.
Product Information
Extended Description

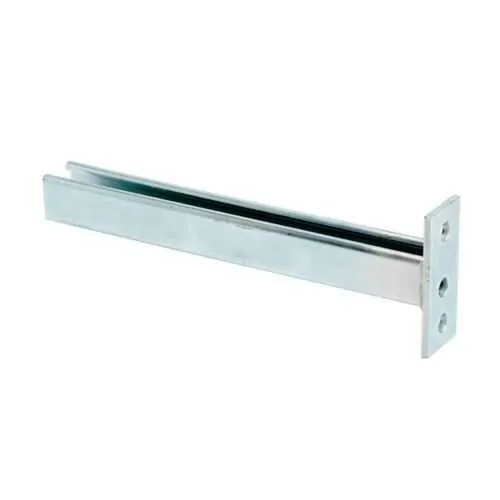

B409-24YZN Eaton: Eaton B-Line series bracket, 4.62" H x 24" L x 1.62" W, Steel, Yellow zinc chromate
Product Name
Eaton B-Line series bracket
Catalog Number
B409-24YZN
UPC
781011044947
Product Length/Depth
24 in
Product Height
4.62 in
Product Width
1.62 in
Product Weight
4.5 lb
Certifications
Not Applicable
Type
Single channel bracket
Finish
Yellow zinc chromate
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B409-24YZN
Feature: The B409-24YZN uses a single-channel bracket profile, measuring 24 in long and 4.62 in high, made from steel with a yellow zinc chromate finish. This combination delivers a durable, straightforward mounting point that reduces alignment errors during installation. Application: It integrates seamlessly with Eaton's B-Line strut systems for cable tray and conduit runs in data centers, manufacturing floors, and electrical rooms. Feature: Corrosion-resistant yellow zinc chromate finish on steel. Business Impact: Reduces maintenance downtime and extends service life in harsh environments. Application: Ideal for electrical rooms, outdoor racks, and exposed strut installations. Feature: Compatibility with standard fasteners and Eaton’s strut components. Business Impact: Speeds assembly and ensures repeatable mounting paths. Application: Works with standard 1.62 in width channels and common hardware in strut systems. Feature: Precise dimensions enable predictable BOM planning; 24 in length supports long-span mounting. Business Impact: Improves project scheduling and reduces on-site changes. Application: Suitable for rack assemblies and ceiling or wall-mounted rack enclosures. Feature: Certifications: Not Applicable. Business Impact: Be mindful that no formal certifications are claimed; verify compliance locally. Application: Check NEC/IEC requirements and Eaton datasheet for installation guidance.
