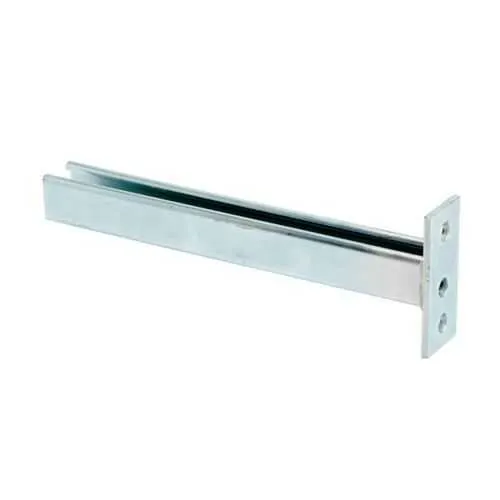

Eaton B409-30ZN Bracket - Electro-plated Steel
Part Number: B409-30ZN
Quick Summary
B409-30ZN is an Eaton B-Line bracket that supports strut-channel systems in electrical installations. End-user pain often comes from misaligned brackets and corrosion, triggering rework and downtime. Certifications are not applicable for this item, but its steel body with an electro-plated finish resists wear in industrial environments. Designed as a single-channel bracket, it pairs with standard B-Line accessories to streamline installation and improve lifecycle value across data centers, manufacturing floors, and facilities. This combination delivers reliable support for cable trays, conduits, and equipment mounting, reducing field adjustments and accelerating project timelines. With a familiar fit and consistent dimensions, procurement and stocking are simplified, enabling faster and more predictable installations.
Product Information
Extended Description
B409-30ZN Eaton: Eaton B-Line series bracket, 4.62" H x 30" L x 1.62" W, Steel, Electro-plated
Product Name
Eaton B-Line series bracket
Catalog Number
B409-30ZN
UPC
781011863890
Product Length/Depth
30 in
Product Height
4.62 in
Product Width
1.62 in
Product Weight
5.4 lb
Certifications
Not Applicable
Type
Single channel bracket
Finish
Electro-plated
Material
Steel
Feature: Robust dimensions and weight provide a predictable mounting footprint that aligns with standard strut-channel grids, reducing alignment errors and rework. Business Impact: Streamlined installation and consistent mounting performance translate to faster project kickoffs and lower field adjustments. Application: Data centers, electrical rooms, and manufacturing lines benefit from repeatable, scalable bracket placements. Feature: Electro-plated steel finish delivers corrosion resistance in typical indoor environments. Business Impact: Lower maintenance costs and longer service life for critical mounting points, reducing total cost of ownership. Application: Environments with moderate exposure to moisture or humidity, such as service bays and sheltered outdoor areas. Feature: Single-channel design ensures straightforward compatibility with standard B-Line accessories, minimizing part diversity. Business Impact: Faster procurement, fewer SKUs to manage, and simpler field assembly. Application: System integrators deploying cable management and equipment mounting along strut channels. Feature: Availability of Eaton catalogs and specification sheets supports compliant sourcing. Business Impact: Clear documentation facilitates approval workflows and ensures correct fit with channel nuts and fasteners. Application: Procurement, engineering, and compliance teams in facilities management. Feature: Manageability and weight of 5.4 lb enable safe handling and installation with common tools. Business Impact: Reduced manual handling risk and quicker on-site setup. Application: Assembly on elevated racks, mezzanines, and equipment racks where practical lifting is a factor.
