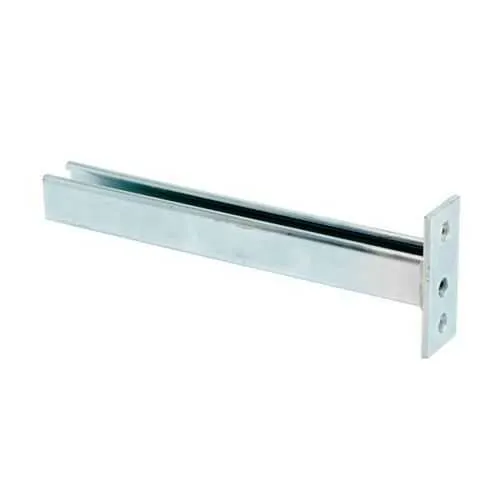

Eaton B409-6AL B-Line bracket - Single channel bracket
Part Number: B409-6AL
Quick Summary
The Eaton B409-6AL B-Line bracket is a reliable mounting solution for strut channel systems, delivering secure support for electrical components. In practice, engineers struggle with space constraints and misalignment in crowded panel layouts, making installation time-consuming and error-prone. Certifications: Not Applicable. However, the bracket's steel core with an aluminum finish provides durable performance for standard B-Line channel assemblies. When paired with Eaton strut fittings and channel nuts, it supports scalable, maintenance-friendly electrical infrastructure and clean, organized conduit routing.
Product Information
Extended Description
B409-6AL Eaton: Eaton B-Line series bracket, 4.62" H x 6" L x 1.62" W, Steel, Aluminum
Product Name
Eaton B-Line series bracket
Catalog Number
B409-6AL
UPC
781011853891
Product Length/Depth
6 in
Product Height
4.62 in
Product Width
1.62 in
Product Weight
1.52 lb
Certifications
Not Applicable
Type
Single channel bracket
Finish
Aluminum
Material
Steel
Feature: Precision dimensions and a compact footprint (6 in length x 4.62 in height x 1.62 in width, 1.52 lb) enable secure, vibration-resistant mounting in tight enclosures. Business Impact: Reduces field-adjustment time and rework while improving layout predictability. Application: Ideal for small-to-medium electrical assemblies in Eaton B-Line channel systems. Feature: Steel core with aluminum finish delivers durability and corrosion resistance in typical industrial environments. Business Impact: Extends service life and minimizes maintenance costs. Application: Suitable for long-term deployments in panels, cable tray areas, and fixture supports. Feature: Compatibility with standard strut fittings and channel nuts for quick installation. Business Impact: Accelerates commissioning, lowers labor costs, and improves installation consistency. Application: Fits Eaton Strut Systems catalogs and leverages existing hardware inventories. Feature: Single-channel bracket design with catalog reference B409-6AL. Business Impact: Simplifies purchasing, reduces part-number confusion, and streamlines BOM management. Application: Use in applications requiring a reliable one-piece mounting solution for a single channel.
