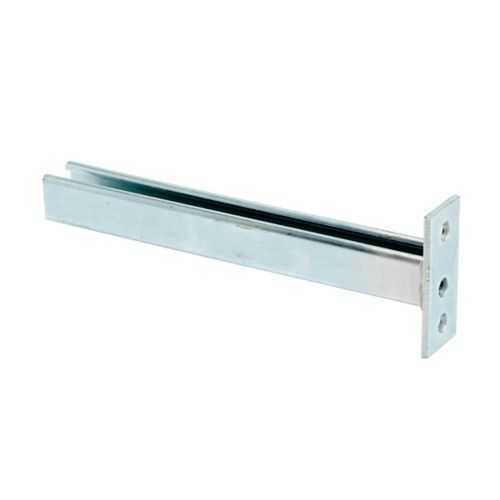

Eaton B409-9HDG Single-channel bracket - Galvanized
Part Number: B409-9HDG
Quick Summary
Eaton B409-9HDG is a single-channel bracket used to secure B-Line strut systems in electrical enclosures and industrial racks. This bracket helps installers avoid mounting drift and corrosion in tight spaces and busy service environments. While no CE, SIL, or IP certifications are listed for this part, it uses hot-dipped galvanized steel for durable performance in damp or dusty plant conditions and pairs with standard B-Line hardware. The design emphasizes quick, repeatable installations, reducing field labor and rework. By aligning with common strut profiles, it supports scalable rack layouts and dependable equipment support across facilities, enabling safer, compliant electrical and mechanical installations.
Product Information
Extended Description
B409-9HDG Eaton: Eaton B-Line series bracket, 4.62" H x 9" L x 1.62" W, Steel, Hot-dipped galvanized
Product Name
Eaton B-Line series bracket
Catalog Number
B409-9HDG
UPC
781011863807
Product Length/Depth
9 in
Product Height
4.62 in
Product Width
1.62 in
Product Weight
1.95 lb
Certifications
Not Applicable
Type
Single channel bracket
Finish
Hot-dipped galvanized
Material
Steel
Channel Nuts and Hardware Catalog Section
Channel Nuts and Hardware Catalog Section
Eaton Specification Sheet - B409-9HDG
Hot-dipped galvanized steel construction delivers long-term corrosion resistance, reducing maintenance costs and downtime in harsh environments. This translates to longer service life for mounting brackets in manufacturing plants, data centers, and outdoor equipment rooms. The bracket remains compatible with standard B-Line hardware, easing part selection and field assembly. With a 9 in length, 4.62 in height, and 1.62 in width, the B409-9HDG provides a compact, stable mounting footprint. At 1.95 lb, it offers solid rigidity without imposing excessive weight on the strut system. These dimensions align with common B-Line channel configurations, reducing fitment risk and rework. Designed as a single-channel bracket, it streamlines channel routing and attachment with standard Eaton channel nuts and U-bolts. This compatibility minimizes purchasing complexity and ensures consistent load paths across assemblies. The part integrates seamlessly into modular rack layouts, supporting scalable enclosure designs. Installation efficiency is boosted by the straightforward shape and compatible dimensions, enabling faster site assembly and fewer alignment issues. The hot-dipped finish keeps sensitivities low to corrosion during installation, especially in damp environments. This enables faster commissioning and earlier project handover. Industry insiders value the B409-9HDG for its balance of performance and value in standard electrical and mechanical installations. It is a practical choice for control rooms, plant floors, and service bays where reliable support and easy maintenance matter.
Get a Quick Quote for a Eaton B409-9HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B409-9HDG?
Enquire Now
FAQs
Install by aligning the bracket with the standard B-Line channel, insert compatible channel nuts or u-bolts, and secure with nuts and washers as specified. This keeps the load path continuous along the strut system and minimizes field adjustments.
Yes. The B409-9HDG is designed for use with typical B-Line strut hardware, including channel nuts and U-bolts, ensuring seamless integration with Eaton’s modular channel components.
The bracket measures 9 in in length, 4.62 in in height, and 1.62 in in width, with a weight of 1.95 lb, crafted from steel and finished in hot-dipped galvanized coating.
Certifications are listed as Not Applicable for this part. It is a standard B-Line bracket made from galvanized steel for durable performance, without designated CE, SIL, or IP markings.
Common applications include mounting components in electrical enclosures, control rooms, and industrial facilities, aligning with B-Line strut systems for reliable support of panels, cable management, and equipment mounting.
