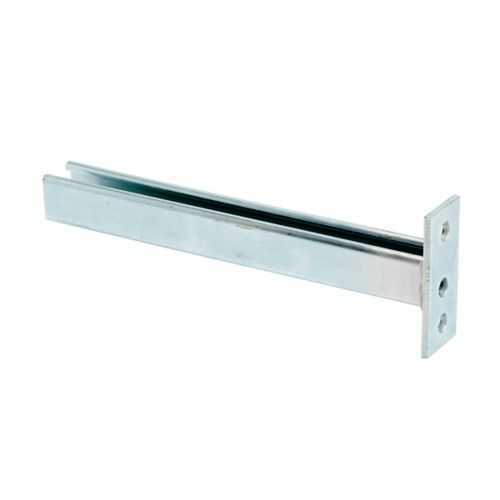

Eaton B409-9ZN B-Line bracket - Electro-plated
Part Number: B409-9ZN
Quick Summary
Eaton B409-9ZN B-Line bracket is a steel, electro-plated support for channel strut systems. This connector is designed to simplify mounting in electrical and mechanical installations, reducing assembly time and field adjustments. Many projects struggle with misfit brackets that cause alignment issues and downtime; a precise, compatible bracket helps maintain structural integrity and safer routing. Certifications listed for this part include Not Applicable; always consult the Eaton datasheet to confirm regulatory requirements for your region (CE, IP, SIL) per project specs. With its single-channel design and standardized dimensions, it integrates seamlessly with Eaton strut fittings and accessories, delivering consistent performance across channels and improving procurement consistency and total cost of ownership.
Product Information
Extended Description
B409-9ZN Eaton: Eaton B-Line series bracket, 4.62" H x 9" L x 1.62" W, Steel, Electro-plated
Product Name
Eaton B-Line series bracket
Catalog Number
B409-9ZN
UPC
781011549381
Product Length/Depth
9 in
Product Height
4.62 in
Product Width
1.62 in
Product Weight
1.95 lb
Certifications
Not Applicable
Type
Single channel bracket
Finish
Electro-plated
Material
Steel
Feature: The bracket measures 9 in long by 4.62 in high by 1.62 in wide. Impact: Establishes a consistent mounting footprint that improves alignment and reduces on-site modification. Application: Pair with standard Eaton B-Line strut channels to support equipment racks, panels, and small enclosures in electrical rooms. Feature: Made from steel with an electro-plated finish. Impact: Provides corrosion resistance and extended service life in industrial environments. Application: Suited for damp or dusty facilities and long-term installations where reliability matters. Feature: Single channel bracket design. Impact: Simplifies installation and reduces hardware requirements, lowering procurement complexity. Application: Ideal for modular, clean installations along single-channel runs in control panels and mechanical rooms. Feature: Weight of 1.95 lb. Impact: Delivers robust rigidity without excessive mass, enabling safer overhead or wall-mounted installations. Application: Supports equipment and fixtures in overhead rail systems and compact layouts. Feature: Catalog Number B409-9ZN and UPC 781011549381 included. Impact: Ensures procurement accuracy and traceability for project documentation. Application: Facilitates quick ordering and precise inventory management within scoping and purchasing workflows. Feature: Finish and compatibility. Impact: Electro-plated steel aligns with common strut fittings and accessories, reducing compatibility risk. Application: Streamlines integration with Eaton Strut Fittings Catalog Sections for faster design-to-install workflows.
