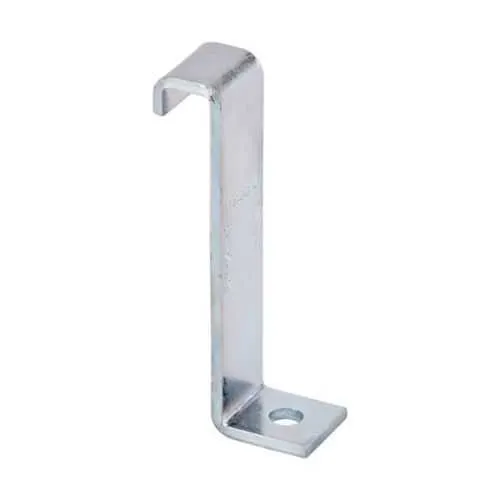

Eaton B410-11ZN Bracket - Channel Hanger 11 Gauge
Part Number: B410-11ZN
Quick Summary
The Eaton B410-11ZN Bracket is a durable channel hanger designed for B-Line strut systems in electrical and industrial installations. It provides secure mounting for equipment racks and panels where space is tight and cable routing matters. While this part lists Certifications as Not Applicable, the bracket's 11 gauge steel construction and electro-plated finish deliver reliable strength and corrosion resistance for typical indoor environments. The design emphasizes straightforward compatibility with Eaton's strut catalog, precise dimensions, and fast installation, helping engineers reduce field adjustments and procurement churn. For procurement teams, this translates to predictable performance, scalable mounting options, and improved project timelines without compromising safety or compliance.
Product Information
Extended Description
B410-11ZN Eaton: Eaton B-Line series bracket, 3.25" H x 0.81" L x 1.62" W, Steel, Electro-plated, 11 Gauge
Product Name
Eaton B-Line series bracket
Catalog Number
B410-11ZN
UPC
781011549619
Product Length/Depth
0.81 in
Product Height
3.25 in
Product Width
1.62 in
Product Weight
13.4 lb
Certifications
Not Applicable
Type
Channel hanger bracket for b12
Finish
Electro-plated
Material
Steel
Material gauge
11 Gauge
Eaton B410-11ZN bracket uses 11 gauge steel with an electro-plated finish, delivering a combination of robustness and corrosion resistance for indoor industrial environments. The electro-plating helps resist moisture, salts, and incidental abrasion, extending component life in service racks and electrical cabinets. Practical impact: longer intervals between replacements and lower maintenance costs. In applications like panel mains and data-center racks, this material discipline translates into sustained performance under typical vibration and load. With a height of 3.25 in, width of 1.62 in, and depth of 0.81 in, the B410-11ZN bracket fits standard B-Line channel profiles while maintaining a compact footprint. It weighs 13.4 lb, offering substantial rigidity without excessive deflection. This sizing supports heavier assemblies or multiple cable trays, reducing the need for supplementary brackets. In the field, installers benefit from predictable fitment and fewer on-site adjustments. Designed as a channel hanger bracket for B12 and related B-Line channels, the B410-11ZN aligns with Eaton's strut fittings catalog, enabling seamless integration with existing infrastructure. The straightforward mounting geometry minimizes setup time and permits use with common fasteners and channel nuts. For retrofits or new builds, the bracket supports modularity and scalable expansion, helping teams meet tight project timelines and ensure consistent electrical support across panels. Certifications field shows Not Applicable, reflecting catalog labeling rather than a lack of performance. The bracket adheres to standard B-Line electrical support practices and is compatible with the Eaton ecosystem, which simplifies procurement and warranty considerations. While it is not rated for SIL, CE, or IP-specific certifications in this spec, the part's construction and finish meet common industry expectations for racking and support hardware used in controlled industrial environments. Documentation supports design and installation, including the Strut Fittings Catalog Section and the Eaton Specification Sheet for B410-11ZN. Users can access the catalog sections for channel nuts and hardware and view the official spec sheet to confirm dimensions, finish, and compatibility. This readily available literature reduces design risk and accelerates approval cycles by providing authoritative, model-specific data.
Get a Quick Quote for a Eaton B410-11ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B410-11ZN?
Enquire Now
FAQs
The B410-11ZN is a channel hanger bracket designed for Eaton B-Line strut systems and supports B12 channel profiles. It fits standard B-Line channel hardware, enabling straightforward integration into existing electrical and industrial mounting frameworks with no need for custom adapters. Use with compatible channel nuts and fittings for reliable, repeatable assemblies in racks and enclosures.
Installation begins with aligning the bracket to the B-Line channel, selecting appropriate fasteners, and seating the channel nuts in the slot. The 11 gauge steel provides rigidity, while the electro-plated finish reduces corrosion risk during service. Tighten per manufacturer torque recommendations and verify alignment before adding cables or equipment to ensure a clean, secure mounting system.
The spec indicates an electro-plated finish and indoor-oriented design, with certifications listed as Not Applicable. It is not rated for outdoor or IP-rated exposure in this data. For environments with moisture, chemicals, or weather exposure, consider enclosure-specific or corrosion-resistant alternatives and verify environmental requirements before deployment.
Key specs include 3.25 in height, 1.62 in width, 0.81 in depth, 11 gauge steel construction, electro-plated finish, weight 13.4 lb, and Catalog Number B410-11ZN. UPC is 781011549619. Material is steel with an electro-plated finish, designed as a channel hanger bracket for B12 profile within Eaton’s B-Line system.
Official documentation is available via Eaton’s downloads: Strut Fittings Catalog Section, Strut Fittings Catalog Section (channel nuts and hardware), and the Eaton Specification Sheet for B410-11ZN. Access to these PDFs supports accurate design, verification of dimensions, and quick reference during procurement and installation.
