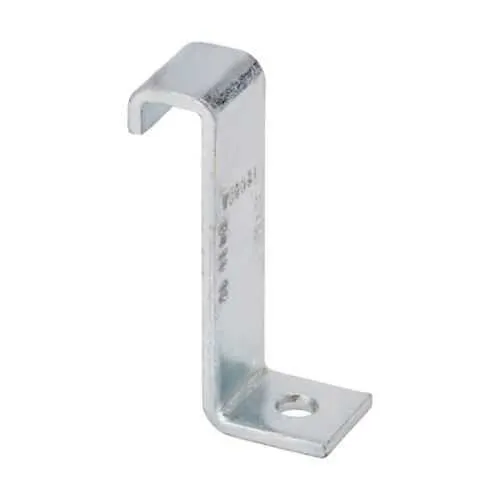

Eaton B410-12ZN B-Line bracket - 11 Gauge Steel
Part Number: B410-12ZN
Quick Summary
The Eaton B-Line series bracket provides reliable support for B12 channel installations in electrical enclosures. On crowded racks, installers often battle misfit brackets and slow mounting, which this bracket helps mitigate with a precise fit and solid strength. Notably, it uses steel, 11-gauge construction with an electro-plated finish to deliver corrosion resistance in harsh environments and a long service life. Certifications are not listed for this part; always verify project standards and consult Eaton catalogs for any regulatory requirements. When paired with B12 channel systems and standard hardware, it offers clear business value by speeding installs, reducing maintenance needs, and enhancing overall system resilience.
Product Information
Extended Description
B410-12ZN Eaton: Eaton B-Line series bracket, 2.43" H x 0.81" L x 1.62" W, Steel, Electro-plated, 11 Gauge
Product Name
Eaton B-Line series bracket
Catalog Number
B410-12ZN
UPC
781011549657
Product Length/Depth
0.81 in
Product Height
2.43 in
Product Width
1.62 in
Product Weight
11.2 lb
Certifications
Not Applicable
Type
Channel hanger bracket for b12
Finish
Electro-plated
Material
Steel
Material gauge
11 Gauge
11-gauge steel with an electro-plated finish increases load-bearing capability and resists corrosion, delivering longer life in outdoor or damp environments. This translates to reduced maintenance cycles and lower lifecycle costs in established B-Line channel systems. The compact footprint—2.43 in height, 1.62 in width, and 0.81 in depth—enables a tight mounting profile, improving cable routing and minimizing interference with adjacent components. An 11.2 lb weight provides sturdy stabilization for hanging equipment and conduits, reducing vibration-related wear and enhancing overall system stability during operation. Compatibility and installation are streamlined by its purpose-built design as a channel hanger bracket for B12, aligning with Eaton Strut Fittings Catalog Sections for quick sourcing and consistent performance. If your project uses non-B-Line channels or requires formal certifications, consult the related Eaton datasheets to identify the best alternative parts and maintain compliance.
Get a Quick Quote for a Eaton B410-12ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B410-12ZN?
Enquire Now
FAQs
The B410-12ZN is designed specifically for B12 strut channels and pairs with standard channel nuts, bolts, and hardware from Eaton’s Strut Fittings Catalog. Begin by aligning the bracket with the B12 channel, insert appropriate fasteners, and tighten to a snug specification using conventional hand tools. Confirm that the electro-plated finish remains intact and that the bracket sits flush without mounting interference. For complex racks, reference Eaton’s catalog sections to select compatible hardware and ensure vibration-free operation.
Key specs include a height of 2.43 in, width of 1.62 in, depth of 0.81 in, and an 11-gauge steel construction with an electro-plated finish. The unit weighs 11.2 lb, offering strong support for conduit, cables, and equipment mounted to B12 channels. Material and finish choices provide corrosion resistance suitable for typical industrial environments. When sizing for a given load, always consult Eaton’s official datasheets for any published load ratings and installation guidelines.
Yes, the bracket is purpose-built as a channel hanger for B12 strut channels, making it well-suited for electrical rack mounting and mechanical support tasks in control panels, switchgear, and aisle-way installations. Its compact footprint helps manage space within crowded enclosures, while the 11-gauge steel construction ensures rigidity under normal mechanical loads. For high-load or seismic applications, review project-specific requirements and Eaton catalog guidance to determine if additional bracing or alternative components are needed.
According to Eaton’s product data, Certifications for this bracket are listed as Not Applicable. For projects with strict regulatory requirements, verify against your organization’s standards and consult Eaton’s specification sheets and catalogs to identify any applicable certifications or alternative parts that meet your compliance needs.
Using the B410-12ZN bracket can shorten installation times via a purpose-built, ready-to-mount design for B12 channels, reducing labor costs and risk of misalignment. Its robust 11-gauge steel, electro-plated finish, and precise dimensions contribute to fewer maintenance calls due to corrosion or loosening of conduits and equipment. Compatibility with Eaton’s Strut Fittings Catalog also simplifies procurement and design consistency across projects, supporting faster project delivery and improved overall system reliability.
