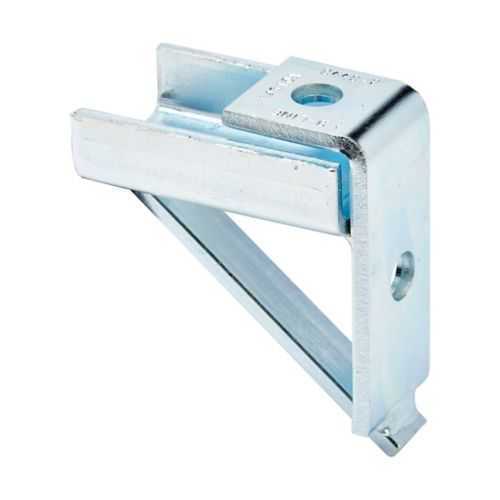

Eaton B-Line B440ZN Bracket - Fits Channel B52 & B54
Part Number: B440ZN
Quick Summary
The Eaton B-Line B440ZN Bracket is designed to securely mount B-Line channel fittings in industrial enclosures and panels. It provides a robust, electro-plated steel support that aligns quickly with B52 and B54 channels. A common challenge is achieving precise alignment in crowded racks without compromising stability; this bracket fixes cleanly to the channel, resisting vibration and deflection. Certifications: Not Applicable; however, ensure your installation meets site safety standards and that the overall strut system complies with your CE, SIL, or IP requirements as required by your project. By integrating with existing B-Line components, this accessory speeds assembly, reduces commissioning time, and enhances long-term reliability in demanding environments.
Product Information
Extended Description
B440ZN Eaton: Eaton B-Line series bracket, 3.87" H x 3.75" L x 1.62" W, Steel, Electro-plated, Fits channel B52&B52
Product Name
Eaton B-Line series bracket
Catalog Number
B440ZN
UPC
781011552633
Product Length/Depth
3.75 in
Product Height
3.87 in
Product Width
1.62 in
Product Weight
1.77 lb
Certifications
Not Applicable
For channel type
Fits channel B52 & B52
Type
Bracket for b52 and b54
Finish
Electro-plated
Material
Steel
Feature → Business Impact → Application: Fits channel B52 and B54 for quick, secure mounting; reduces misalignment and rework in panel assemblies, speeding installation in data centers and industrial cabinets. Application: Use this bracket where reliable channel support is needed to maintain clean cable routing and structural integrity. Feature → Business Impact → Application: Electro-plated steel finish provides corrosion resistance in typical industrial environments; lowers maintenance costs and extends service life in dusty or humid facilities. Application: Suitable for factory floors, food and beverage plants, and outdoor-rated panels where exposure is a concern. Feature → Business Impact → Application: Steel construction delivers high strength with predictable tolerances; minimizes deflection under load and vibration. Application: Ideal for high-density installations and multi-rack assemblies. Feature → Business Impact → Application: Compact dimensions (3.87 in H x 3.75 in L x 1.62 in W) and weight (1.77 lb) enable neat layouts and simpler logistics. Application: Supports efficient planning and shipping for large-scale projects. Feature → Business Impact → Application: Compatibility with Strut Fittings Catalog sections simplifies procurement and integration. Application: Streamlines sourcing and reduces lead times in mass-install projects.
Get a Quick Quote for a Eaton B440ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B440ZN?
Enquire Now
FAQs
The B440ZN is designed to fit B-Line channel types B52 and B54. For installation, align the bracket with the channel flanges, secure with compatible fasteners, and verify that the bracket seats firmly to minimize movement. Its 3.87 in height, 3.75 in length, and 1.62 in width help maintain a neat, stable mounting plane in crowded panels.
Key dimensions are 3.87 in in height, 3.75 in in length, and 1.62 in in width, with a weight of 1.77 lb. The catalog number is B440ZN and the finish is electro-plated steel, providing a strong, corrosion-resistant mounting solution for B52/B54 channels.
Yes, the B440ZN uses steel with an electro-plated finish designed for durability and vibration resistance. In high-vibration environments, ensure snug fastener torque and proper channel alignment to minimize loosening. Pairing with compatible strut fittings further enhances stability and reduces wear over time.
The B440ZN simplifies mounting by providing a precise fit to B52/B54 channels, reducing alignment checks and rework. Its robust steel construction minimizes maintenance needs, while the electro-plated finish resists corrosion. For multi-rack deployments, standardized brackets speed procurement and ensure consistent, repeatable installations across racks.
Certifications are listed as Not Applicable for this specific bracket. However, practitioners should ensure overall system compliance with project requirements, including CE, SIL, or IP standards as applicable to the installation. Always verify that the complete strut system meets your regulatory and safety guidelines.
