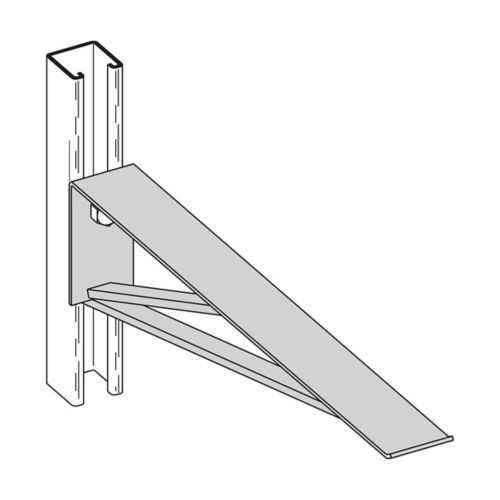

Eaton B449-4ZN Cable Saddle Bracket - 13 Gauge Electro-plated Steel
Part Number: B449-4ZN
Quick Summary
The Eaton B449-4ZN cable saddle bracket securely supports strut-based assemblies in electrical installations. Engineers often contend with vibration, misalignment, and crowded enclosures, and this bracket provides a robust, ready-to-install solution. Note that no SIL, CE, or IP certifications are listed for this part; it uses 13-gauge steel with an electro-plated finish to deliver dependable corrosion resistance in demanding environments. Designed for the Eaton B-Line series and common channel hardware, it helps streamline installation, reduces rework, and support scalable cable management strategies across facilities, including manufacturing floors, data centers, and process plants. For project teams seeking predictable throughput, this bracket aligns with standard mounting patterns and minimizes tool requirements during retrofit or new-build deployments.
Product Information
Extended Description
B449-4ZN Eaton: Eaton B-Line series bracket, 2.37" H x 4.5" L x 1.62" W, Steel, Electro-plated, 13 Gauge
Product Name
Eaton B-Line series bracket
Catalog Number
B449-4ZN
UPC
781011554637
Product Length/Depth
4.5 in
Product Height
2.37 in
Product Width
1.62 in
Product Weight
0.74 lb
Certifications
Not Applicable
Type
Cable saddle bracket
Finish
Electro-plated
Material
Steel
Material gauge
13 Gauge
Channel Nuts and Hardware Catalog Section
Channel Nuts and Hardware Catalog Section
Eaton Specification Sheet - B449-4ZN
Feature: The B449-4ZN uses 13 gauge steel with an electro-plated finish, delivering high rigidity and robust corrosion resistance in demanding industrial environments. This construction reduces flex under cable bundles and extends service life compared with lighter brackets. Application: It is ideal for cable management along Eaton B-Line series strut channels in manufacturing floors, data centers, and process plants. Paragraph 2: Feature: Exact dimensions—2.37 in height, 4.5 in length, and 1.62 in width—provide a compact yet rigid mounting point that fits within crowded enclosures. This precise sizing minimizes space waste and supports consistent cable spacing across racks. Application: Use with standard channel nuts and hardware in Eaton B-Line systems for streamlined installation and predictable performance in new builds or retrofits. Paragraph 3: Feature: Cable saddle bracket design simplifies routing and anchoring of bundles, reducing cable abrasion and stress. This leads to fewer failures and better long-term reliability in heavy-duty automation lines. Application: Commonly deployed in process automation and industrial control environments where management of multi-cable runs is critical. Paragraph 4: Feature: Electro-plated finish and steel composition ensure compatibility with standard channel nuts and hardware, enabling easier sourcing and inventory planning. This compatibility lowers procurement risk and lead times for large projects. Application: Works with Eaton channel nuts, strut fittings, and accessories across channel-based support systems in manufacturing and data centers. Paragraph 5: Feature: Lightweight at 0.74 lb while retaining strength appropriate for mounting across multiple channels, which speeds installation and reduces labor costs during retrofit or expansion projects. This also simplifies handling during field assembly and inventory management. Application: Beneficial for multi-rack deployments, serviceability in data centers, and factory automation installations. Paragraph 6: Feature: Part of Eaton's B-Line series, with readily accessible specifications and datasheets, supports standardized purchasing and streamlined maintenance planning. Business Impact: Ensures traceability and predictable procurement for large-scale cable management deployments. Application: Aligns with channel nuts catalogs and hardware sections for consistent engineering across facilities.
Get a Quick Quote for a Eaton B449-4ZN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B449-4ZN?
Enquire Now
FAQs
To install the B449-4ZN, align the bracket with the strut channel, insert compatible nuts, and tighten using standard tools suitable for your channel system. The 2.37 in x 4.5 in x 1.62 in footprint keeps cables organized while preserving clearance for connectors. Ensure fasteners are suitable for the environment and maintain the electro-plated finish integrity.
Yes. The B449-4ZN is designed for Eaton B-Line series strut channels and works with standard channel nuts, fittings, and hardware listed in Eaton's channel nuts and hardware catalogs. For best results, verify hole spacing and mounting hardware against the catalog and select corrosion-resistant fasteners appropriate for your environment.
The 13 gauge steel provides high rigidity and strong load-bearing capability, while the electro-plated finish delivers corrosion resistance in humid or dusty industrial settings. This combination reduces maintenance intervals, extends service life, and lowers the total cost of ownership for cable management in harsh environments.
Yes. The bracket’s 13 gauge steel construction with an electro-plated finish is designed for durability in demanding environments, including data centers and factory floors. Its compatibility with standard B-Line channel hardware simplifies sourcing and maintenance while delivering reliable cable support and organization.
Investing in the B449-4ZN reduces rework and maintenance costs by providing a durable, corrosion-resistant mounting point that fits standard hardware. Over multiple racks, this standardization speeds installation, lowers procurement risk, and improves long-term reliability, contributing to faster project completion and lower lifecycle costs.
