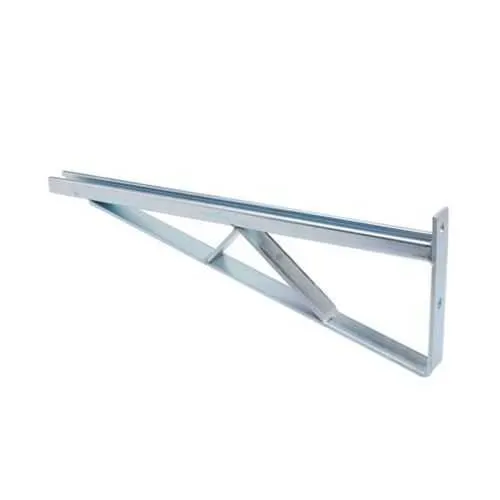

Eaton B494-24HDG Braced bracket - Bottom brace B42 channel
Part Number: B494-24HDG
Quick Summary
The Eaton B494-24HDG Braced bracket is a robust mounting solution for B-Line channel systems used in electrical enclosures. In complex installations, inadequate brackets can compromise alignment and safety; this unit offers precise dimensions and a secure bottom brace. Certifications are not listed for this part, with no SIL, CE, or IP ratings indicated, yet the hot-dipped galvanized steel delivers reliable corrosion resistance for harsh environments. With its compatibility with B42 channel and galvanized finish, it provides long-term reliability and reduces maintenance costs, while supporting scalable, modular electrical infrastructure in industrial settings.
Product Information
Extended Description
B494-24HDG Eaton: Eaton B-Line series bracket, 8.75" H x 24" L x 1.62" W, Steel, Hot-dipped galvanized, Bottom brace B42 channel
Product Name
Eaton B-Line series bracket
Catalog Number
B494-24HDG
UPC
781011577186
Product Length/Depth
24 in
Product Height
8.75 in
Product Width
1.62 in
Product Weight
6.35 lb
Certifications
Not Applicable
For channel type
Bottom brace B42 channel
Type
Braced single bracket
Finish
Hot-dipped galvanized
Material
Steel
Strut Fittings Catalog Section
Strut Fittings Catalog Section
Eaton Specification Sheet - B494-24HDG
Feature → Business Impact → Application: The hot-dipped galvanized steel finish delivers superior corrosion resistance, reducing maintenance cycles and replacement costs in outdoor or damp environments; this translates to lower total cost of ownership for industrial facilities and data centers where reliability is critical. Feature → Business Impact → Application: Precise 8.75 in height, 24 in length, and 1.62 in width ensure consistent alignment with standard B-Line channels, enabling faster installation and fewer field adjustments in panel assemblies. Feature → Business Impact → Application: Bottom brace B42 channel compatibility provides an additional mounting plane, increasing structural rigidity for mounted components such as cable trays, lighting fixtures, and control hardware in harsh environments. Feature → Business Impact → Application: Braced single bracket design reduces lateral movement under vibration, improving safety and equipment longevity in manufacturing lines and process plants. Feature → Business Impact → Application: Steel construction with standard finishes supports compatibility with channel nuts, U-bolts, ATR hardware, and common strut accessories, simplifying sourcing and reducing procurement complexity. Feature → Business Impact → Application: Weight and form factor balance ease of handling with mounting strength, enabling technicians to perform installations quickly without compromising load-bearing capacity in crowded electrical rooms.
