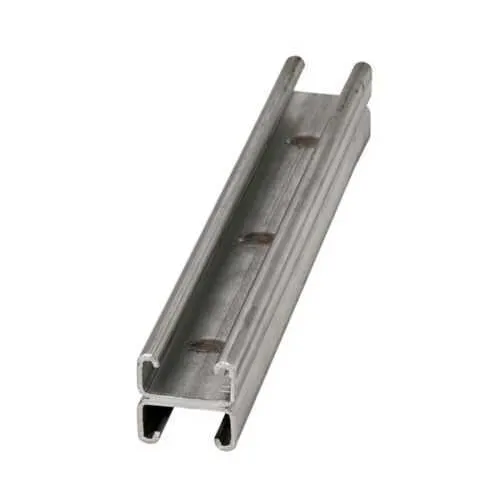

Eaton B52A-120HDG Strut Channel Finish 12 Gauge
Part Number: B52A-120HDG
Quick Summary
Eaton B52A-120HDG Strut Channel is a back-to-back welded support channel used in electrical installations. Installers often face corrosion, misalignment, and slow on-site assembly when selecting structural channels for crowded enclosures. Certifications are not listed for this item; the hot-dipped galvanized finish provides robust corrosion protection in harsh environments. This combination helps data centers, manufacturing floors, and panel installations achieve longer service life and predictable support performance. With a 12 in length, 1.625 in width and height, and 12 gauge steel, it maintains a compact footprint while enabling easier routing of cables and conduits. By selecting a standard B-Line component, you also simplify maintenance and future upgrades, reducing downtime and total cost of ownership.
Product Information
Extended Description
B52A-120HDG Eaton: Eaton B-Line series strut back-to-back welded channel, 0.81" H x 120" L x 1.62" W, Steel, Hot-dipped galvanized, 12 Gauge
Product Name
Eaton B-Line series strut back-to-back welded channel
Catalog Number
B52A-120HDG
UPC
781011254162
Product Length/Depth
12 in
Product Height
1.625 in
Product Width
1.625 in
Product Weight
2.324 lb
Certifications
Not Applicable
Channel type
B52
Finish
Hot-dipped galvanized
Material
Steel
Material gauge
12 Gauge
Channel and Combinations Catalog Section
Eaton Specification Sheet - B52A-120HDG
Dura-Green finish overview
Feature: 12 Gauge steel construction with 0.81" height, 12" length, and 1.62" width. Business Impact: Provides robust load capacity and a compact footprint ideal for tight installations. Application: Suitable for data centers, machine frames, and electrical panels where reliable support is required. This combination yields predictable performance and long service life, reducing rework and maintenance costs. Feature: Hot-dipped galvanized finish. Business Impact: Delivers superior corrosion resistance in damp or outdoor environments, lowering lifecycle costs and downtime. Application: Outdoor utility rooms, warehouse facilities, and coastal installations benefit from extended durability. Feature: Back-to-back welded channel design. Business Impact: Improves alignment consistency and simplifies accessory integration, speeding up installation. Application: Cable tray routing, conduit mounting, and equipment support in crowded enclosures. Feature: B52 channel type compatibility. Business Impact: Enables faster procurement and standardized installations with existing B-Line accessories. Application: Retrofit projects and scalable data-center builds. Feature: Weight and handling at 2.324 lb. Business Impact: Easy on-site handling and precise positioning during assembly, reducing installation time. Application: Field installations with limited labor resources. Feature: Documentation readiness. Business Impact: Access to catalogs and specification sheets supports compliant design and procurement workflows. Application: Engineering reviews, compliance checks, and project handoffs.
Get a Quick Quote for a Eaton B52A-120HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B52A-120HDG?
Enquire Now
FAQs
The B52A-120HDG is designed to pair with Eaton’s B-Line series strut channel and standard accessories. It supports back-to-back welded configurations and is compatible with common fittings, brackets, and connectors used in B-Line installations, enabling modular, scalable assemblies for electrical panels, enclosures, and machine supports.
Key specs include 12 in product length, 1.625 in product width, 1.625 in product height, and 12 gauge steel construction. The channel is hot-dipped galvanized for corrosion protection, weighing approximately 2.324 lb per piece, with a back-to-back welded design for rigid support in assemblies.
Yes. The finish is hot-dipped galvanized, providing enhanced corrosion resistance suitable for damp and outdoor environments. This makes it a reliable choice for electrical cabinet mounts, outdoor enclosures, and industrial installations where moisture exposure is a concern.
Technical documentation includes the Channel and Combinations Catalog Section, the Eaton Specification Sheet for B52A-120HDG, and a Dura-Green finish overview. These assets cover installation guidance, dimensions, finish details, and system compatibility to support design and procurement decisions.
The 12 gauge steel channel with hot-dipped galvanized finish delivers long-term durability, reducing replacement cycles. Standardized B-Line accessories streamline future upgrades, shorten maintenance windows, and lower downtime costs, delivering a clear total cost of ownership advantage for evolving electrical and mechanical installations.
