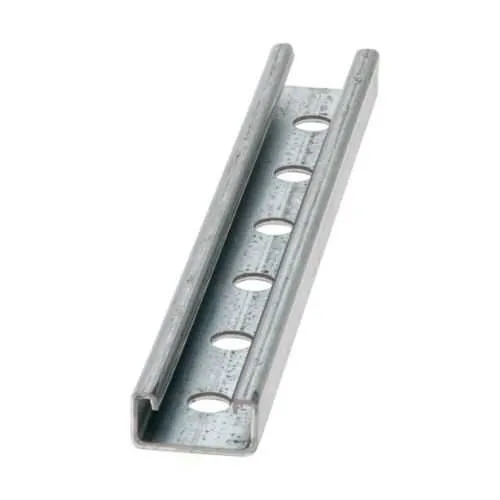

Eaton B52H17/8-120HDG Strut Channel - Galvanized
Part Number: B52H17/8-120HDG
Quick Summary
Eaton B52H17/8-120HDG Strut Channel enables fast, secure support systems for electrical and mechanical installations in industrial facilities. Many teams struggle with misalignment, corrosion, and downtime from aging support structures. While this B-Line channel uses 12-gauge steel with hot-dipped galvanizing for long service life, note that certifications are not listed for this exact SKU; verify regional approvals as needed. In practice, the channel’s 12 in length, precise H178 hole pattern, and compact 0.813 in height simplify mounting in crowded panels and cable routes. For procurement and installation, this component pairs with Eaton’s KwikSplice accessories and compatible fittings, delivering reliable performance, faster assembly, and reduced maintenance costs. It supports scalable layouts and future upgrades, aligning with lean manufacturing goals.
Product Information
Extended Description
B52H17/8-120HDG Eaton: Eaton B-Line series strut channel, 0.81" H x 120" L x 1.62" W, Steel, Hot-dipped galvanized, H178, 12 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B52H17/8-120HDG
UPC
781011251116
Product Length/Depth
12 in
Product Height
0.813 in
Product Width
1.625 in
Product Weight
1.121 lb
Certifications
Not Applicable
Channel type
B52
Hole pattern
H178
Finish
Hot-dipped galvanized
Material
Steel
Material gauge
12 Gauge
Strut Channel Identification Overview
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B52H17/8-120HDG
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: Steel, 12 gauge, hot-dipped galvanized finish provides superior corrosion resistance and extended service life in damp or oily plant environments. Business Impact: reduces corrosion-related downtime and lowers maintenance costs. Application: ideal for factory electrical racks, machine frames, and conduit supports in manufacturing and processing plants. Feature: Exact dimensions enable reliable fit with 12 in length, 0.813 in height, 1.625 in width, and hole pattern H178 for standard fasteners. Business Impact: faster installation, less rework, and improved alignment. Application: mounting across panels and along conveyors in automation systems. Feature: B52 channel type with 12 gauge delivers higher load-bearing capability for branches, trays, and equipment supports. Business Impact: supports heavier components without added complexity. Application: electrical racks, lighting, and control cabinet mounts. Feature: Compatibility with KwikSplice splices and Eaton accessories reduces assembly time and inventory needs. Business Impact: streamlined field modifications and quicker reconfigurations. Application: scalable plant layouts and modular automation installations. Feature: Lightweight, standardized 12 inch length simplifies logistics and on-site handling. Business Impact: lowers shipping costs and accelerates site assembly. Application: multi-bay installations and rapid upgrades across facilities.
Get a Quick Quote for a Eaton B52H17/8-120HDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B52H17/8-120HDG?
Enquire Now
FAQs
This B52 strut channel is designed for electrical and mechanical mounting in industrial facilities. It fits standard fasteners via the H178 hole pattern and works with Eaton’s KwikSplice accessories for rapid, modular installations such as racks, supports, and cable management paths. Ensure your enclosure or panel layout accounts for the 12 inch length and 0.813 inch channel height for proper clearance.
Hole pattern H178 provides a versatile, evenly spaced arrangement compatible with common fasteners used in industrial framing. This enables flexible positioning of brackets, fittings, and accessories along the channel, reducing alignment issues and rework. For best results, pair with compatible Eaton fittings and confirm hole spacing during layout reviews.
Yes. The B52H17/8-120HDG is a robust 12 gauge steel channel with hot-dipped galvanized finish, ideal for supporting cable trays, mounting electrical components, and device supports in factories and warehouses. Its corrosion resistance and standardized dimensions help ensure durable, compliant installations with long service life in harsh plant environments.
The product data lists certifications as Not Applicable for this SKU. In many regions, CE or other regional approvals are common requirements for electrical supports. If certifications are essential for your project, verify with Eaton or your distributor about regional approvals, or explore alternative SKUs in the B-Line range that carry explicit certifications.
Hot-dipped galvanized steel offers superior corrosion resistance, reducing maintenance frequency and downtime in damp or oily environments. The 12 gauge construction also provides dependable load support, enabling longer intervals between part replacements. Over time, this translates to lower lifecycle costs, faster installations, and safer, neater industrial mounting for automation and electrical systems.
