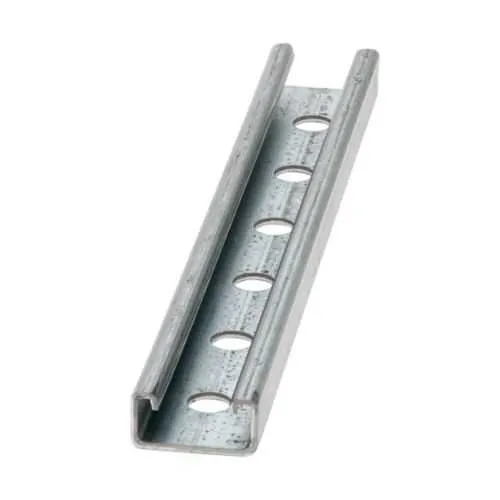

Eaton B52H17/8-240GRN Strut Channel - 12 Gauge Steel
Part Number: B52H17/8-240GRN
Quick Summary
Eaton B52H17/8-240GRN Strut Channel provides a modular mounting backbone for electrical and mechanical installations in industrial facilities. This design helps prevent misaligned supports and last-minute rework by offering reliable adjustability and a consistent rail profile. Certifications: Not Applicable; the product follows Eaton's B-Line series specifications, with a durable DURA GREEN finish and 12 gauge steel, supporting long service life. In practice, this translates to faster project delivery, easier compatibility with KwikSplice systems, and reduced maintenance costs for facility managers. Its 12 inch length, 0.813 inch height, and 1.625 inch width align tightly with common electrical and mechanical components, minimizing field trimming and rework.
Product Information
Extended Description
B52H17/8-240GRN Eaton: Eaton B-Line series strut channel, 0.81" H x 240" L x 1.62" W, Steel, DURA GREEN, H178, 12 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B52H17/8-240GRN
UPC
781011251253
Product Length/Depth
12 in
Product Height
0.813 in
Product Width
1.625 in
Product Weight
1.121 lb
Certifications
Not Applicable
Channel type
B52
Hole pattern
H178
Finish
DURA GREEN
Material
Steel
Material gauge
12 Gauge
Strut Channel Identification Overview
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B52H17/8-240GRN
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: B-Line system compatibility. Business Impact: Reduces engineering and field coordination time by enabling plug-and-play with standard fittings. Application: Control panels, cable trays, and equipment racks. Feature: 12 Gauge steel with DURA GREEN finish. Business Impact: Delivers corrosion resistance and a long service life, reducing maintenance cycles and replacement costs. Application: Harsh industrial environments, moisture exposure, and chemical areas. Feature: Precise dimensions and H178 hole pattern. Business Impact: Provides flexible mounting options and accurate alignment, minimizing misdrill or misplacement. Application: Data centers, manufacturing lines, and panel assemblies. Feature: Manageable weight at 1.121 lb per 12 in. Business Impact: Improves on-site handling, reduces installation fatigue, and allows longer spans between supports. Application: Field installations, retrofits, and modular upgrades. Feature: Comprehensive documentation and resources. Business Impact: Speeds design validation and procurement with readily accessible catalogs, spec sheets, and installation guides. Application: Engineering offices, contractors, and maintenance teams.
Get a Quick Quote for a Eaton B52H17/8-240GRN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B52H17/8-240GRN?
Enquire Now
FAQs
The B52H17/8-240GRN Strut Channel is designed to work within Eaton’s B-Line system, ensuring broad compatibility with KwikSplice splice plates, brackets, and supporting hardware. This compatibility reduces design iterations and simplifies procurement, enabling faster, error-free installations in electrical rooms and equipment racks.
Choose the DURA GREEN finished, 12 gauge steel B52 channel for durability in moisture-prone or industrial settings. The 0.81 in height and 1.625 in width provide a stable rail profile, while the H178 hole pattern supports flexible bracket spacing. Use appropriate end fittings and accessories to maintain corrosion resistance and system integrity.
Yes. Its 12 in length and standard B-Line dimensions offer predictable alignment for racks, panels, and cable management solutions. The lightweight yet strong steel construction supports overhead and floor-mounted applications, while the DURA GREEN finish helps resist corrosion in data centers, manufacturing floors, and other critical facilities.
A range of Eaton resources are available, including the Strut Channel Identification Overview, the Strut Systems Full Catalog, and the Eaton Specification Sheet for the B52H17/8-240GRN. Installation sheets for KwikSplice components and the B-Line catalog sections streamline design validation and procurement workflows.
Expect faster installation and fewer field adjustments thanks to a modular, standardised rail system. The durable 12 gauge steel with DURA GREEN finish reduces maintenance and replacement costs over time, while wide compatibility with fittings and accessories minimizes rework and design errors, delivering a lower total cost of ownership.
