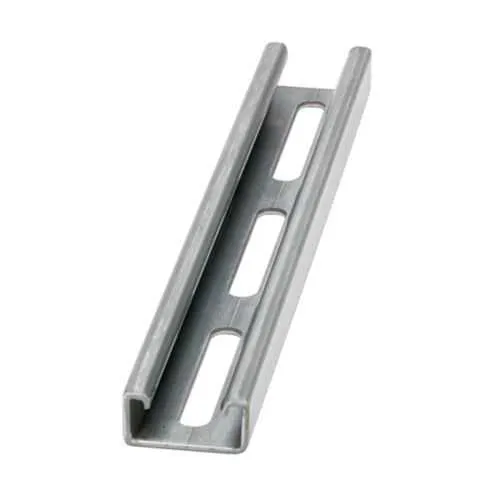

Eaton B52S-29 7/8GLV Strut Channel - 12 Gauge
Part Number: B52S-29 7/8GLV
Quick Summary
Eaton B-Line strut channel provides a modular mounting framework for electrical and mechanical installations. Installers frequently face misfit fittings, corrosion risk, and time-consuming field fabrication that drives project delays. Certifications are listed as Not Applicable for this model; however, the construction uses pre-galvanized, 12-gauge steel with precise dimensions (0.81 in height, 29.87 in length, 1.62 in width) to support reliable installations. This combination delivers long-term durability while enabling fast, repeatable mounting workflows. By leveraging common B-Line components and compatible accessories, engineers can reduce part variety, improve stock control, and accelerate project timelines without sacrificing performance.
Product Information
Extended Description
B52S-29 7/8GLV Eaton: Eaton B-Line series strut channel, 0.81" H x 29.87" L x 1.62" W, Steel, Pre-galvanized, S, 12 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B52S-29 7/8GLV
UPC
799038657446
Product Length/Depth
29.87 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
2.88743333 lb
Certifications
Not Applicable
Channel type
B52
Hole pattern
S
Finish
Pre-galvanized
Material
Steel
Material gauge
12 Gauge
Strut Channel Identification Overview
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray System Tab and Lock Trapeze Support
KwikSplice Cable Tray System Tab and Lock Trapeze Support
Eaton Specification Sheet - B52S-29 7/8GLV
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 12 Gauge steel with pre-galvanized finish. Business Impact: Enhanced corrosion resistance and structural integrity for long service life in industrial environments. Application: Supports heavy loads in manufacturing and electrical installations with minimal maintenance. Feature: Precise dimensions (0.81 in H, 29.87 in L, 1.62 in W). Business Impact: Predictable fit and simplified layout planning, reducing field trimming and fabrication time. Application: Standardized racking and mounting of panels, enclosures, and accessories. Feature: B52 channel type with S hole pattern. Business Impact: Flexible compatibility with a wide range of fittings, braces, and accessories, enabling quick reconfiguration. Application: Cable management, device mounting, and equipment support across modular systems. Feature: 12 Gauge steel construction. Business Impact: Higher load carrying capacity and rigidity, lowering deflection in demanding installations. Application: Industrial control rooms, mechanical rooms, and outdoor-rated installations where robust support is needed. Feature: Not Applicable certifications. Business Impact: Procurement clarity and alignment with project specs where formal certifications are not required. Application: General industrial applications with standard compliance expectations. Feature: Compatibility with Eaton strut accessories (catalogs and installation guides). Business Impact: Streamlined procurement and faster install with verified third-party accessories. Application: KwikSplice trays, tab and lock trapeze, and related components for integrated systems.
Get a Quick Quote for a Eaton B52S-29 7/8GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B52S-29 7/8GLV?
Enquire Now
FAQs
The B52S-29 7/8GLV is designed to pair with conventional Eaton B-Line fittings and standard strut hardware. Its S hole pattern supports common clamps, braces, and splice accessories, enabling quick alignment and secure mounting. For best results, confirm compatibility with existing channel catalogs and use matched fasteners to prevent misalignment during assembly.
Key specs include 29.87 in length, 0.81 in height, and 1.62 in width, with a 12 Gauge steel construction finished in pre-galvanized coating. The channel type is B52 with an S hole pattern, catalog number B52S-29 7/8GLV, and a weight around 2.89 lb per piece. This combination supports robust mounting with predictable fit.
The product features pre-galvanized steel suitable for damp settings, but there is no IP rating or outdoor-specific certification listed. For exposed outdoor installations, verify compatibility with environmental conditions and consider additional protective finishes or enclosure housings as needed to maximize longevity.
Compatible accessories include Eaton KwikSplice and other strut-system fittings, tab and lock trapeze supports, and various channel combinations outlined in Eaton catalogs. This compatibility enables quick splicing, secure bracing, and streamlined installation workflows across standard electrical and mechanical mounting schemes.
Adopting the B52S-29 7/8GLV standardizes mounting components, reduces field fabrication time, and improves inventory control. The robust 12 gauge, pre-galvanized steel increases service life and lowers maintenance cycles, delivering lower lifecycle costs and faster project completion in manufacturing, facilities, and data-center environments.
