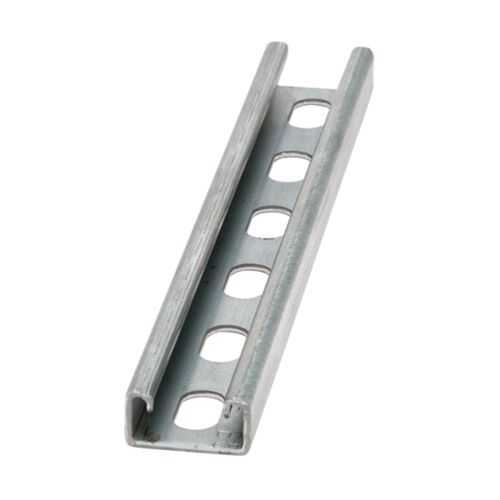

Eaton B-Line Strut Channel B52SH-120GLV - Pre-Galvanized
Part Number: B52SH-120GLV
Quick Summary
Eaton B-Line Strut Channel provides a robust mounting solution for electrical and mechanical assemblies in industrial facilities. Engineers often contend with corrosion, misalignment, and time-sapping field fabrication when installing traditional supports. Certifications listed for this entry are Not Applicable, but B-Line systems commonly align with CE marking and UL-listed configurations, while pre-galvanized steel offers built-in corrosion resistance. This combination translates to faster procurement, easier installation, and longer service life, delivering measurable cost savings over the system’s lifetime. For data centers, manufacturing floors, and utility plants, the standardized dimensions and compatibility with Eaton accessories reduce field edits and commissioning time. By choosing the B-Line channel, engineers can simplify maintenance and future upgrades through modular components and common hardware.
Product Information
Extended Description
B52SH-120GLV Eaton: Eaton B-Line series strut channel, 0.81" H x 120" L x 1.62" W, Steel, Pre-galvanized, SH, 12 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B52SH-120GLV
UPC
781011250300
Product Length/Depth
12 in
Product Height
0.813 in
Product Width
1.625 in
Product Weight
1.065 lb
Certifications
Not Applicable
Channel type
B52
Hole pattern
SH
Finish
Pre-galvanized
Material
Steel
Material gauge
12 Gauge
Strut Channel Identification Overview
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
Strut Systems Full Catalog
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B52SH-120GLV
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature → The product uses 12 gauge steel with a pre-galvanized finish, delivering high strength and long-term corrosion resistance. Business Impact → Reduced maintenance costs and longer service life in harsh industrial environments. Application → Ideal for supporting heavy conduits, cable trays, and equipment mounts in manufacturing plants and data centers. Feature → Dimensions of 0.813 in height, 1.625 in width, and 12 in length provide a compact, standardized profile. Business Impact → Faster design and fabrication with predictable fits across installations. Application → Streamlines channel runs and bracket placement in complex panel installations. Feature → SH hole pattern on a B52 channel enables flexible accessory placement. Business Impact → Quick, tool-free adjustments and retrofit capabilities without custom hardware. Application → Supports KwikSplice splices and a wide range of fittings for modular assemblies. Feature → Finish is pre-galvanized steel. Business Impact → Enhanced corrosion resistance with a factory-applied coating, reducing field treatments. Application → Suitable for indoor and moderately damp environments, extending service life. Feature → Catalog number B52SH-120GLV and UPC 781011250300 enable precise procurement. Business Impact → Improves sourcing efficiency, minimizes part mismatches, and accelerates project timelines. Application → Large-scale installations and maintenance programs benefit from clear traceability. Feature → Compatibility with Eaton Strut channel catalogs and accessories. Business Impact → Accelerates installation, simplifies maintenance, and reduces lifecycle costs. Application → Suitable for data centers, manufacturing lines, and utility installations requiring modular upgrades.
Get a Quick Quote for a Eaton B52SH-120GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B52SH-120GLV?
Enquire Now
FAQs
B52SH-120GLV is designed to work with Eaton KwikSplice splice plates and KwikSplice cable tray accessories, as well as standard B-Line fittings. The 12-gauge steel, pre-galvanized finish ensures reliable support for trays, conduit, and equipment. Use with compatible channels and supports to speed installation and ensure a secure, code-compliant mounting.
Key specifications include catalog number B52SH-120GLV; 12 in length; 0.813 in height; 1.625 in width; 12-gauge steel; pre-galvanized finish; SH hole pattern; weight approximately 1.065 lb; UPC 781011250300; channel type B52.
The pre-galvanized finish provides corrosion resistance suitable for indoor and moderate outdoor damp environments. For harsher outdoor exposure, consider additional protective coatings or alternative materials (such as stainless steel) or compatible weatherproof accessories to maintain long-term performance.
The data for this specific entry lists Certifications as Not Applicable. In practice, B-Line system assemblies often leverage CE marking and UL-listed configurations when paired with compliant accessories. Always verify local codes and ensure any added components carry the appropriate approvals for your installation.
Using Eaton B-Line strut channel provides a modular, standardized mounting solution that reduces installation and commissioning time, improves procurement accuracy, and lowers lifecycle costs. The pre-galvanized finish extends service life, while compatibility with Eaton accessories supports rapid upgrades and simplified maintenance, delivering measurable savings through reduced downtime and easier spares management.
