Eaton B52SH-20HDG Strut Channel - 12 Gauge, Hot-Dipped Galvanized
Part Number: B52SH-20HDG
Quick Summary
Eaton B52SH-20HDG Strut Channel provides rigid support for electrical and mechanical installations. Projects often struggle with misalignment, corrosion risk, and time-consuming mounting that slows progress. Certifications listed are not applicable for this model; always verify CE, SIL, or IP expectations against Eaton datasheets for your project. This channel uses durable steel with a hot-dipped galvanized finish and a 12 gauge build to withstand demanding environments. It also offers straightforward compatibility with the B-Line strut system, SH hole pattern, and standard hardware to simplify installation. The 20 inch length with a 0.81 inch height optimizes space in tight cabinets and along process lines, delivering reliable, long-term value.
Product Information
Extended Description

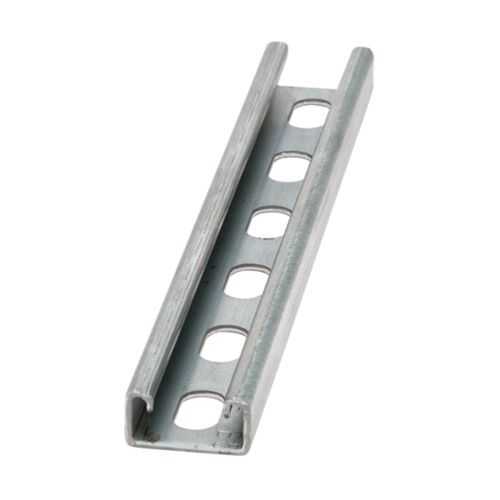

B52SH-20HDG Eaton: Eaton B-Line series strut channel, 0.81" H x 20" L x 1.62" W, Steel, Hot-dipped galvanized, SH, 12 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B52SH-20HDG
UPC
782051472790
Product Length/Depth
20 in
Product Height
0.81 in
Product Width
1.62 in
Product Weight
1.98333333 lb
Certifications
Not Applicable
Channel type
B52
Hole pattern
SH
Finish
Hot-dipped galvanized
Material
Steel
Material gauge
12 Gauge
Strut Channel Identification Overview
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B52SH-20HDG
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 12 gauge steel with a hot-dipped galvanized finish delivers high strength and durable corrosion resistance in demanding environments. Business Impact: This reduces maintenance costs, extends service life, and minimizes unexpected downtime in facilities where moisture, salts, or wash-downs are common. Application: Ideal for supporting heavy electrical gear, motor starters, panel assemblies, and cable-management runs along production lines and in outdoor installations where exposure is a factor. Feature: SH hole pattern combined with the B52 channel type enables fast, secure attachment using standard hardware. Business Impact: It shortens installation times, maintains precise alignment, and reduces field rework across long runs of channels. Application: Use with conventional fasteners and KwikSplice splice plates to create reliable, multi-point support structures in control rooms, switchgear areas, and equipment bays. Feature: 20 inch length and 0.81 inch height optimize space utilization and channel density in compact enclosures. Business Impact: This improves cabinet depth, simplifies cable routing, and leaves room for future expansions without rework. Application: Suitable for modular mounting in electrical panels, machine frames, and overhead support rails in manufacturing environments where space is at a premium. Feature: Approximately 2 lb weight provides manageable handling for installation crews. Business Impact: Reduces labor time during installation, lowers physical strain on workers, and speeds site commissioning when multiple runs are required. Application: Helpful for large installations with many channels or tight access zones, enabling efficient on-site assembly and rework reduction. Feature: Seamless compatibility with Eaton B-Line strut system and related accessories. Business Impact: Streamlines procurement, minimizes SKU fragmentation, and improves maintenance planning across sites by maintaining a common mounting platform. Application: Adopt across multiple facilities to achieve standardized racking, consistent cable-management layouts, and faster replacements when parts need to be swapped.
