Eaton B52SH-240GLV Strut Channel - Pre-galvanized
Part Number: B52SH-240GLV
Quick Summary
B52SH-240GLV Eaton B-Line strut channel provides versatile mounting in electrical and mechanical installations. Engineers often struggle with corrosion resistance, compatibility with existing hardware, and longer install times in demanding environments. Certifications listed for this item are Not Applicable; in many projects, CE, IP, or SIL compliance is required, so verify applicable standards with your regional specs and Eaton documentation. This page highlights the B52SH-240GLV features and the value of a pre-galvanized steel strut channel, while emphasizing fast, reliable installations and compatibility with standard accessories within typical industrial automation applications.
Product Information
Extended Description

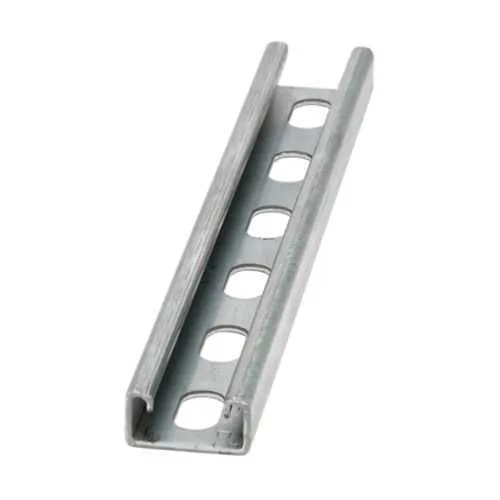

B52SH-240GLV Eaton: Eaton B-Line series strut channel, 0.81" H x 240" L x 1.62" W, Steel, Pre-galvanized, SH, 12 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B52SH-240GLV
UPC
781011250355
Product Length/Depth
12 in
Product Height
0.813 in
Product Width
1.625 in
Product Weight
1.065 lb
Certifications
Not Applicable
Channel type
B52
Hole pattern
SH
Finish
Pre-galvanized
Material
Steel
Material gauge
12 Gauge
Strut Channel Identification Overview
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B52SH-240GLV
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 12 inch length with SH hole pattern and 0.813 inch height, 1.625 inch width, 12 gauge steel, pre-galvanized finish. Business Impact: Delivers robust support while reducing trimming and field modifications, enabling quicker project completion and lower labor cost. Application: Ideal for short-span installations in control panels, equipment mounts, and cable management runs where precise alignment and durable support are critical. Feature: B52 channel type and SH hole pattern standardization. Business Impact: Improves compatibility with common fittings and KwikSplice accessories, reducing procurement complexity and inventory variety. Application: Streamlines retrofit projects and new installs across electrical and mechanical enclosures. Feature: Light yet sturdy construction at 1.065 lb per 12 in. Business Impact: Easier handling for on-site installation, lowering fatigue during mounting and enabling safer, faster assembly. Application: Suitable for overhead and wall-mounted supports in factory floors and data centers. Feature: Pre-galvanized finish. Business Impact: Provides corrosion resistance in moderate environments with minimal maintenance, supporting longer asset life. Application: Ideal for indoor industrial environments and protected outdoor zones when paired with appropriate coatings.
Get a Quick Quote for a Eaton B52SH-240GLV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton B52SH-240GLV?
Enquire Now
FAQs
B52SH-240GLV uses the SH hole pattern and the common B-Line strut channel geometry, which aligns with standard KwikSplice and accessory kits. This compatibility simplifies part selection, reduces lead times, and supports faster on-site assembly for cable trays, supports, and enclosure mounting.
The channel is 12 inches long, 0.813 inches tall, and 1.625 inches wide. It is manufactured from 12 gauge steel and weighs 1.065 pounds per piece, with a pre-galvanized finish for corrosion resistance and durable service in indoor industrial settings.
The product features a pre-galvanized steel finish, offering corrosion resistance suitable for indoor or protected outdoor environments. For harsher outdoor exposure, consider additional coatings such as Eaton’s Dura-Green finish and follow project-specific environmental requirements.
According to the specification, Certifications are Not Applicable for this item. If your project requires CE, IP, or SIL ratings, confirm the applicable standards with your purchasing and engineering teams and consult the official Eaton datasheet (B52SH-240GLV.pdf) for any updates.
The 12 in length with standard SH hole pattern and 12 gauge steel enables quick cutting and straightforward mounting with common hardware. Its relatively light weight (1.065 lb per piece) reduces handling effort, while compatibility with widely used strut accessories accelerates installation and minimizes inventory complexity, contributing to lower total project costs.
