Eaton B52SH-240HDG Strut Channel - 12 Gauge
Part Number: B52SH-240HDG
Quick Summary
The Eaton B52SH-240HDG strut channel is a versatile mounting rail designed for reliable electrical and mechanical support across panels, racks, and enclosures. Engineers often struggle with corrosion-prone installations and slow, incompatible mounting hardware that delays projects. This product lists Certifications as Not Applicable, while offering a hot-dipped galvanized finish for enhanced durability in challenging environments. The B-Line series channel is built from steel and uses a 12-gauge section with the SH hole pattern, delivering strong support with straightforward compatibility. For vendors and integrators, this combination translates to lower maintenance costs and faster installation, while ensuring robust performance in standard industrial settings. Use with compatible Eaton accessories to maximize efficiency and system reliability.
Product Information
Extended Description

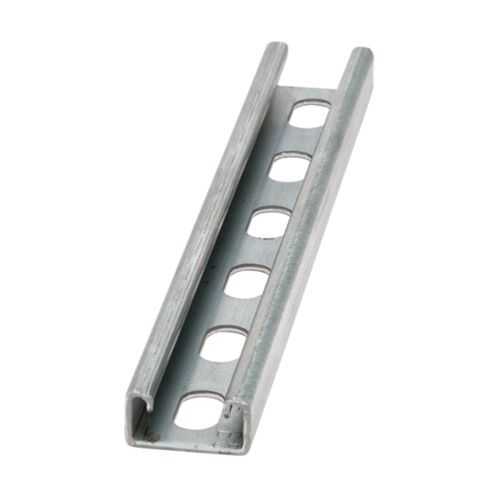

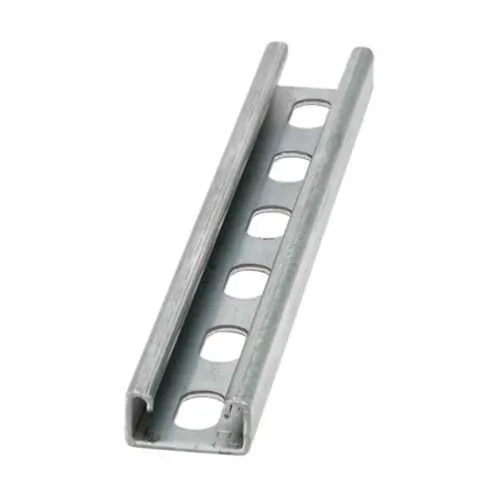

B52SH-240HDG Eaton: Eaton B-Line series strut channel, 0.81" H x 240" L x 1.62" W, Steel, Hot-dipped galvanized, SH, 12 Gauge
Product Name
Eaton B-Line series strut channel
Catalog Number
B52SH-240HDG
UPC
781011250164
Product Length/Depth
12 in
Product Height
0.813 in
Product Width
1.625 in
Product Weight
1.067 lb
Certifications
Not Applicable
Channel type
B52
Hole pattern
SH
Finish
Hot-dipped galvanized
Material
Steel
Material gauge
12 Gauge
Strut Channel Identification Overview
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Cable Tray USA Stocking List Flyer
KwikSplice Splice Plate Instruction Sheet
KwikSplice Splice Plate Instruction Sheet
Eaton Specification Sheet - B52SH-240HDG
Dura-Green finish overview
KwikSplice Cable Tray Canada Stocking List Flyer
Feature: 12 Gauge steel construction provides high strength-to-weight ratio → Business Impact: supports heavy mounting loads with reduced deflection, enabling safer, longer-lasting installations in electrical and mechanical systems → Application: electrical panels and overhead support in commercial environments. Feature: Hot-dipped galvanized finish delivers superior corrosion resistance → Business Impact: extends service life in dusty, humid, or outdoor environments, lowering replacement and maintenance costs → Application: outdoor enclosures and exposed installations. Feature: SH hole pattern and B52 channel type enable flexible accessory attachment → Business Impact: simplifies zoning and reconfiguration, reducing commissioning time and downtime → Application: modular racking, cable tray supports, and equipment mounting. Feature: Compact 0.813 in height and 1.625 in width with 12 in length → Business Impact: compact footprint allows dense rack designs and adaptable layouts without sacrificing strength → Application: space-constrained control rooms and panel boards. Feature: 1.067 lb weight per piece provides easy handling during installation → Business Impact: lowers labor effort and supports quicker onboarding of procurement teams → Application: rapid deployments in retrofit projects. Feature: Certifications listed as Not Applicable, with standard industry compatibility → Business Impact: avoids vendor lock-in and ensures seamless integration with Eaton KwikSplice and related strut system components → Application: mixed-brand or Eaton-unified installations for scalable infrastructure.
